Backyard Play Systems 4431 - Fort Construction: Connect Frame Sections

18

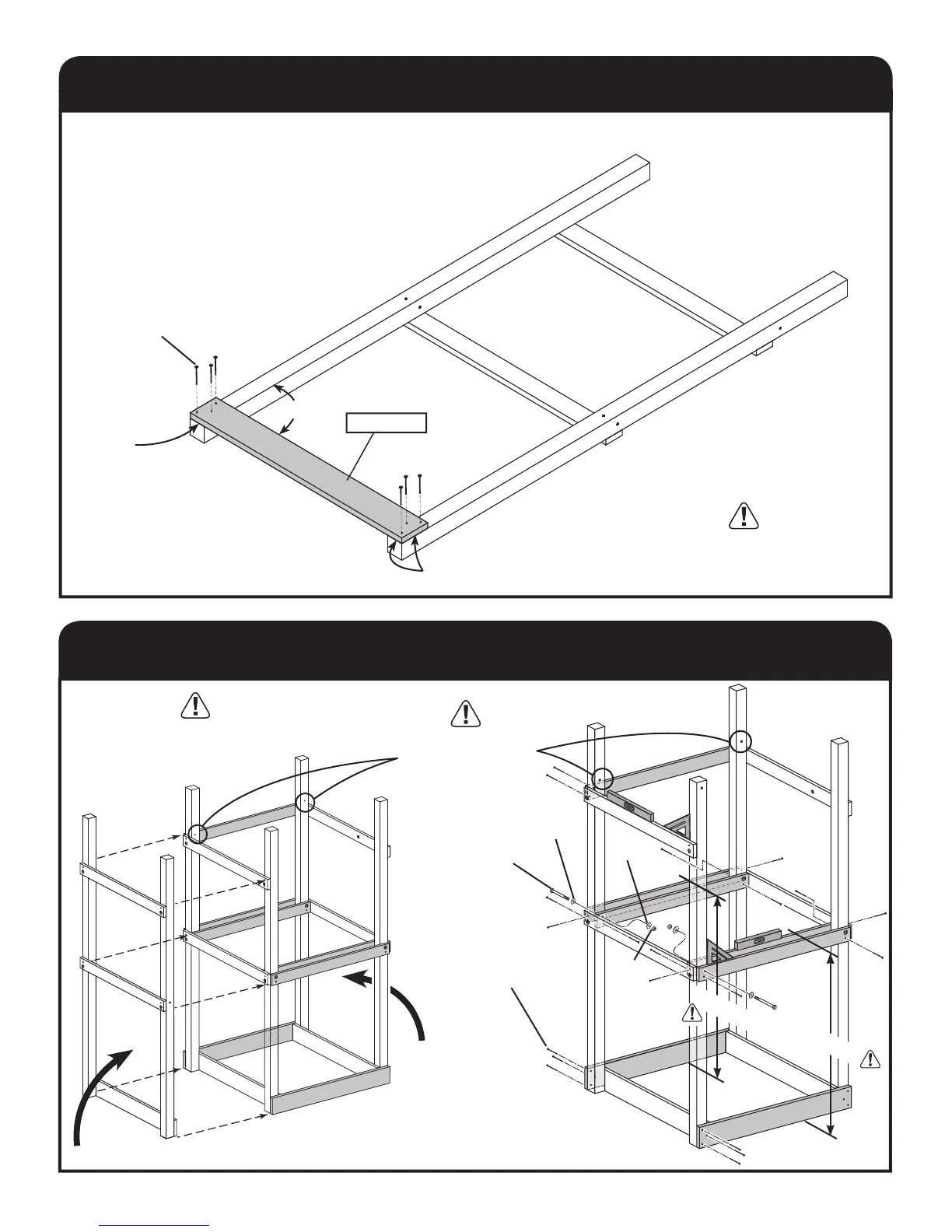

FORT
BOTTOM FRAME BRACE
Align brace with pre-drilled holes.
FLIP ASSEMBLY OVER TO INSTALL BOTTOM BRACE.
Flush
Flush
2-1/2"
Wood
Screw
x1
2969-CC
3/4 x 5-3/8 x 45-1/8"
Ensure all bracing is square before
installing wood screws.
90°
x6
FORT
CONNECT FRAME SECTIONS
Align braces with pre-drilled holes.
Lock
Nut
Flat
Washer
ENSURE THESE
HOLES ARE ON
THIS SIDE.
x4
x2
x2
Flat Washer
5" Hex Bolt
2-1/2"
Wood Screw
x20
47-1/4"
47-1/4"
