Backyard Play Systems 4431 - Fort Construction: Swing Beam Support; Fort Construction: Baluster Supports

21
FORT
BALUSTER SUPPORTS
Flush at all corners
Bottom rests ush
on lower brace
x6
x1
2-1/2" Wood Screws
2" Wood
Screw
RIGHT SIDE
FRONT SIDE
FORT

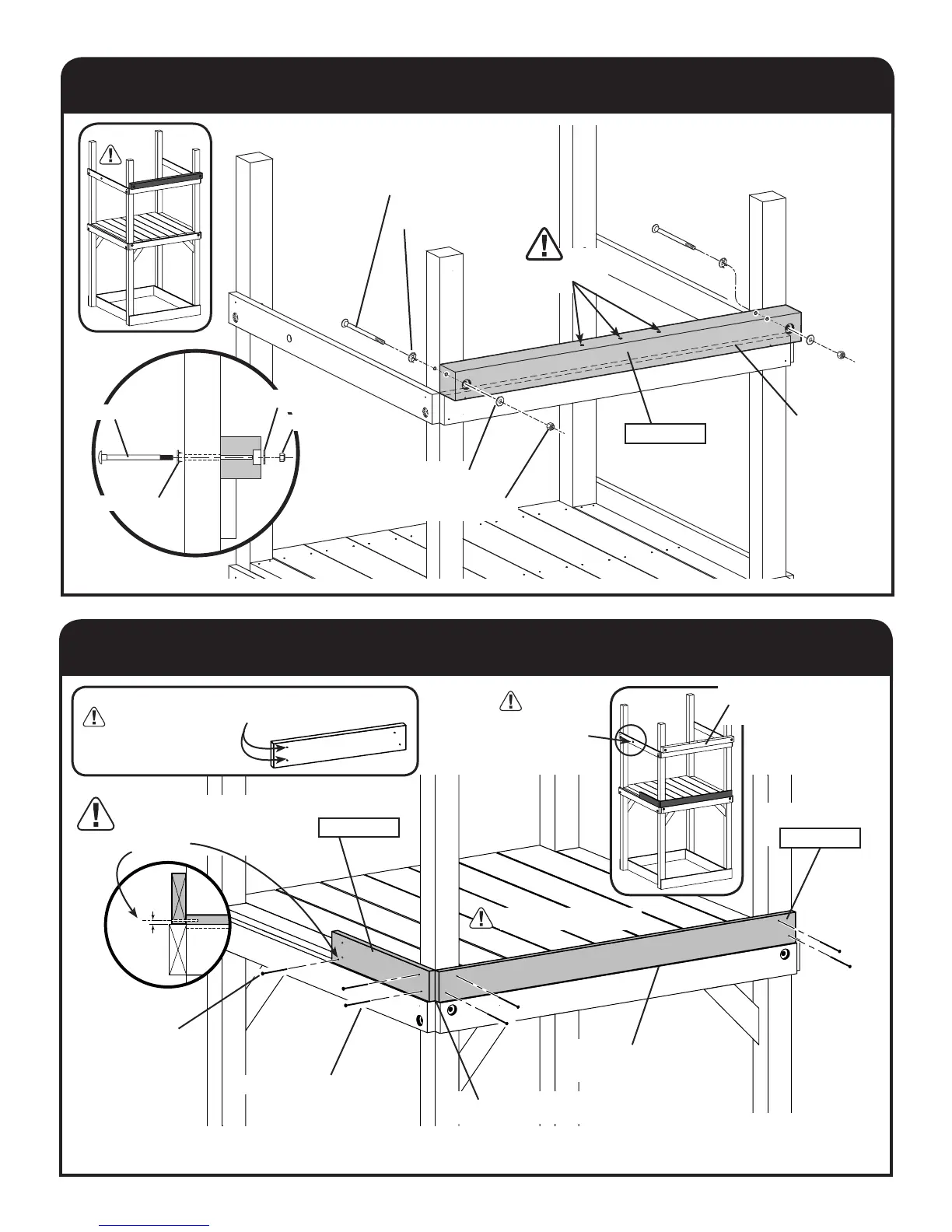

SWING BEAM SUPPORT
Small Holes UP
6" Carriage Bolt
Flat Washer
Lock Nut
Torque Washer
x2
x2
x1
2505-CC
3 x 3 x 45-1/8"
SET ON RAIL
Look for pre-drills
Flat Washer
Lock Nut
Torque Washer
6" Carriage Bolt
x1
3/4 x 3-3/8 x 45-1/8"
2973-CC
x1
3/4 x 3-3/8 x 19-1/4"
1814-CC
Note this
rope-hole
location
SWING BEAM
SUPPORT
Part 1814-CC is used in several applications.
Do not use the holes on the left side.
1814-CC
Pre-Drill 1/8" hole 3/8"
up from lower edge of
1814-CC.
3/8"
