Backyard Play Systems 4431 - Fort Construction: Upper Braces

22

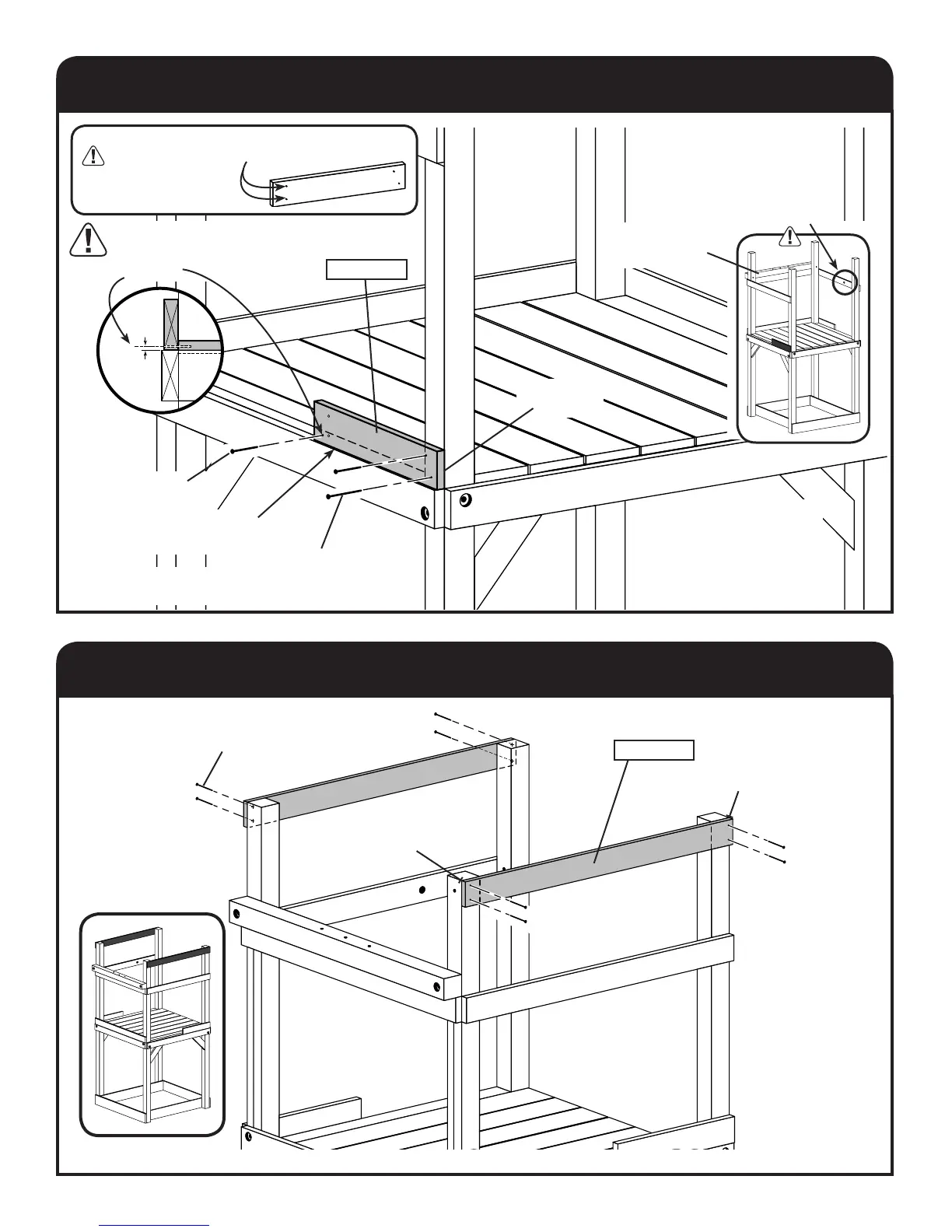

FORT
FORT
BALUSTER SUPPORT
UPPER BRACES
x1
2" Wood Screw
Flush
Flush
Flush
Bottom rests ush
on lower brace.
x2
2-1/2" Wood Screw
x8
2-1/2" Wood Screw
x2
3/4 x 3-3/8 x 45-1/8"
1812-CC
x1
3/4 x 3-3/8 x 19-1/4"
1814-CC
SWING BEAM
SUPPORT
Part 1814-CC is used in several applications.
Do not use the holes on the left side.
1814-CC
Note this
rope-hole
location
BACK SIDE
LEFT SIDE
Pre-Drill 1/8" hole 3/8"
up from lower edge of
1814-CC.
3/8"
