Backyard Play Systems 4431 - A-Frame Assembly: 90° Plate; Swing Beam: Angled Plates

35

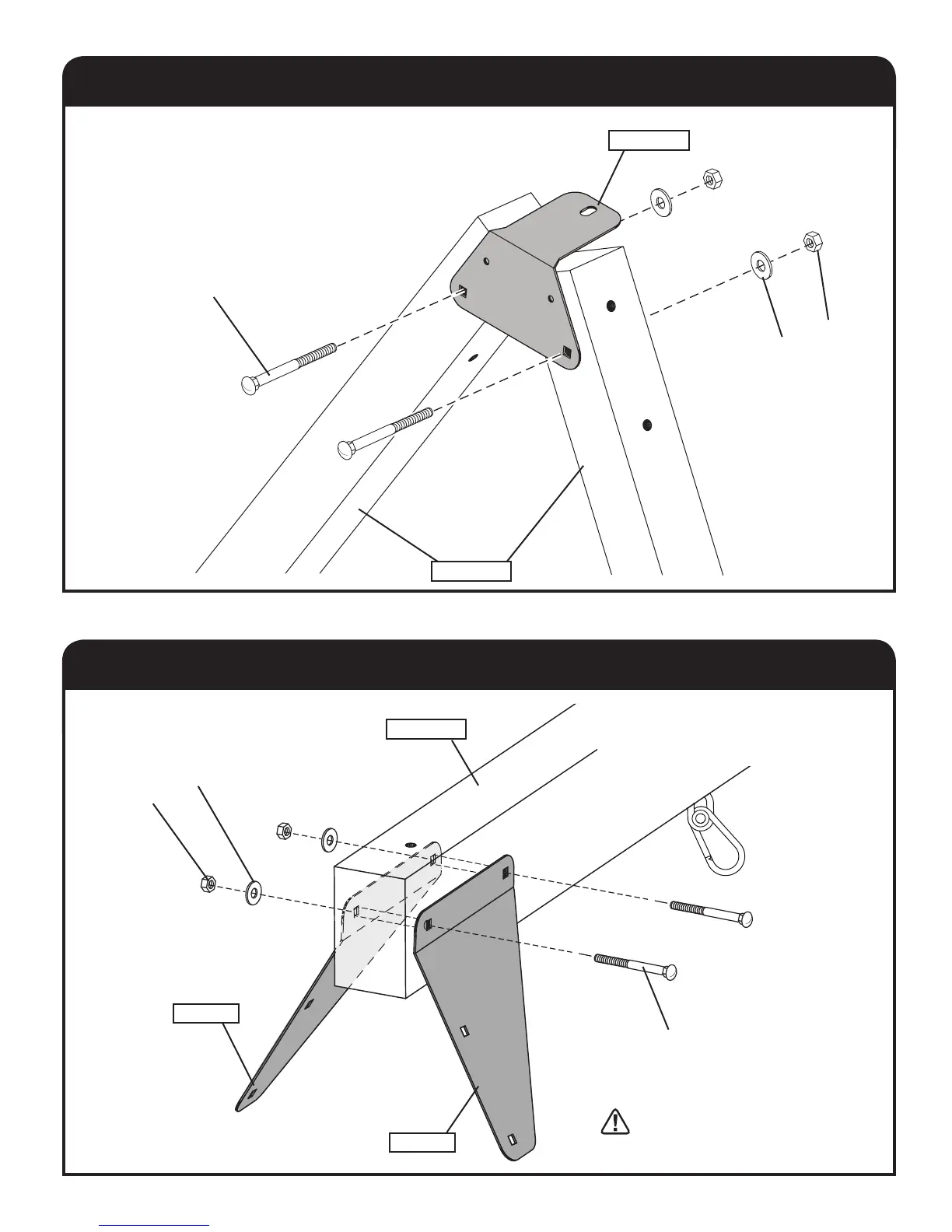

A - FRAME
90
o
PLATE
3-3/4" Carriage Bolt
Lock Nut
Flat Washer
x2
2525-CC
2449
x1
SWING BEAM ANGLED PLATES
4-1/2" Carriage Bolt
Flat Washer
Lock Nut
x2
x2
x1
3-3/8 x 5-3/8 x 95"
2502-CC
2448
2447
x1
x1
DO NOT FULLY TIGHTEN
CARRIAGE BOLTS AT THIS TIME
NOTE: You may need to tap bolts with
hammer to get though holes.
Clean all debris from bolt threads
before installing lock nuts
