Backyard Play Systems 4431 - Fort: Window Installation

40
WINDOW
FORT
ROCK WALL SIDE BALUSTERS
FORT
3/4"
Wood Screws
x10
x1
2990

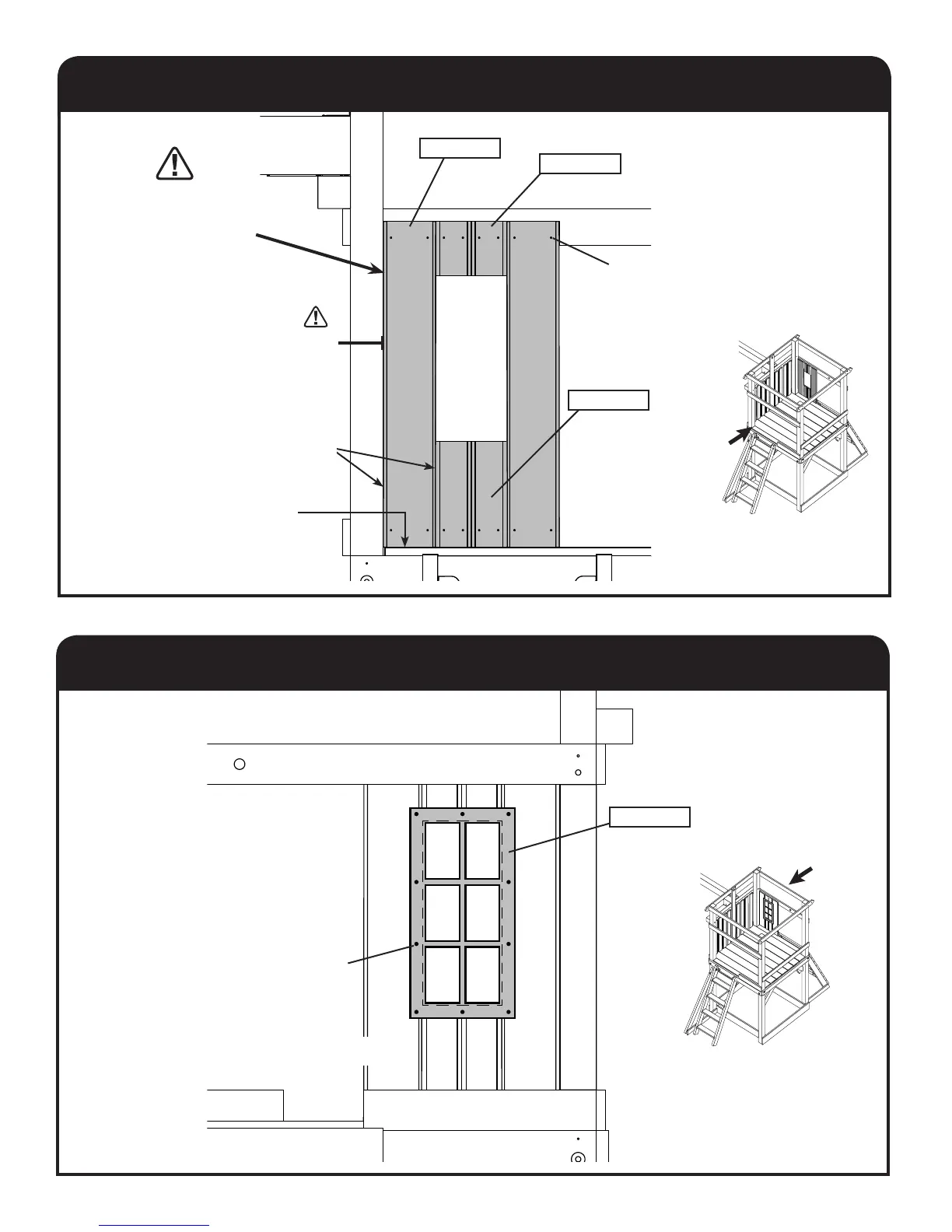

Place window centered
over opening and secure
using 3/4" screws.
OUTSIDE VIEW
VIEW
30 mm
Wood Screws
x16
x2
1811-CC
5/8 x 3-1/4 x 29-3/4"
x2
1810-CC
5/8 x 3-1/4 x 9-1/2"
x2
1809-CC
5/8 x 4-7/8 x 29-3/4"
Install end-baluster rst:
Flush tightly against
fort 3x3" corner post
and 5/8" above
deck boards.
BEGIN
HERE
Flush
(ALL)
3x3"
INSIDE VIEW
VIEW
Flush
