Backyard Play Systems 4431 - Terrace Assembly: Deck Planks (Part 1)

48

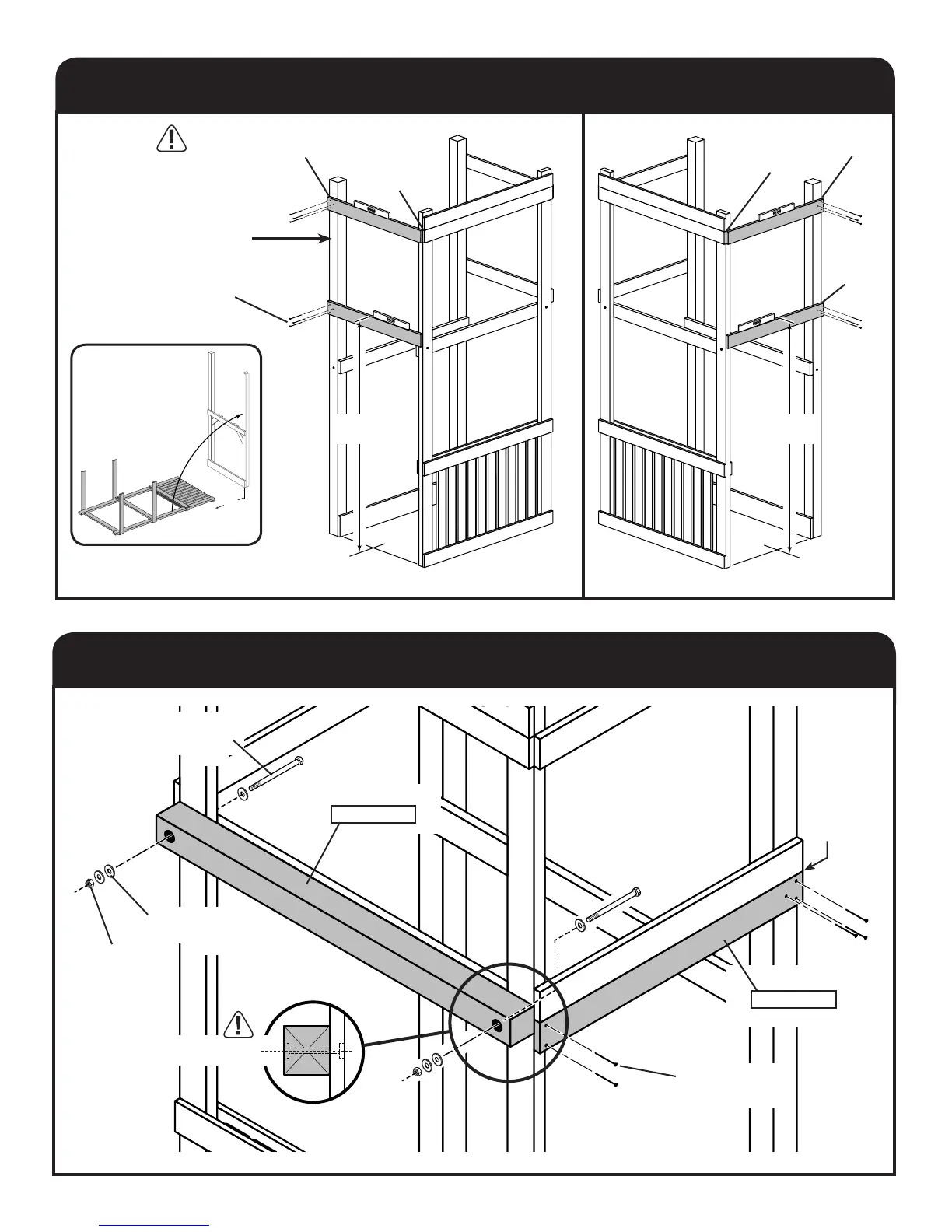

TERRACE
ASSEMBLE
TERRACE
SLIDE SUPPORT
LEFT
SIDE
RIGHT
SIDE
Approx.
28"
TILT FRAME UP
TO INSTALL TERRACE
Attach Terrace to
playset tower frame.
2-1/2" Wood Screws
x12
Flush
Flush
62" 62"
LEVEL
LEVEL
LEVEL
LEVEL
Flush
Flush
Flush
Ensure side rails are level
before installing wood
screws.
Flush
2-1/2" Wood
Screws
Flat Washer
Lock Nut
5" Hex Bolt
x5
x2
x2
x6
x1
3/4 x 3-3/8 x 33-1/2"
1821-CC
x1
3 x 3 x 45-1/8"
1824-CC
Align holes
