Backyard Products GABLE - 10 x 12 FLOOR FRAME ASSEMBLY; REQUIRED PARTS FOR 10 x12 FLOOR FRAME; STEP-BY-STEP 10 x12 FLOOR FRAME INSTRUCTIONS

DOOR
11
3
2
1
3" (7,6 cm)
Secure with (2) 3" nails at each mark. Go to page 14.
Orient parts as shown on at surface to build back section 2.
Measure and mark each dimension from end of boards.
Follow steps 1-3 on page 10 to build front 10' x 8' oor section 1.
PARTS REQUIRED:
Flush
at ends.
Center on
marks.
45"
(114,3 cm)
48 "
(122 cm)
48 "
(122 cm)
1-1/2"
(3,8 cm)
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
72"
(183 cm)
x2
x28
x2
x6
10 x 12' FLOOR FRAME (Not Included)
BEGIN

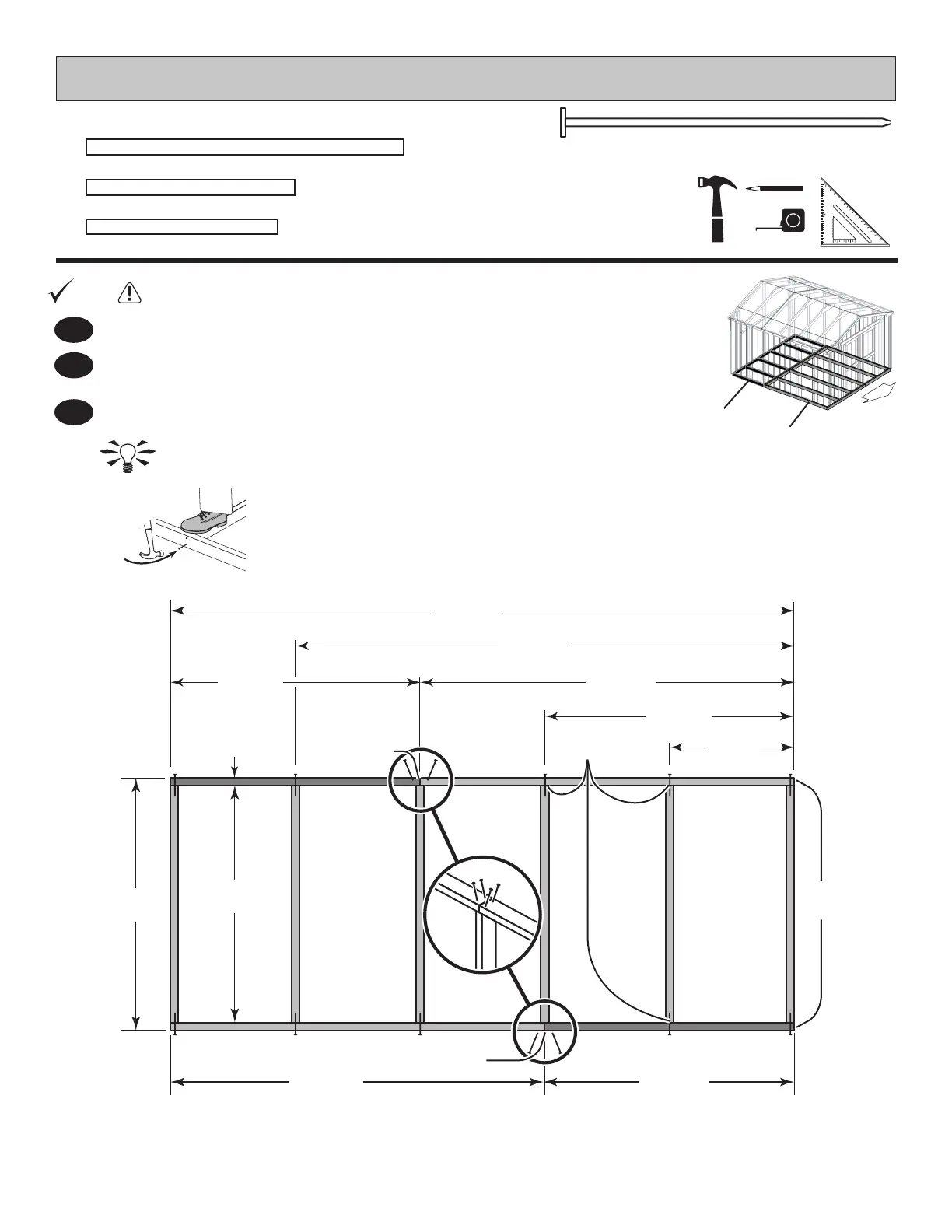

You will build (2) oor sections.
Offset Seam
2 x 4 x 45" (5 x 10 x 114,3 cm)
2 x 4 x 48" (5 x 10 x 122 cm)
2 x 4 x 72" (5 x 10 x 183 cm)
Offset Seam
Seam
HINT:
For easier nailing
stand on frame.
Section 2
Section 1
