Backyard Products GABLE - RAFTER ASSEMBLY JIG; PARTS REQUIRED FOR RAFTER JIG; BUILDING THE RAFTER ASSEMBLY JIG

DOOR
21
10' x 16' FLOOR PANELS
(Not Included)

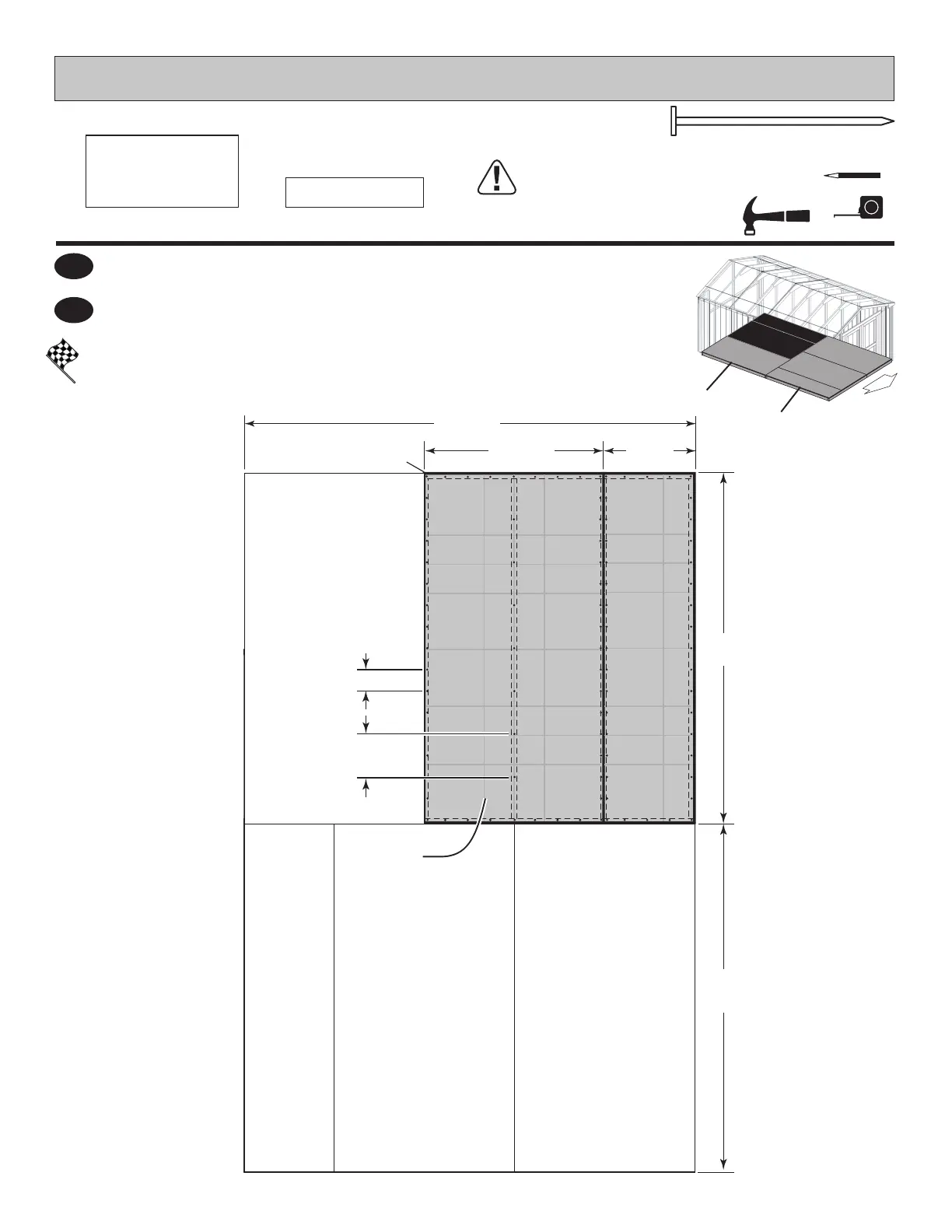

Use a chalk line or grid lines on panels to locate frame
Secure with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Continue installing panels with rough side up (painted grid lines).
3
Your oor panels are now installed. Continue on page 22.
PARTS REQUIRED:
x95
4
FINISH
2" (5 cm)
5/8 x 48 x 96"
(1,6 x 122 x 244 cm)
x1 x1
5/8 x 23-7/8 x 96"
(1,6 x 61 x 244 cm)
6" (15 cm) edges of panel.
120"
(305 cm)
96"
(244 cm)
12" (30,5 cm)
inside panel.
Grid lines
UP.
48"
(122 cm)
23-7/8"
(61 cm)
Flush
92-5/8"
(235 cm)
Section 2
Section 1
FLOOR PANELS NOT
INCLUDED. SEE PAGE 8
FOR PANEL SIZES
AND QUANTITIES.
