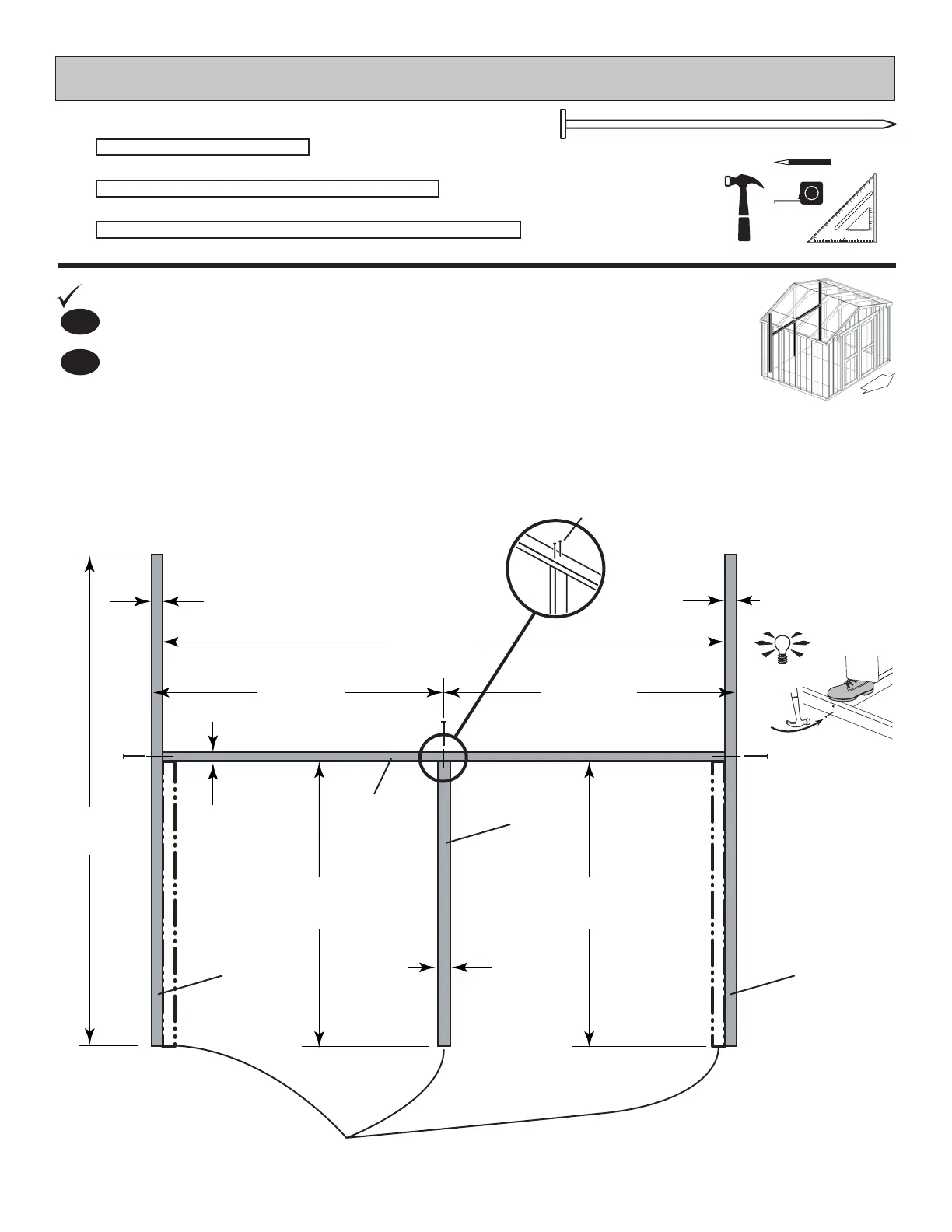

Backyard Products GABLE - BACK WALL PANELS INSTALLATION; PARTS REQUIRED FOR BACK WALL PANELS; INSTALLING LEFT BACK WALL PANEL

25
Use NH as a guide to locate PB. (Do not nail.)
1-1/2"
(3,8 cm)
77"
(176 cm)
46-1/4"
(117,5 cm)
46-1/4"
(117,5 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
94-1/2"
(240 cm)
Orient parts on edge on oor as shown.
Secure with (2) 3" nails at each connection.
2
1
BEGIN
3" (7,6 cm)
PB PB
NH
PR
PARTS REQUIRED:
BACK WALL FRAME
3" (7,6 cm) Nails
DOOR
HINT:
2 x 3 x 46-1/4" (5 x 7,6 x 117,5 cm)
2 x 3 x 77" (5 x 7,6 x 196 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
x1
x6
x2
x1
PB
NH
PR
