A
B
C
4"
(10 cm)
3-1/2"
(8,9 cm)
D
D
7
CONCRETE FOUNDATION

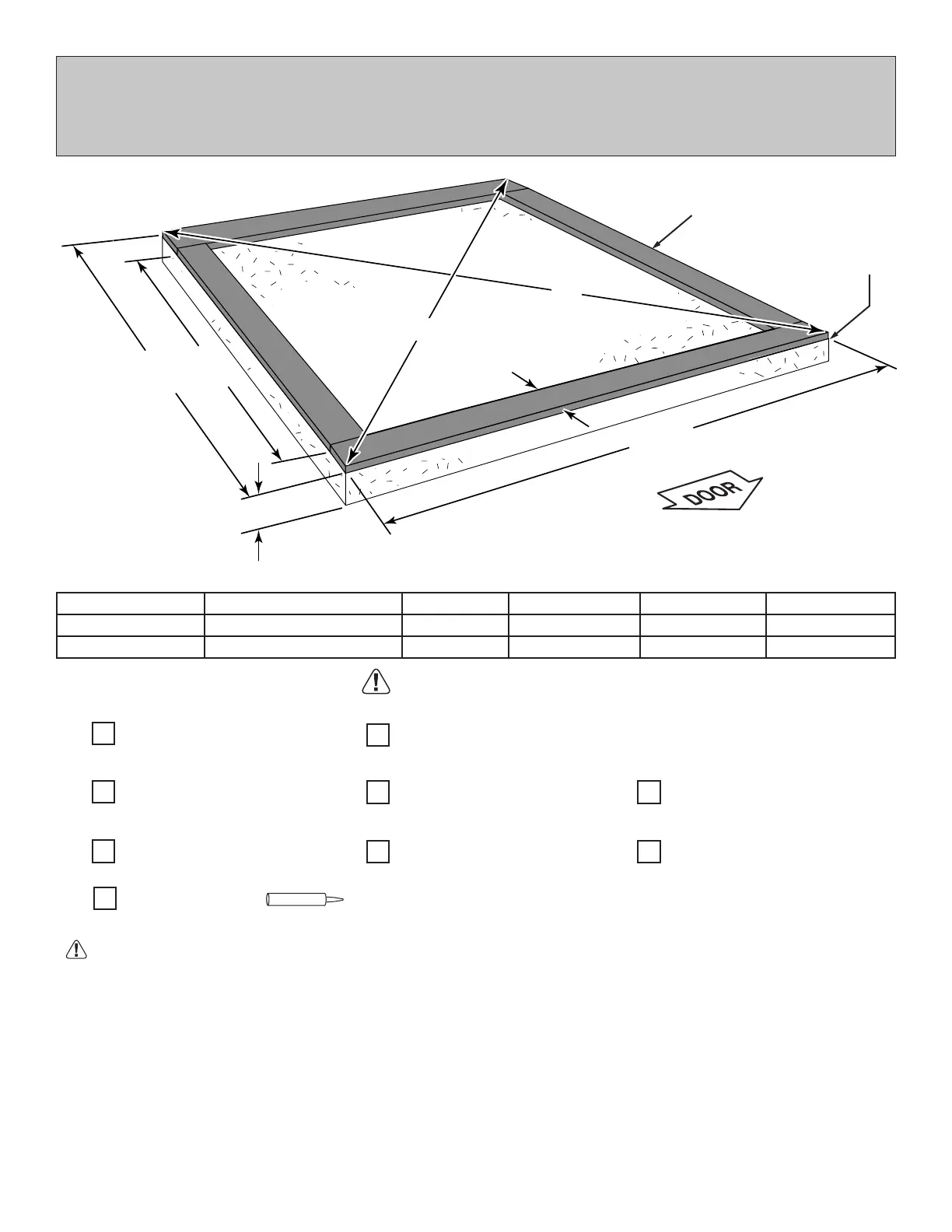

If you choose to install your kit on a concrete slab refer to the diagram below.
Install the sill plates on the foundaton as shown, and continue on to page 21.
A B C DActual Floor SizeBuilding Size
• A treated 2 x 4" (5 x 10 cm) sill plate is required when installing your shed on concrete.
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5 x 10 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (305 cm)
120" (305 cm)
120" (305 cm)
85-5/8" (217 cm)
133-5/8" (339 cm)
181-5/8" (461 cm)
10'x 7'-8-5/8" (305 x 235 cm)
10'x 11'-8-5/8" (305 x 357 cm)
10'x 15'-8-5/8" (305 x 479 cm)
10'x 8' (305 x 244 cm)
10'x 12' (305 x 366 cm)
10'x 16' (305 x 488 cm)
92-5/8" (235 cm) 151-1/2" (385 cm)
140-5/8" (357 cm) 185" (470 cm)
188-5/8" (479 cm) 224" (568 cm)
Treated Sill Plate
Caulk between
sill plate and
concrete.
10' x 8' Building Requires:
10' x 12' Building Requires:
10' x 16' Building Requires:
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2
2 x 4 x 4' (5 x 10 x 122 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2
MUST be treated lumber.
Caulk
x1 or 2
Allow new concrete slabs to cure for at least seven (7) days.
