Backyard LIGHTNING RIDGE 2200159 User Manual

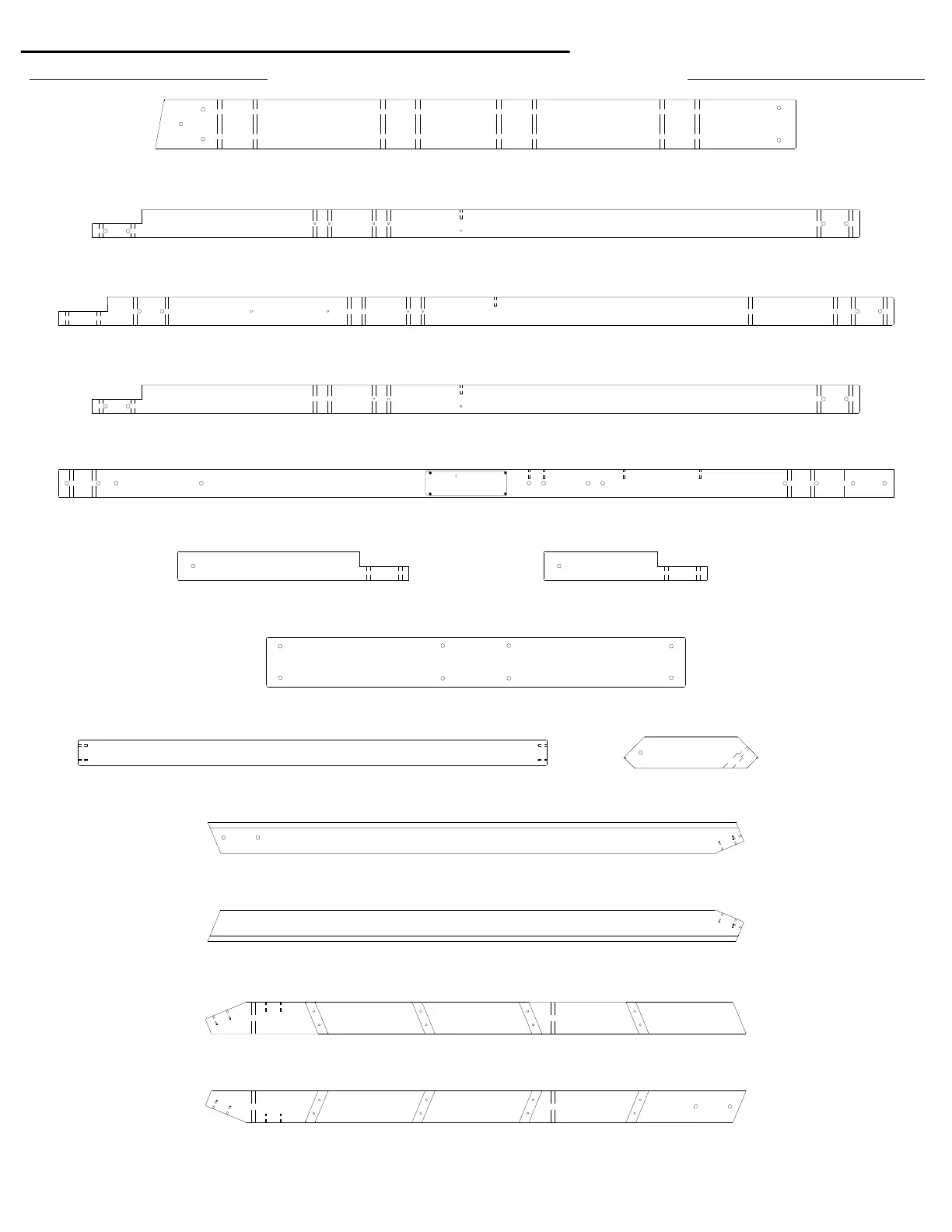

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
FLOOR JOIST - W4L16130
1 3/8"x2 3/4"x50 1/4" (36x70x1276)
E01
(x2)
UPRIGHT - W4L16122
3"x3"x89 1/2" (76x76x2274)
B02
(x1)
UPRIGHT - W4L16126
3"x3"x82 1/4" (76x76x2089)
B03
(x1)
UPRIGHT - W4L16140
3"x3"x17 1/2" (76x76x445)
B06
(x2)
UPRIGHT - W4L16139
3"x3"x24 3/4" (76x76x630)
B05
(x2)
ANGLE BRACE - W4L16134
1 3/8"x3 3/8"x14 3/8" (36x86x365)
E02
(x6)
SWING BEAM 2 POSITION - W4L16167
3 3/8"x5 1/4"x68 3/4" (86x134x1745)
A74
(x1)
LEFT UPRIGHT - W4L16152
1 3/8"x3 3/8"x58" (36x86x1473)
E77
(x1)
RIGHT UPRIGHT - W4L16153
1 3/8"x3 3/8"x58" (36x86x1473)
E78
(x1)
LEFT RAIL - W4L16157
1 3/8"x3 3/8"x57 1/2" (36x86x1460)
E72
(x1)
RIGHT RAIL - W4L16158
1 3/8"x3 3/8"x57 1/2" (36x86x1460)
E73
(x1)
WALL RAIL - W4L16166
1 3/8"x5 1/4"x44 7/8" (36x134x1141)
D01
(x1)
B04
(x1)
UPRIGHT - W2A03406
3"x3
"x89 1/2" (76x76x2274)
UPRIGHT - W4L16121
3"x3"x82 1/4" (76x76x2089)
B01
(x1)
3
