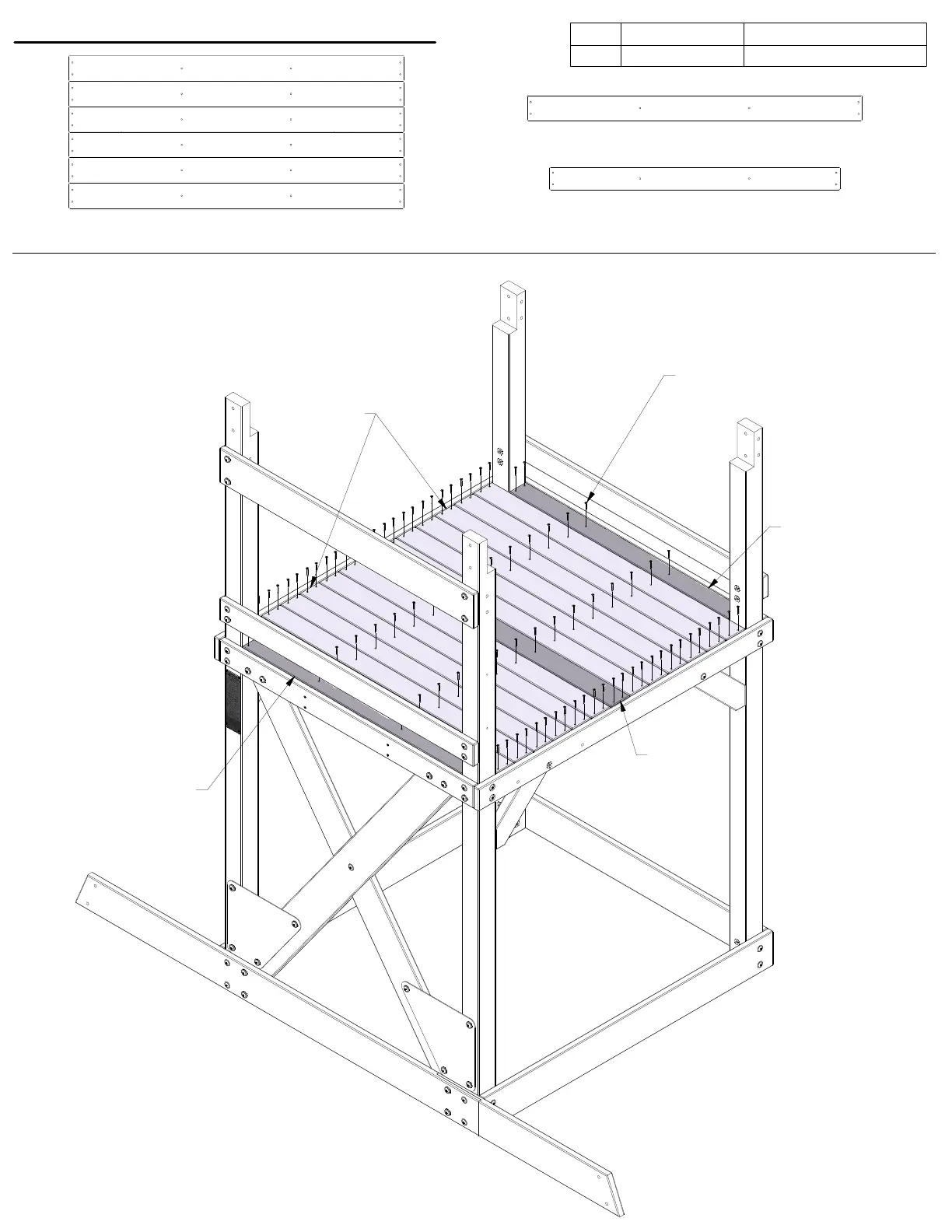

STEP 14 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
90 H100087 SCREW PFH 8x1-1/4"
FP01
(x2)
FLOOR PANEL - W2A03405
1 1/4"x20 7/16"x44 7/8" (32x519x1140)
FLOOR BOARD - W4L16120
5/8"x3 3/8"x44 7/8" (16x86x1140)
M01
(x1)
FLOOR BOARD - W4L16123
5/8"x3"x38 7/8" (16x76x988)
M02
(x2)
M02 (x1)
M01 (x1)
M02 (x1)
FP01 (x2)
087 (x90)
SCREW - 1-1/4"
42
