Backyard LIGHTNING RIDGE 2200159 - Page 53

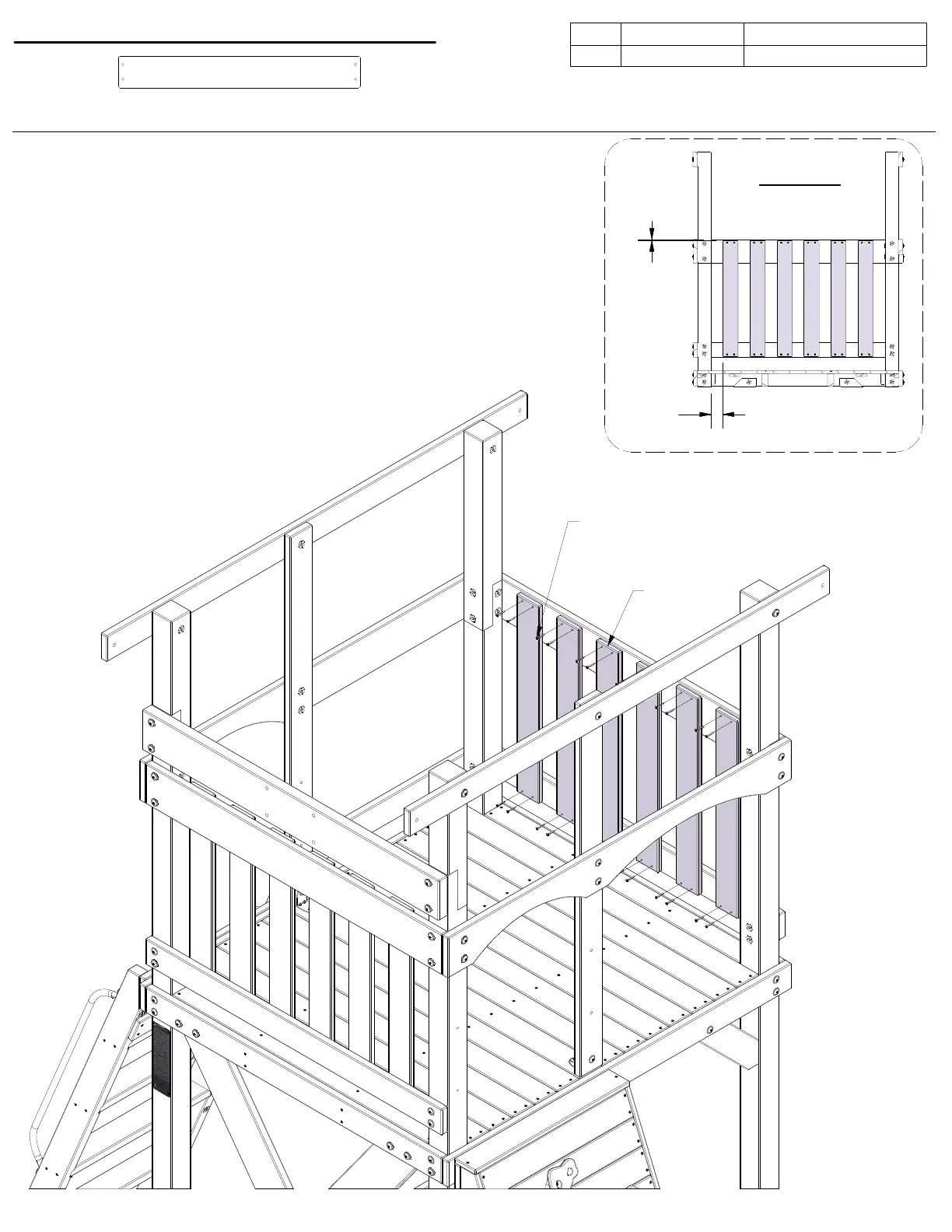

STEP 25 - FORT ASSEMBLY
PICKET - W4L16146
5/8"x3 3/8"x25 7/8" (16x86x657)
M03
(x6)
QTY
PART NUMBER DESCRIPTION
24
H100087 SCREW PFH 8x1-1/4"
SIDE VIEW
1/4 in
[6 mm]
2 3/4 in
[69 mm]
M03 (x6)
087 (x24)
SCREW - 1-1/4"
USE PICKET PAL FOR
PICKET SPACING
EVENLY SPACED
