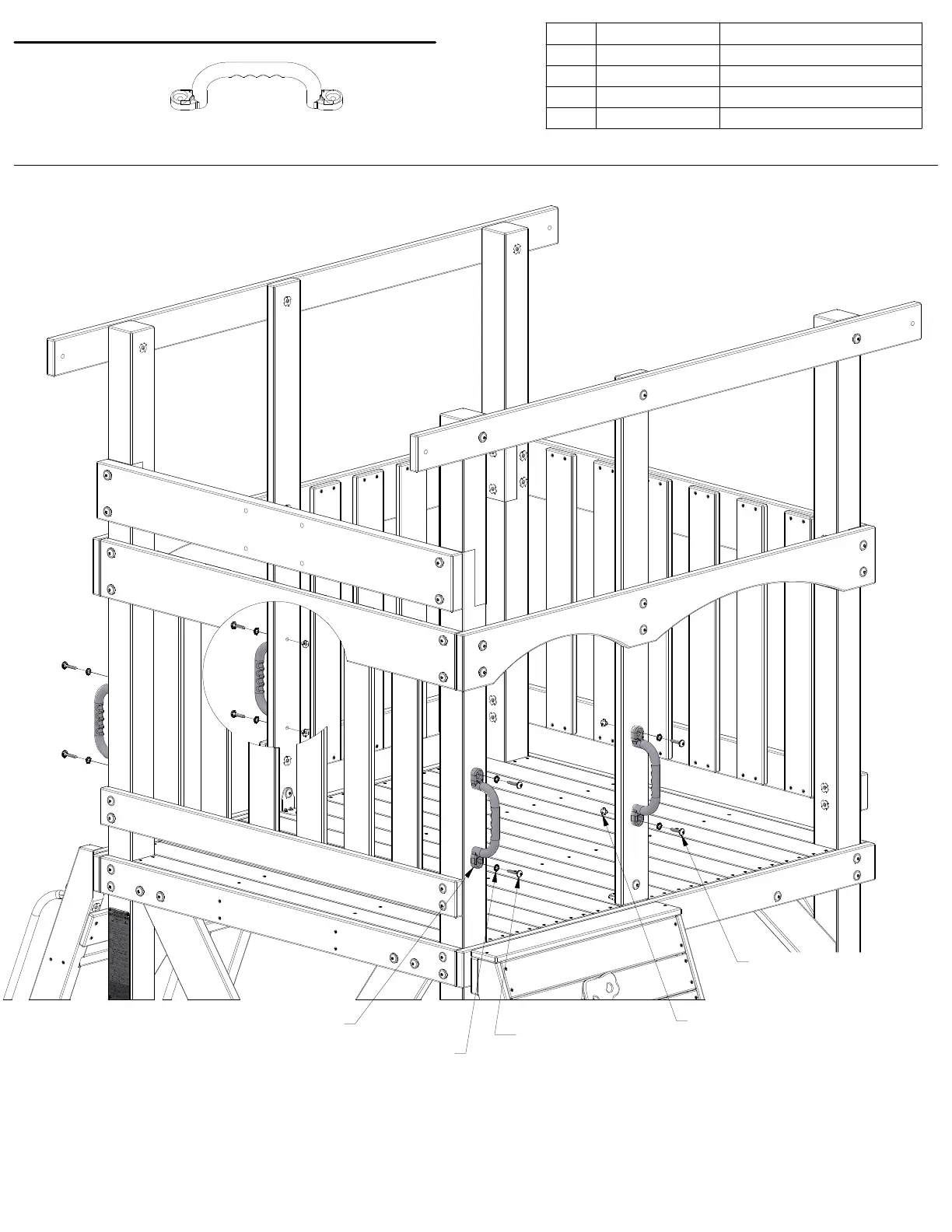

STEP 27 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
4
H100072
T-NUT 1/4
8 H100138
WASHER LOCK EXT 6x15
4
H100142
BOLT WH 1/4x1-1/4
4
H100145
LAG SCREW WH 1/4x1-1/2
HAND GRIP
GREEN PLASTIC
(x4)
A100028
028 (x4)
HAND GRIP GREEN PLASTIC
138 (x8)
WASHER - 6x15
145 (x4)
LAG SCREW - 1 1/2"
142 (x4)
BOLT WH - 1-1/4"
072 (x4)
T-NUT - 1/4"
TIP:
I
NSTA
LL T-NUTS IN WOOD FIRST.
55
