Backyard LIGHTNING RIDGE 2200159 User Manual

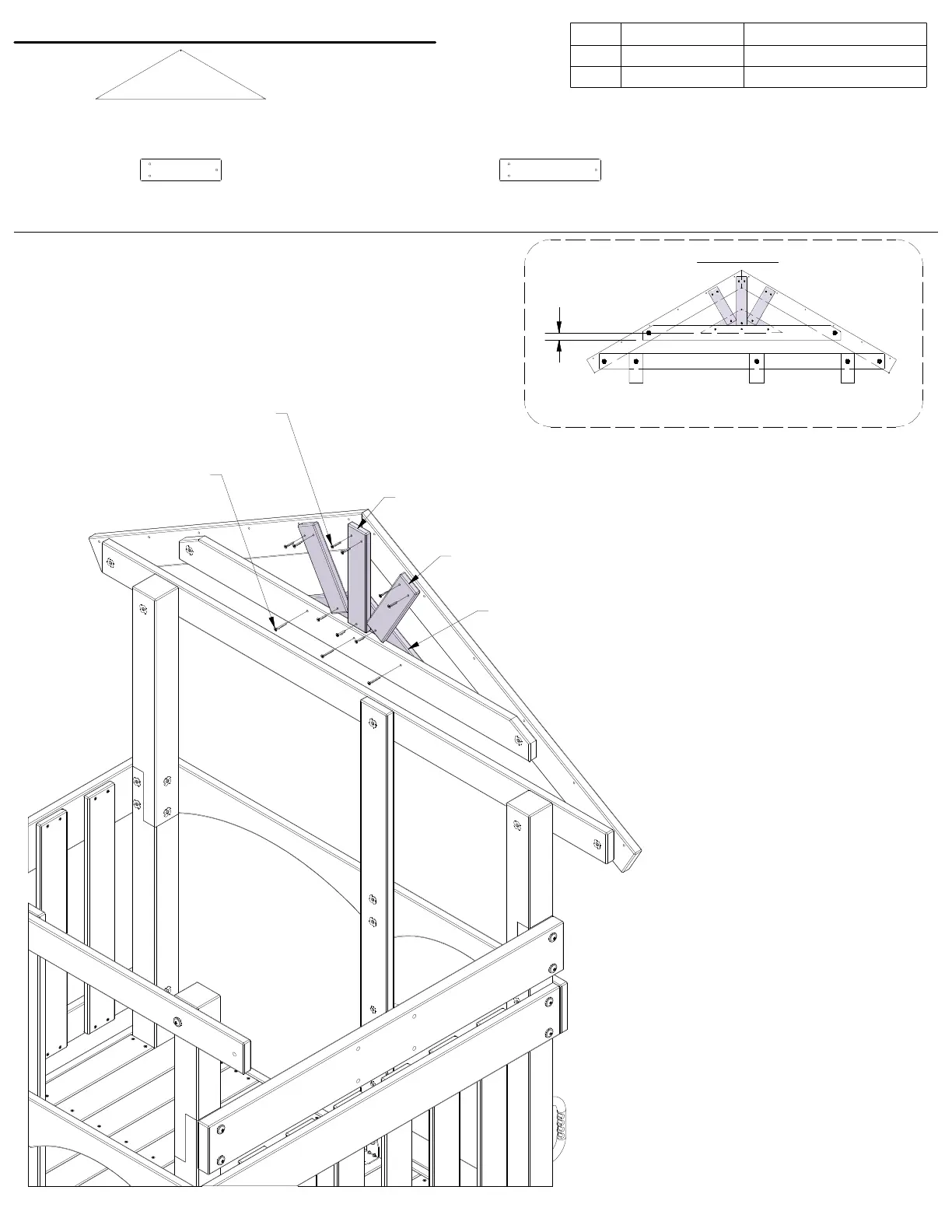

STEP 30 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
3 H100086 SCREW PFH 8x1-1/2"
9 H100380
SCREW PFH 8x1 1/8 BLK
SIDE VIEW
1 3/4 in
[43 mm]
CORRECT BOARD ASSEMBLY
N01 (x2)
N02 (x1)
K01 (x1)
380 (x9)
SCREW - 1 1/8"
086 (x3)
SCREW - 1 1/2"
TRIANGLE SUNBURST - W4L16149
5/8"x5 1/4"x18 1/4" (16x134x464)
K01
(x1)
FRONT PORCH GABLE TRIM - W4L16151
5/8"x2 3/8"x8 5/8" (16x60x220)
N01
(x2)
FRONT PORCH GABLE TRIM - W4L16150
5/8"x2 3/8"x10 7/8" (16x60x275)
N02
(x1)
NOTE:
INST
ALL K01 FIRST
58
