Backyard YardLine ASTON - ROOF PANELS

32
x1
x4

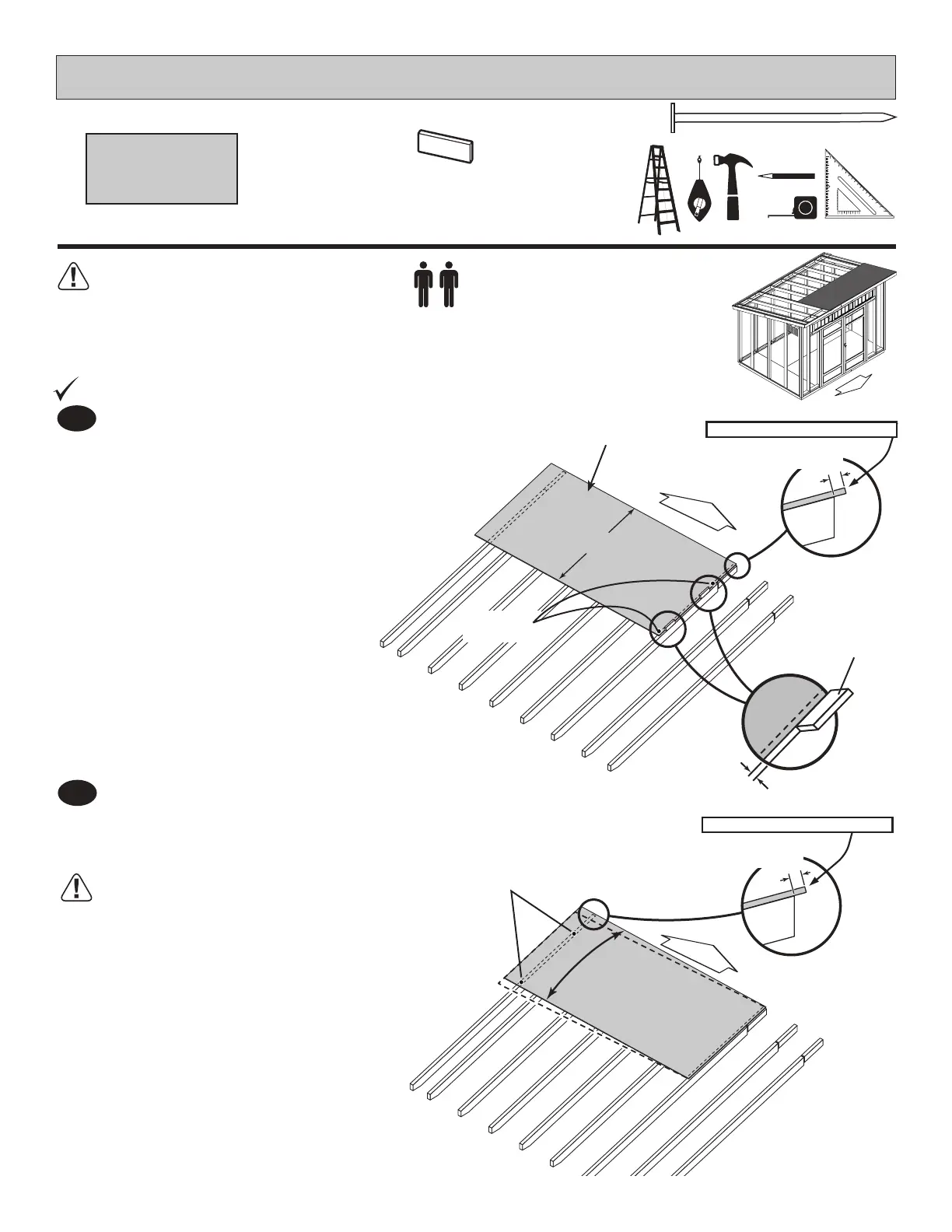

ROOF PANELS
PARTSREQUIRED:
2" (5,1 cm)
DOOR
7/16 x 48 x 96"
(1,1 x 121,9 x 244 cm)
48 x 96"
(121,9 x 244 cm)
3/4"GAUGE
BLOCK
GAA
Move to the opposite end. Using the long edge of
the panel as a lever move the panel side-to-side
until the top corner is at 1/2" (1,3 cm) measurement
overhanging the rafter extension (FigB).
You may need to move your entire roof
frame to make panel line up with 1/2"
overhang measurement (Fig.B). Secure
panel with two 2" nails into rafters.
2
You must square the roof by attaching one panel rst. You will use the panels’ long
edge as a lever to bring your roof into square. Commonly known as “racking”.
Roofpanelsmaycauseseriousinjury
untilsecurelyfastened.
1
BEGIN
Attach the 48x96"panel with the rough side
up (painted-grid lines side) with 1/2" (1,3 cm)
measurement overhanging the rafter extension (FigB)
and the panel is 3/4" (1,9 cm) along the the length of
the rafter(Fig.A).
Nail panel with two nails as shown.
48"
(121,9 cm)
TwoNails
TwoNails
3/4"
(1,9 cm)
Fig.A
Gauge
Block
DOOR
DOOR
1/2"
(1,3 cm)
Fig.B
NOTE:Measurement from rafter extension.
1/2"
(1,3 cm)
Fig.B
NOTE:Measurement from rafter extension.
