Backyard YardLine ASTON - Page 33

33
7/16 x 48 x 96"
(1,1 x 121,9 x 244 cm)
48x96"
(121,9x244cm)
7/16 x 36-3/8 x 96"
(1,1 x 92,4 x 244 cm)
7/16 x 11-7/8 x 96"
(1,1 x 30,2 x 244 cm)
11-7/8x96"
(30,2x244cm)
x1 x1
x1
x120

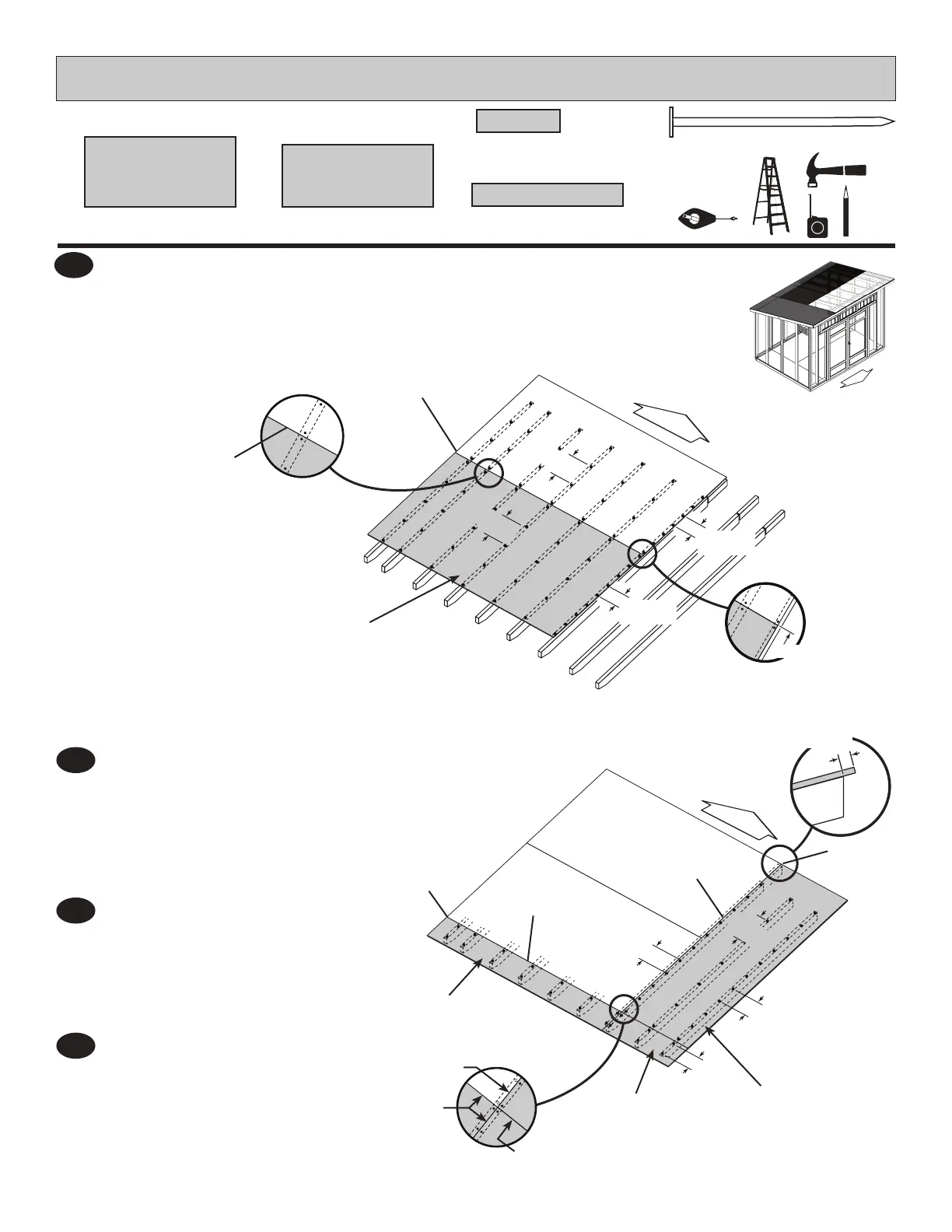

ROOF PANELS
PARTSREQUIRED:
2" (5,1 cm)
36-3/8x96"
(92,4x244cm)
1/2"
(1,3 cm)
Fig.B
DOOR
Flush
7/16 x 11-7/8 x 36-3/8
(1,1 x 30,2 x 92,4 cm)
11-7/8x36-3/8"
(30,2x92,4cm)
x1
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
6"
(15,2 cm)
6"
(15,2 cm)
6"
(15,2 cm)
6"
(15,2 cm)
6"
(15,2 cm)
Flush
Flush
Flush
Flush
Fig.D
Flush
Fig.E
Flush
Flush
Flush
DOOR
DOOR
Nail the rst 48x96"roof panel using 2" nails 6" apart on edge and 12" apart inside panel.
Locate the second 48x96" roof panel with the rough side up ush to rst panel along edge
and at both corners (Fig.C,D). Repeat nailing pattern.
Nail the 36-3/8x96"roof panel with the rough
side up using 2" nails 6" apart on edge and 12"
apart inside panel.
Ensure the 36-3/8x96"roof panel is ush to
installed 48x96" roof panels and overhang is
at 1/2" (Fig.B,E).
Nail the 11-7/8x96"roof panel with
the rough side up using 2" nails 6"
apart on edges.
Ensure the 11-7/8x96"roof panel is
ush to installed roof panels (Fig.E).
Nail the 11-7/8x36-3/8"roof panel
with the rough side up using 2" nails
6" apart on edges.
Ensure the 11-7/8x36-3/8"roof
panel is ush to all (3) installed roof
panels (Fig.E).
3
4
5
6
Fig.C
Flush
