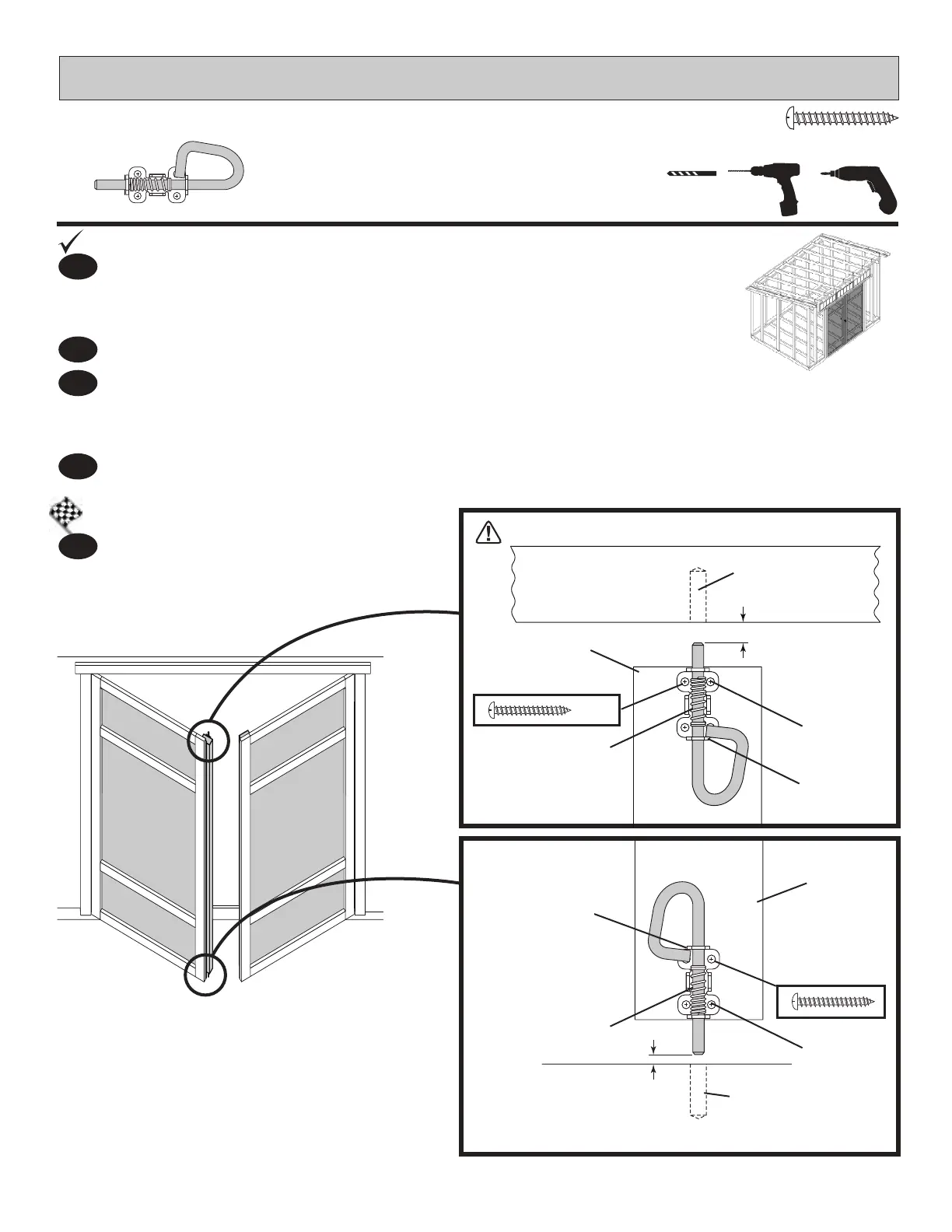

Backyard YardLine ASTON - DOOR

46
1" (2,5 cm)
BEGIN
Install bolt with screws supplied and drill 5/16" hole for bolt to extend into.
Install bolt with screws supplied and drill 5/16" hole for bolt to extend into.
Place bolt onto OO in open position with bolt end 1/2" up from oor.
Bolt is open when loop is contacting base (FigB).
3
4
2
Place bolt onto OO in open position with bolt end 3/8" down from frame.
Bolt is open when loop is contacting base (FigA).
Mark and pre-drill holes for screws.
Mark and pre-drill holes for screws.
1
LEFT
DOOR
Fig.B
PARTSREQUIRED:
DOOR
x2
x8
5/16" (0,8 cm) Drill Bit
You have nished installing your barrel bolts.
FINISH
5
Fig.A
FLOOR
Loopcontacts
base.
x4
x4
1/2"
5/16"drillfor
bolt:1"deep.
Loopcontacts
base.
PRE-DRILL
(4)HOLES
PRE-DRILL
(4)HOLES
2 x 3 x 69"
2 x 3 x 69"
3/8"withboltinopen
position.
OPENPOSITION,
Springisloose.
OPENPOSITION,
Springisloose.
5/16"drillforbolt:
1"deep.
OVERDOORFRAME
OO
OO
LOCATEANDPRE-DRILLHOLESTOAVOIDSPLITTINGWOOD
