CHAPTER 10 ELECTRIC ACCESSORIES AND INSTRUMENTS1022H TRACTOR
10

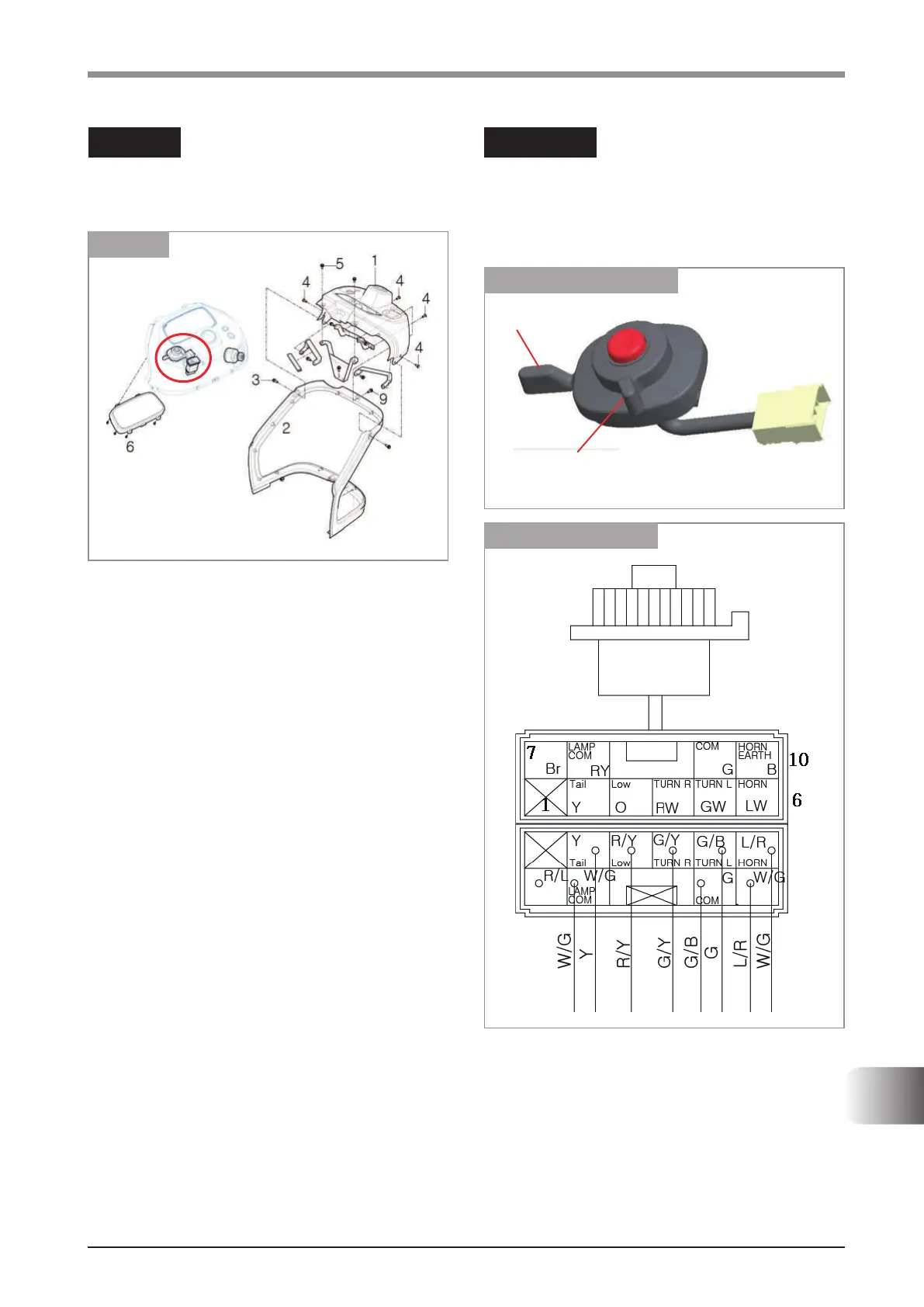

4.3 COMBINATION SWITCH
K19W223A
FIG. 10-12
REMOVAL
1. Remove the dash cover (Lower).
2. Remove the combination switch.
/LJKWVZLWFK
6LJQDOVZLWFK
K19W224A
FIG. 10-13 combination switch
K19W225A
FIG. 10-14 Harness socket
Each switch circuit is as shown, so check each switch
for a continuity across respective terminals with a
tester. Replace a defective switch as an assembly.
INSPECTION
(1) NC
(2) Tail lamp
(3) Low beam
(4) Turn (R)
(5) Turn (L)
(6) Horn
(7) NC
(8) Lamp COM
(9) COM
(10) Horn earth
