CHAPTER 1 INTRODUCTION 1022H TRACTOR

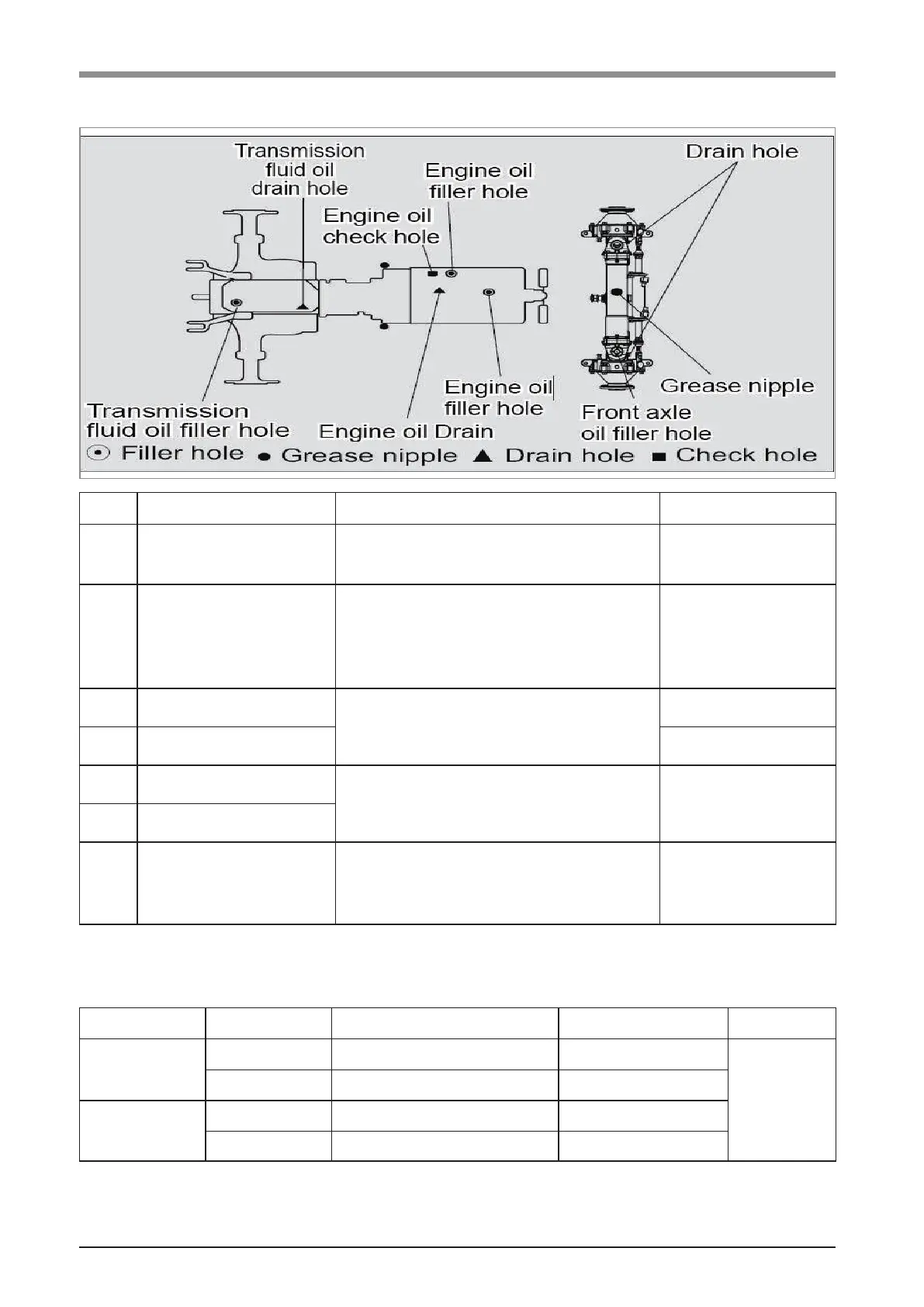

10.3 FILLING DIAGRAM & CAPACITY TABLE
K19W015A
No. Filling point Fillings Quantity Liter (US gal)
1 RADIATOR
50/50 : Ethylene Glycol/Water (L.L.C)
ASTM D4985 / D6210
3.5 ℓ (0.93 US gal)
2 ENGINE
API : Over CF-4 grades
Above:25°C (77°F)…SAE30 or 10W-30
0°C to 25°C (32°F to 77°F)…SAE20 or 10W30
Below 0°C (32°F)…SAE 10W or 10W30
1.8ℓ (0.48 US gal)
3 TRANSMISSION CASE
(API GL-4 Grades)Gear oil SAE 80W90
BBT Standard : TF 500
14ℓ (3.7 US gal)
4 FRONT AXLE 2.6ℓ (0.7US gal)
5 BRAKE PEDAL SHAFT
Lubricant / Grease As required
6 FRONT AXLE PIN
7 FUEL TANK
Diesel fuel specication :
ASTM D975, EN590:96, ISO 8217 DMX
JIS K2204 Grade No. 2, GB252, KSM-2610
25ℓ (6.6 US gal)
TIRE SIZE AND INFLATION
TYPE DIVISION TYPE INFLATION MODEL
R4
Front BAR F 16 X 7.50-8PR 28psi (1.9 kg/cm
2
)
1022H
Rear BAR R 24X12.00-12PR 20psi(1.4 kg/cm
2
)
R3
Front TURF F 16X7.50-8PR 24psi(1.6 kg/cm
2
)
Rear TURF R 24X12.00-12PR 20psi (1.4 kg/cm
2
)
