CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS 1022H TRACTOR
2. Remove the drain pipe. 4. Detach the delivery pipe from the hydraulic cylinder
case.
3. Detach the link B comp.
T19W013A

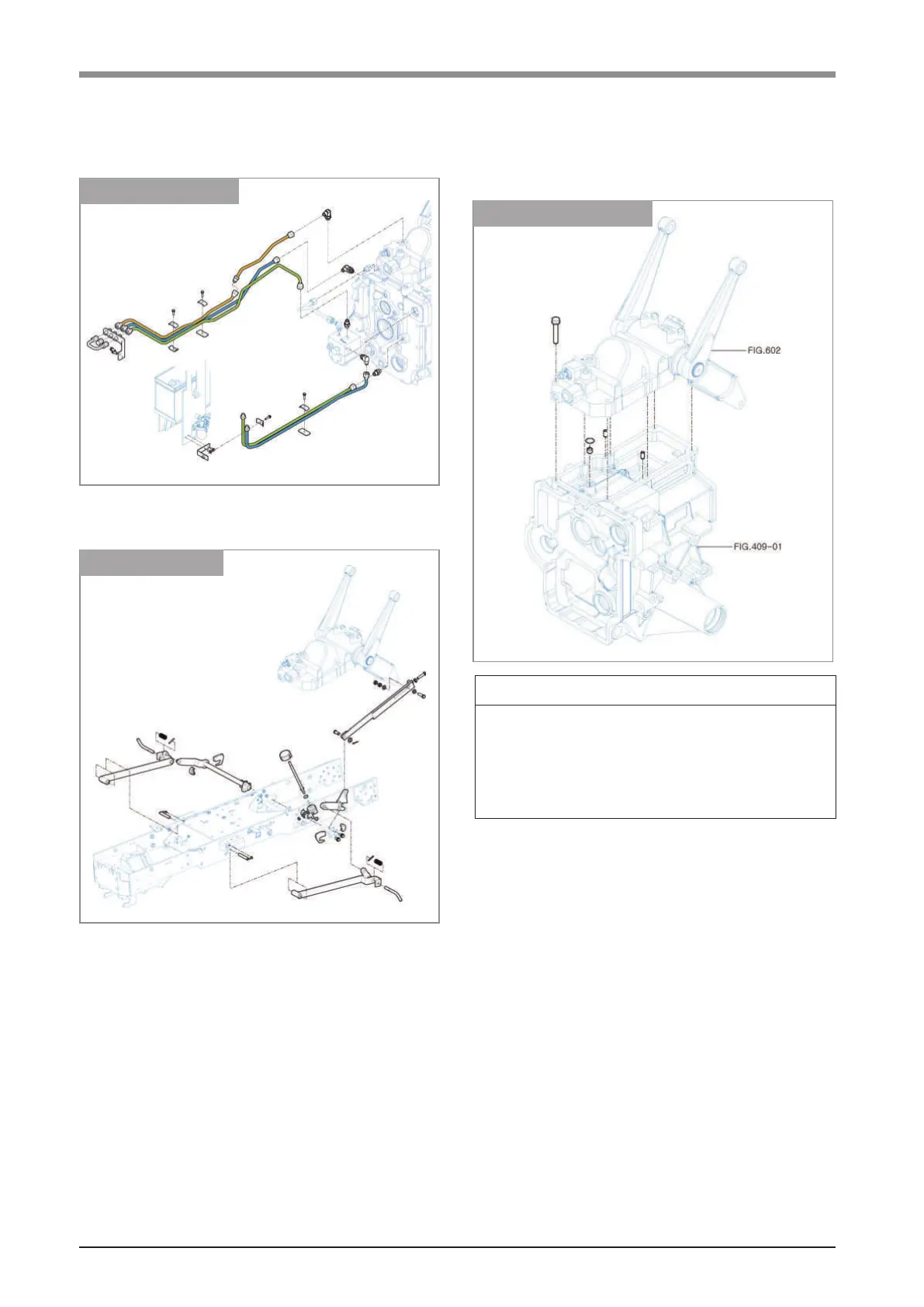

FIG. 2-39 Hydraulic pipe
OLQN%
FRPS
K19W061A
FIG. 2-40 Mower Link
K19W062A
FIG. 2-41 Hydraulic cylinder
NOTE
• Be careful not to damage the functional compo-
nents. When the pipes related to the hydraulic
system are removed, their openings should be
covered with plastic caps or the like to keep out
dust or other foreign matter.
