Rear Cover Removal and Installation
To Remove the Rear Cover
1. Remove the six threaded fasteners (A, Figure 22)
securing the rear cover to the machine.
2. Lift the cover (B) from the machine. Set the components
aside.
To Install the Rear Cover
1. Place the cover (B) onto the rear of the mower, aligning
the holes in the cover with the holes in the mower.
2. Secure the cover to the mower with the threaded
fasteners (A).
WARNING
DO NOT attempt any maintenance, adjustments or service
with engine and blade running. STOP engine and blade.
Disconnect spark plug wire and secure away from spark
plug. Engine and components are HOT. Avoid serious
burns, allow sufficient time for all components to cool.
! !
B

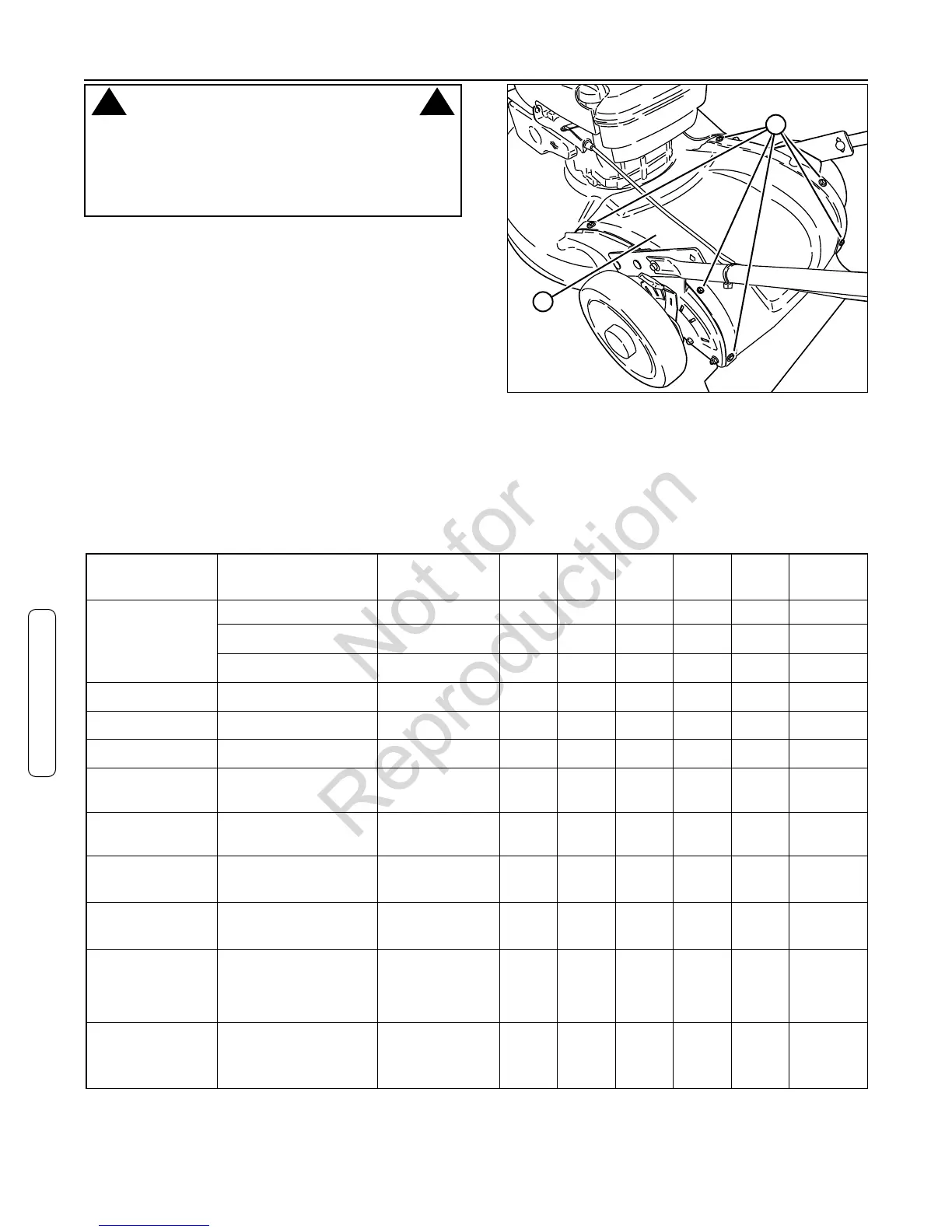

Figure 22: Removing the rear cover
A
16
Maintenance
www.badboymowers.com
Maintenance (Continued)
ITEM SERVICE
PERFORMED
REF. EACH
USE
5
HRS
25
HRS
50
HRS
100
HRS
EACH
SEASON
Engine Oil Check Oil Level Page 7 X
Initial Oil Change Page 11 X
Periodic Oil Change Page 11 X*
Air Pre-Cleaner Clean Sponge Element Engine Manual X**
Air Cleaner Clean or Replace Engine Manual X**
Spark Plug Replace Engine Manual X
Engine Cooling
System
Clean Shroud & Fins Engine Manual X**
Drive Belt Check for Wear and
Tension
Page 11, 15 X X X
Mower Blade Check for wear, Damage
& Replacement
Page 13 X
Mower Deck Clean Debris
Accumulation
Page 7 X
Wheel Drive
Components
Clean Debris
Accumulation; Check
for Wear or Damage
Page 12 X
Transmission
Clutch Cable
Spring Adjustment
Check & Adjust Page 14 X X X
* Change oil every 25 hours when operating under heavy load or high temperatures.
** Clean more often under dusty conditions or when air debris is present.
Service Schedule
