Interface Module XC Modbus
Protocol Converter / User Manual
Baer Energie- & Messtechnik GmbH  Siemensstr. 3  D-90766 Fürth  Phone +49 911 970590  Fax +49 911 9705950
Service Data / (Service Table TS) and Modbus ID-Address

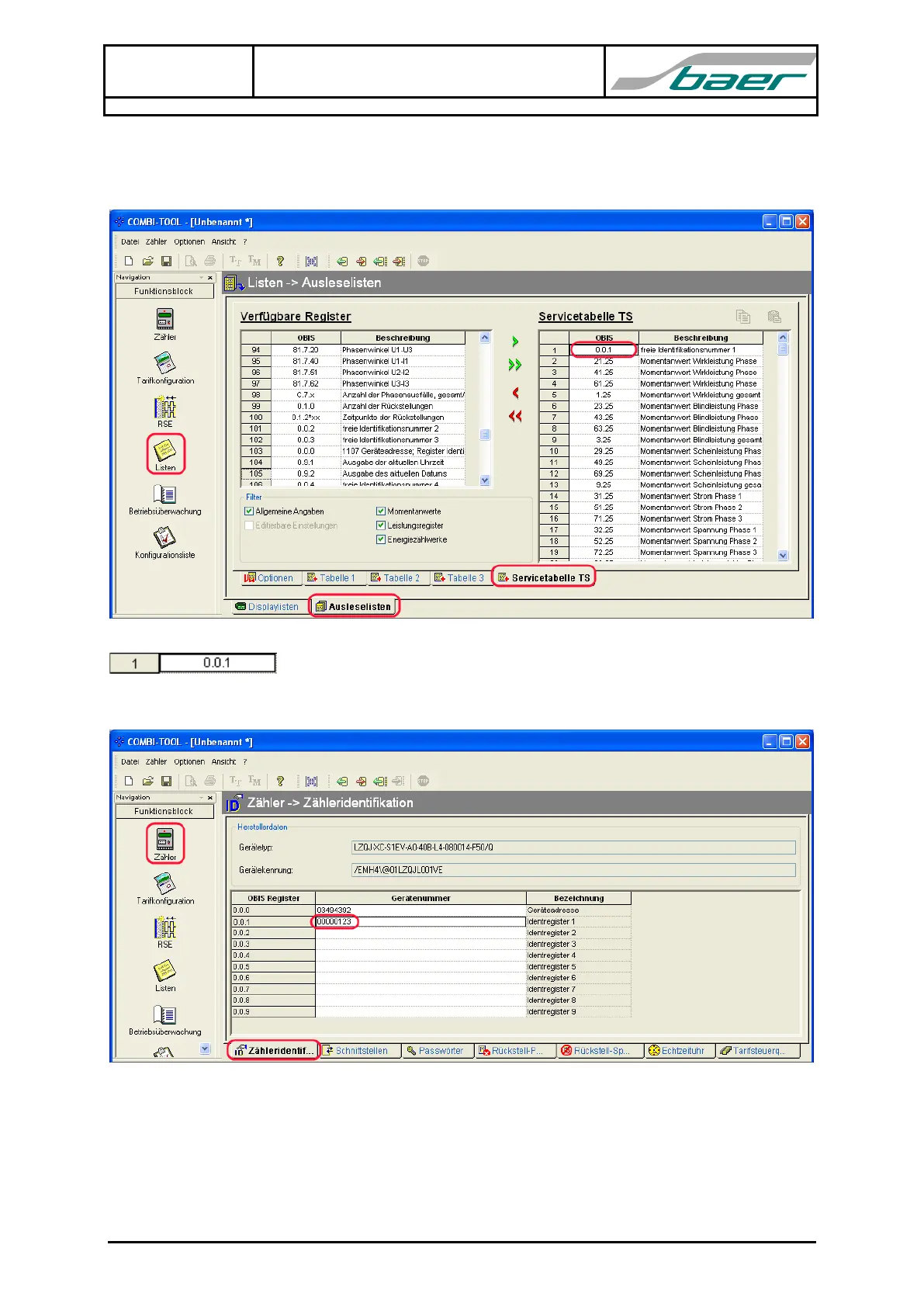

For setting the meter data list use menu
Lists  Reading lists  Service Table TS:
Note 1: The Modbus module uses for ID-Address the first data value in the service data list
(TS): register addresses 0 and 1.
In this example we use the identification number 1 (OBIS 0.0.1) for ID-Address:
menu Meter  Meter ID  OBIS Register 0.0.1, e.g. value 123 (:= 00000123):
Note 2: Only the first 125 values from the service data list (TS) will be used.
