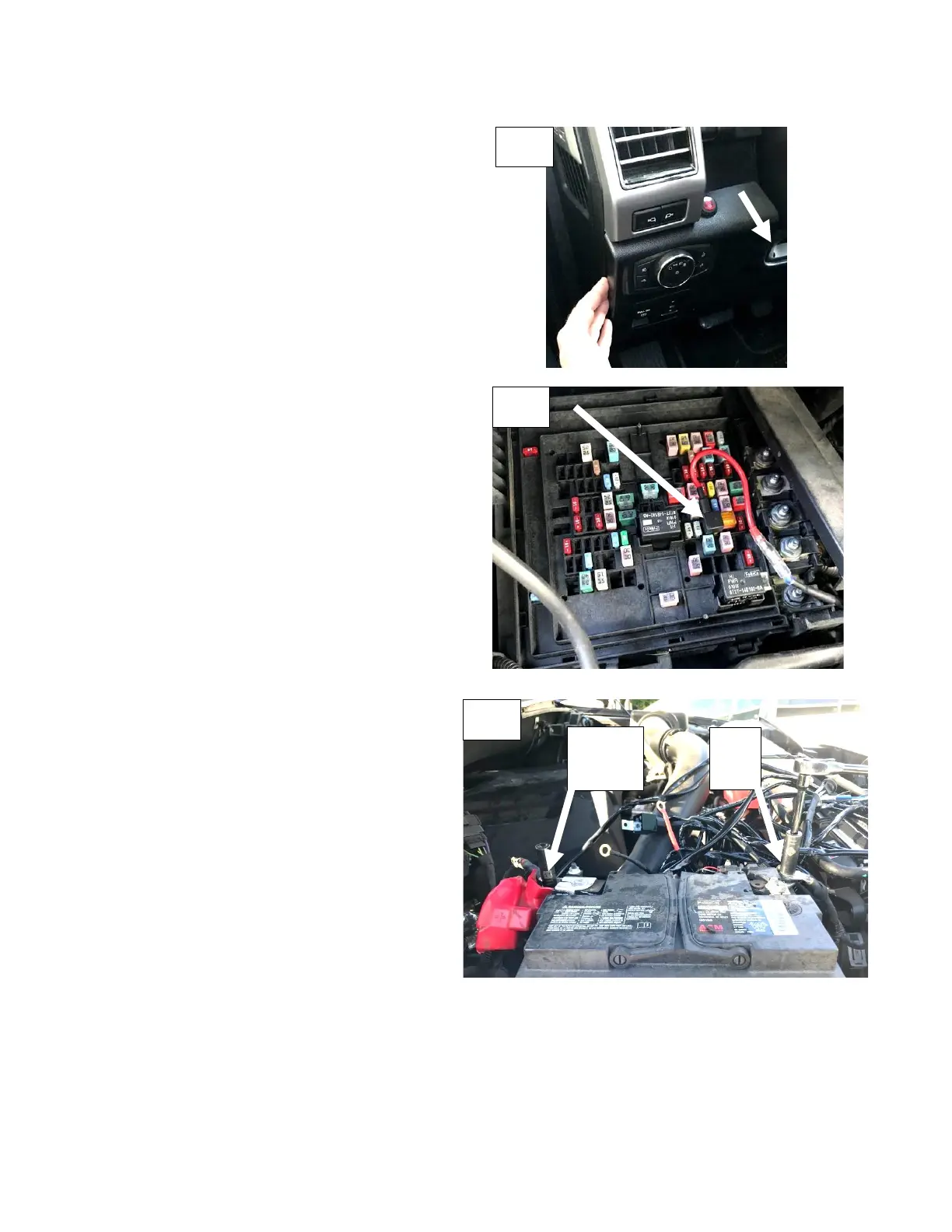

22. Take a quick photo of the switch terminal
orientations. Remove the switch, route the
harness through the grommet, and zip tie
either side. Pull the grommet gently from
inside the cab to seal the firewall. Gently pull
the dash open at the two edges as shown.
Drill a ¾” hold in a desired location on the
dash with clearance on the back side. Pull
wires through the hole, connect switch, and
press switch into location.
23. Open the fuse panel in the passenger corner
of the engine bay. A panel legend is printed
on the inside of the lid. Place the micro fuse
tap in the 36 fuse number (Vehicle power)
after inserting the existing fuse into the fuse
tap. Attach the male bullet end of the
backlight harness to the fuse tap and place
the lid back onto the panel.
24. Place the radiator cover back over the
grill/shutter assembly. Replace all the plastic
fasteners from step 3.
25. Install the trim piece from step 2 and fender
flares from step 1 (if present). Tighten 7mm
hex head bolts from step 1.
26. Attach the red ring terminal end of the
harness to the (+) positive terminal of the
battery with the 11mm socket wrench. Then
attach the black ring terminal to the (-)
negative terminal with the ½” socket.
27. Go over the entire wiring harness and make
sure the wires are tied up and away from all
hot, sharp, and/or spinning components.
