seCtIon 2 • general Boat arrangeMent
3. basic boaT DiMensions anD clearances (uniTeD sTaTes sTanDarD s.a.e.)
242 Islander specificaTions
Overall Length .................................................................24'2"
Overall Length (w/ drive down)........................................24'8"
Overall Length w/ Swim Platform .................................25'9½"
Beam (width) .....................................................................8'6"
Draft (stern drive down) ..................................................... 38"
Draft (stern drive up in trailering position)...........................24"
Dry Weight .........................................................4,400 pounds
Fuel Capacity......................................................... 102 gallons
heiGhT DiMensions
From Keel
without Windscreen.............................................................64"
Keel To Top
Of Windscreen.................................................................... 77"
From Waterline
without Windscreen.............................................................44"
From Waterline to
Top of Windscreen..............................................................57"
(FIG. 2.2.3)

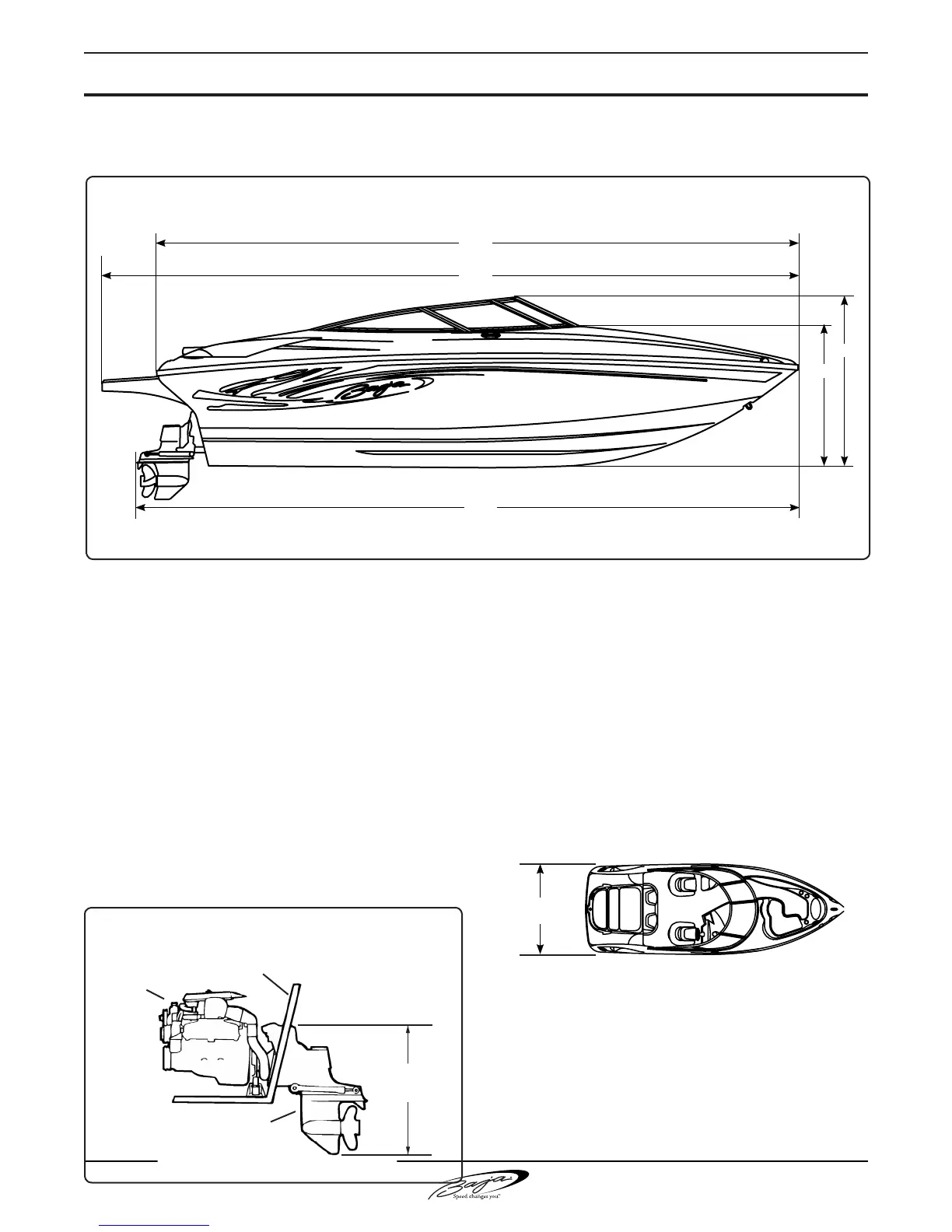

Boat Dimensions and Clearances
(Fig. 2.2.1)
24'2"
24'8"
64"
77"
Specication measurements are approximate
and subject to variance.
Stern Drive (Inboard-Outboard) Engine
(Fig 2.2.2)
STERN DRIVE UNIT
(LOWER UNIT)
DRAFT
(Stern Drive Down)
38"/96.52cm
WATER LINE
HULL
(TRANSOM)
ENGINE
8’ 6”
Beam
25'9½"
