Section 6 • electrical SyStemS
R
Speed changes you.
TM.
TRAILER TRIM
BLUE/WHITE
RED
GREEN/WHITE
14 AWG RED 14 AWG GREEN 14 AWG BLUE 14 AWG PURPLE
TRAILER LIMIT
SWITCH
TO GROUND
BLOCK
TO ENGINE
STARTER
8 AWG
BLACK
8 AWG
RED
100
AMP

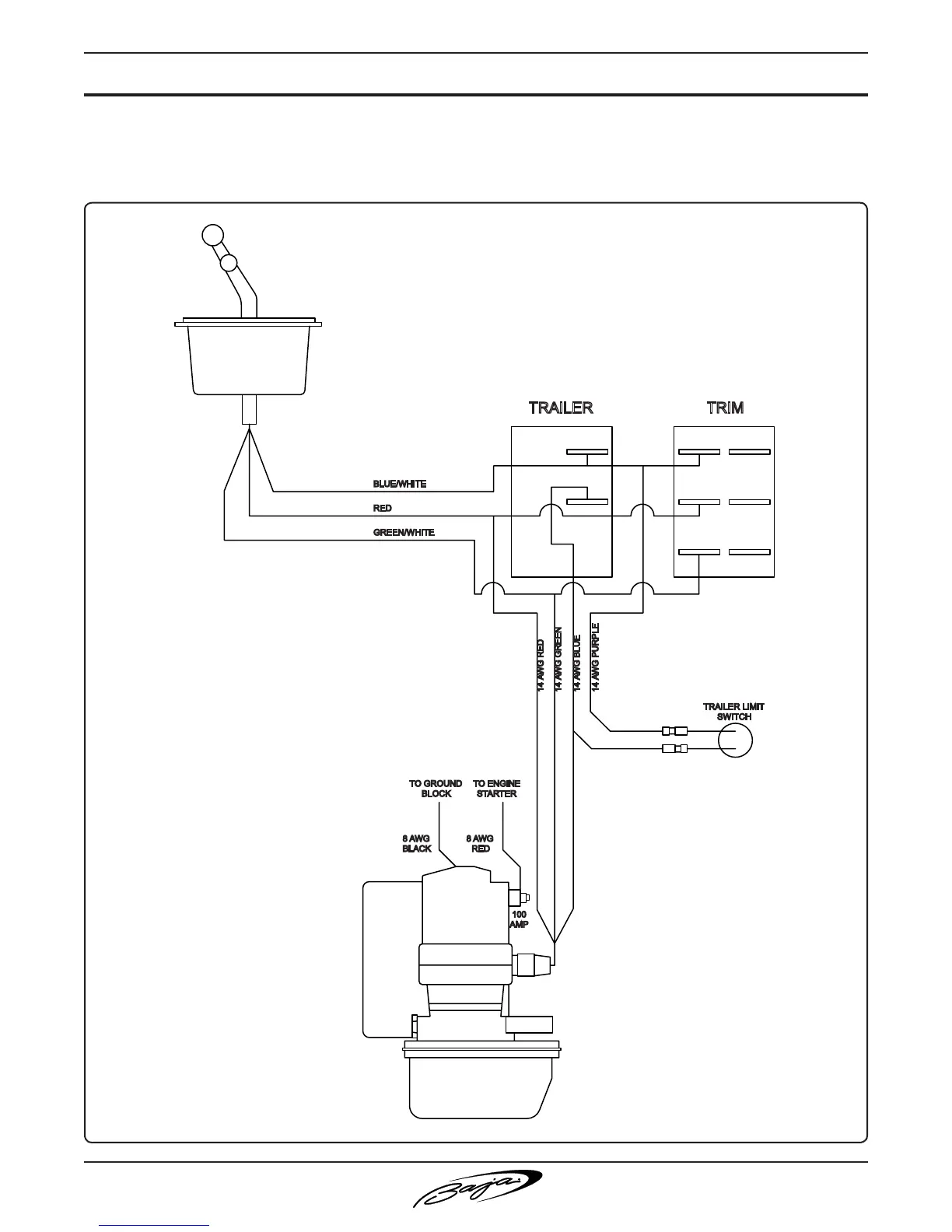

drive PumP
(fig. 6.5.1)
