SeCtion 2 • general Boat arrangeMent
3. basic boaT DiMensions anD clearances (uniTeD sTaTes sTanDarD s.a.e.)
H2X specificaTions
Overall Length ................................................................24'½"
Overall Length (w/ drive down)........................................24'11"
Beam (width) .....................................................................8'4"
Draft (stern drive down) ..................................................... 35"
Draft (stern drive up in trailering position)...........................20"
Dry Weight .........................................................3,900 pounds
Fuel Capacity.......................................................... 80 gallons
heiGhT DiMensions
From Keel
without Windshield.............................................................57 ½"
Keel To Top
Of Windshield.....................................................................60"
From Waterline
without Windshield..............................................................37 ½"
From Waterline to
Top of Windshield................................................................40"

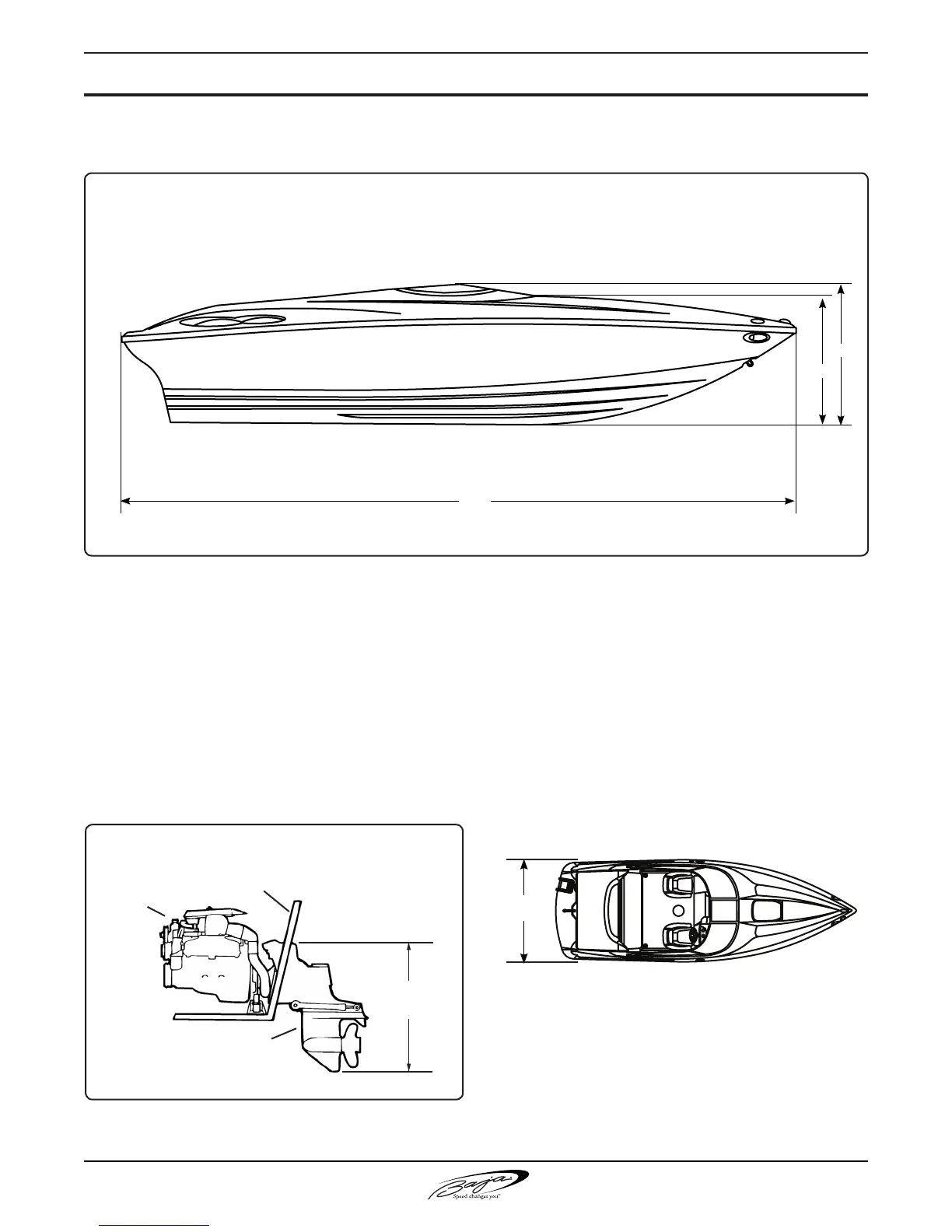

Boat diMenSionS and ClearanCeS
(Fig. 2.2.1)
Specication measurements are approximate
and subject to variance.
Stern drive (inBoard-outBoard) engine
(Fig 2.2.2)
STERN DRIVE UNIT
(LOWER UNIT)
DRAFT
(Stern Drive Down)
35"/89cm
WATER LINE
HULL
(TRANSOM)
ENGINE
24'½"
57 ½"
60"
8’ 4”
Beam
(FIG. 2.2.3)
