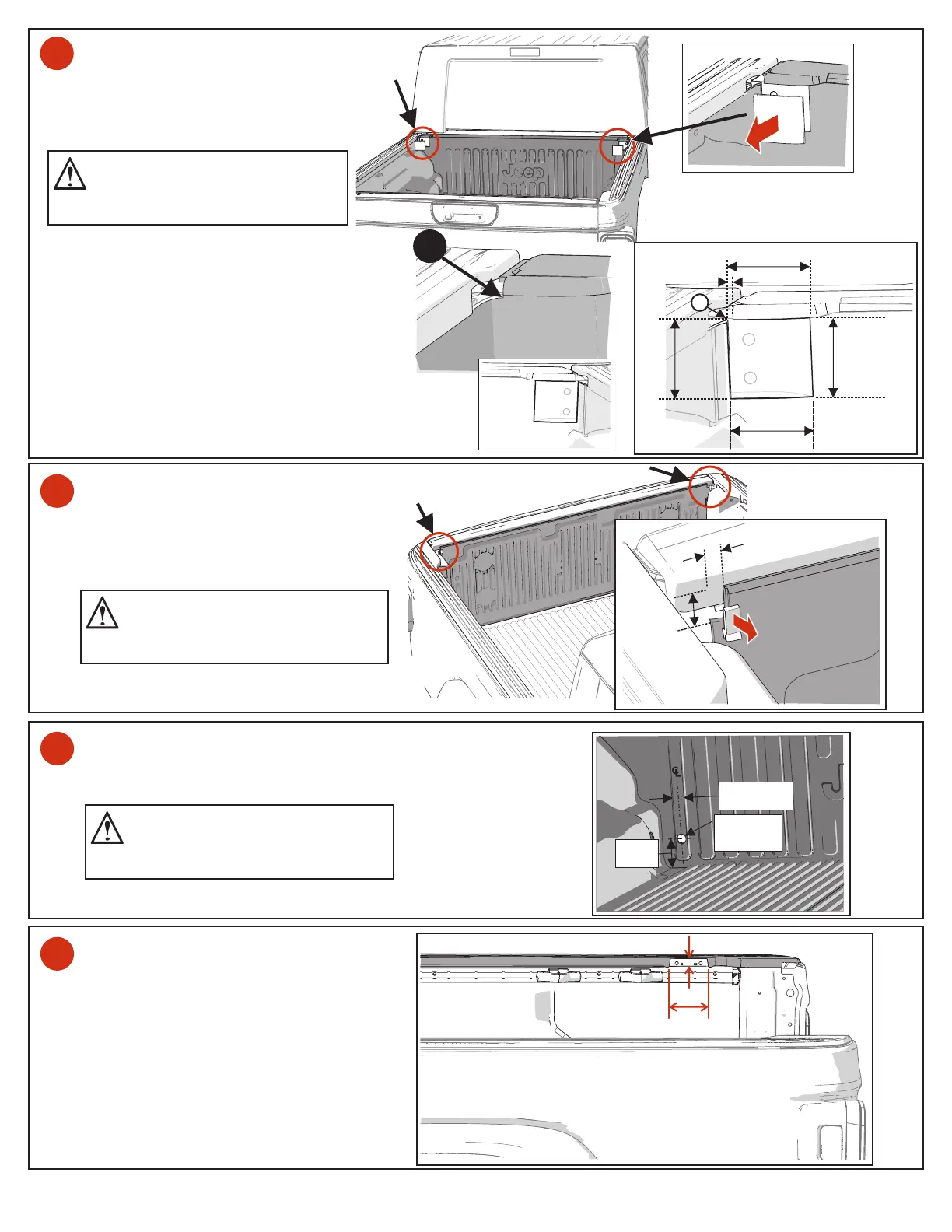

DROP IN LINER TRIMMING
If the truck has a drop in bed liner,
the top corners at the bulkhead,
and the top corners of the tailgate liner
need to be trimmed to allow for the
bed cover rails.
Locate the necessary cuts by starting with
the top left corner edge of the liner (1),
then measure a distance of 0.18”, 4.8mm,
outboard to establish point A.
The first cut is down from A 2.5”,
63.5mm, to point B. The next cut is
from point A, inboard horizontally
2.6”, 66.7mm, to point C.
Cut from point C to D, then finish with a
cut from B to D.
The cut is done on the right hand side as
a mirror image, Figure 5.
Locate the necessary cuts for the tailgate liner
by starting with the outside corner of the liner,
measure a distance of 0.375”, 9.5mm inboard,
then 0.875”, 22.2mm, down.
The cut is done on both sides,
as a mirror image.
1
0.18”,
4.8mm
2.6”, 66.7mm
2.6”, 66.7mm
2.5”,
63.5mm
2.5”,
63.5mm
B
D
C
A
0.375”, 9.5mm
0.875”,
22.2mm
CAUTION: Move the bed liner away
from the truck sheet metal, or remove
the liner from the truck so that the
truck bed is not damaged.
CAUTION: Move the tailgate liner away
from the truck sheet metal, or remove
the liner from the truck so that the
truck bed is not damaged.
CAUTION: Move the tailgate liner away
from the truck sheet metal, or remove
the liner from the truck so that the
truck bed is not damaged.
2
3
4
Holes are necessary in the drop in liner for the bed cover rail drain tubes.
A 7/8”,[0.875”, (22mm)], diameter hole needs to be centered on the first
rib from the edge. The hole will be 2.875”, 73mm, up from the floor.
The hole is cut on both sides, as a mirror image.
Centered on
the first rib.
Diameter =
7/8” [0.875”,
22mm]
2.875”,
73mm
Fig. 5
5
If the bed rail caps are not trimmed in the rear
/tailgate section, cut using the scribed lines as
a guide to expose the area shown.
Perform this operation on both sides of the
pickup box.
