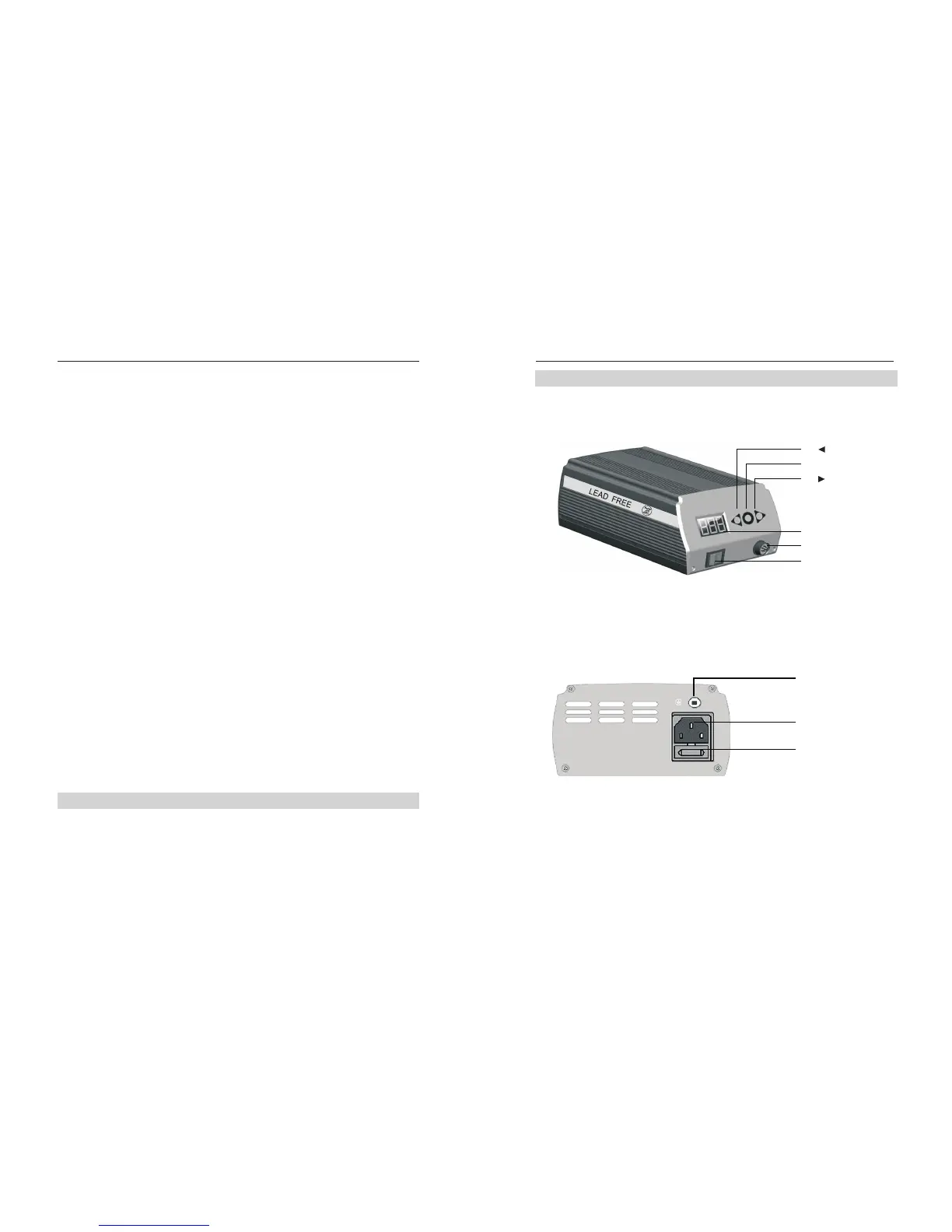

Part Names
①
②◎
③
④
⑤
⑥
⑦
⑧
⑨
Reduce
Function
Increase
Display window
Iron socket
Power Switch
Grounding Socket
Power Socket
Fuse
9
Problem 2: The tip does not heat up. S- E is displayed.
1.Check if the iron cord loose? If yes, please re-connect.
2.Check if the cord and connection plug are broken. Please refer to High
frequency lead damage.
3.Check the sensor, please refer to Heater and Sensor damage.
Problem 3：The tip heats up inter mittently
1.Check if the iron cord is loose? If yes, please re-connect.
2. Check if the cord and connection plug are broken. Please refer to High
frequency lead damage
Problem 4：Solder don't wet the tip
1.Check if the tip temperature too high, if yes, set to proper temperature.
2.Check if the tip was cleaned, if no see “Maintenance of Tip”
Problem 5：The tip temperatur e is too low
1.Check if the tip coated with oxide, see “Maintenance of Tip”.
2.Check if the iron calibrated correctly, please recalibrate.
Problem 6：Heater error H-E is displayed
1.Check if there is a tip on the iron; if not, insert a tip in the iron.
2.Check if the cord and connection plug are broken. Please refer to High
frequency lead damage
3.Check the sensor, please refer to Heater and Sensor damage.
Problem 7:Temperature display flashes
1.Check if the cord is broken. Please refer to High frequency lead
damage.
2.Check if the soldering point is too large, if yes, please use another
soldering station with higher power consumption.
Problem 8：Can't set the temperatur e
1.Checks if the temperature has been locked by password, if yes then
unlock it.
2.If you forget the password, please initialize the password, see
■Password Setting.
Check the heater, sensor and lead damage
Pull the iron plug out of station, Measure the resistance value between pin
and pin:
If the resistance value between A and B is not identical with the
resistance value listed below, heater, sensor or connection cord need be
replaced. Please follow up the procedure of Diamantle high frequency
