Wiring Details:

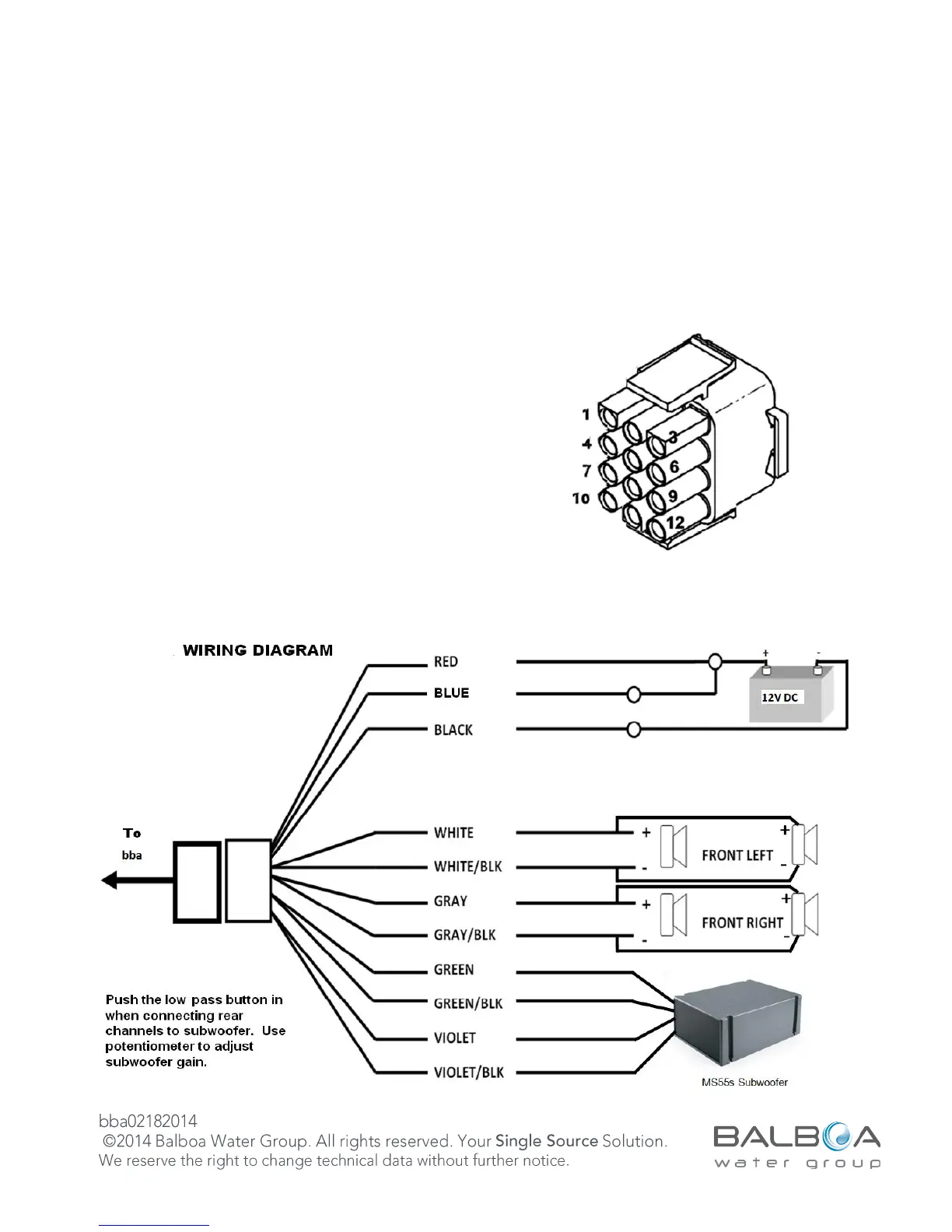

Use the wired plug end (Pigtail) provided to make power and speaker
connections according to the diagram below. Using this connector will make it
easy to disconnect the amplifier for adding additional features or service.
Removing the factory plug end will void warranty.
Wire Color Function
Red 1 B+ (+12VDC)
Green w/stripe 2 Rear Left Speaker-
Green 3 Rear Left Speaker+
BLANK 4 BLANK
White w/stripe 5 Front Left Speaker-
White 6 Front Left Speaker+
Blue 7 B+ (+12VDC)
Gray w/stripe 8 Front Right Speaker-
Gray 9 Front Right Speaker+
Black 10 Ground (Neg)
Violet w/stripe 11 Rear Right Speaker-
Violet 12 Rear Right Speaker+
