Rev20200511
c. Option 3:
VII. Electrical Connections:
1. Danger: Turn the spa breaker to OFF position.
2. This unit must be connected to dedicated UV/Ozone mating connector on the spa controller’s circuit board.
3. Electrical ratings are shown on the product label. This unit must be powered as rated only. Verify electrical ratings of
this unit and spa controller before making connections.
VIII. Bonding: This unit is provided with a grounding lug (19) and must be electrically bonded to the spa common bonding grid.
Connect the grounding lug with the spa common bonding grid with a #8 minimum solid copper wire.

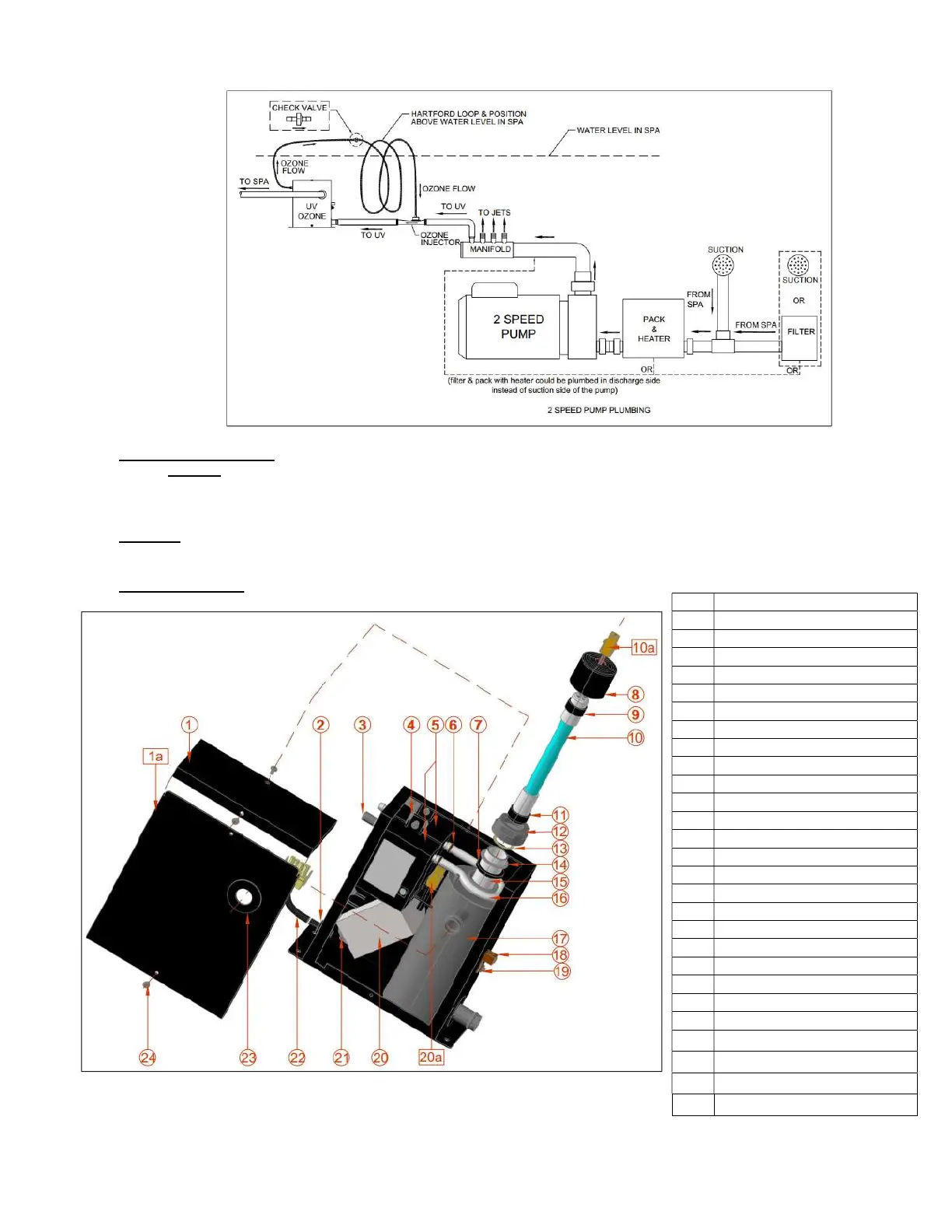

IX. Exploded drawing:
KEY DESCRIPTION
1 ENCLOSURE TOP COVER
1a ENCLOSURE FRONT COVER
2 STRAIN RELIEF
3* AIR FILTER
4** BRACKET FOR DUAL OZONE CELL
5*** OZONE CELL
6** OZONE HOSE CLAMP
7 QUARTZ SEAL GASKET
8 BOOT COVER
9 UPPER CUSHION
10 UV LAMP
10a LAMP CONNECTOR
11 LOWER CUSHION
12 COMPRESSION NUT
13 PLASTIC WASHER
14 COMPRESSION WASHER
15 QUARTZ TUBE
16** OZONE CONNECTION HOSE
17 REACTION CHAMBER
18 GROUND LUG
19 HEX NUT
20 ELECTRONIC BALLAST
20a BALLAST CONNECTOR
21 8-32x1/4” SCREW
22 POWER CORD
23 RUBBER WASHER
24 8-32x5/16” SCREW
*Item 3 as shown is for 2 ozone cells models. - **Item 4, 6, 16 are for models with 2 ozone cells only. - ***Item 5 as shown is for 2 ozone cell models
