V. Mounting:
a. This unit can be mounted on the spa floor or on the spa wooden frame with ozone outlet facing up.
b. The unit has two mounting tabs with 2x holes on each tab. Use 4x #8x1” screws to bolt the unit to the spa floor or spa
wooden frame.
c. Clearance required:
i. 9” minimum from the front of cover:
ii. 9” minimum from the top of cover
VI. Plumbing:
A. Use 3/4” clear flexible hoses & 3/4” hose clamps for both inlet and outlet connections.
B. Water inlet to be on the bottom of the unit.
C. This unit can be plumbed with one of the bellow options:

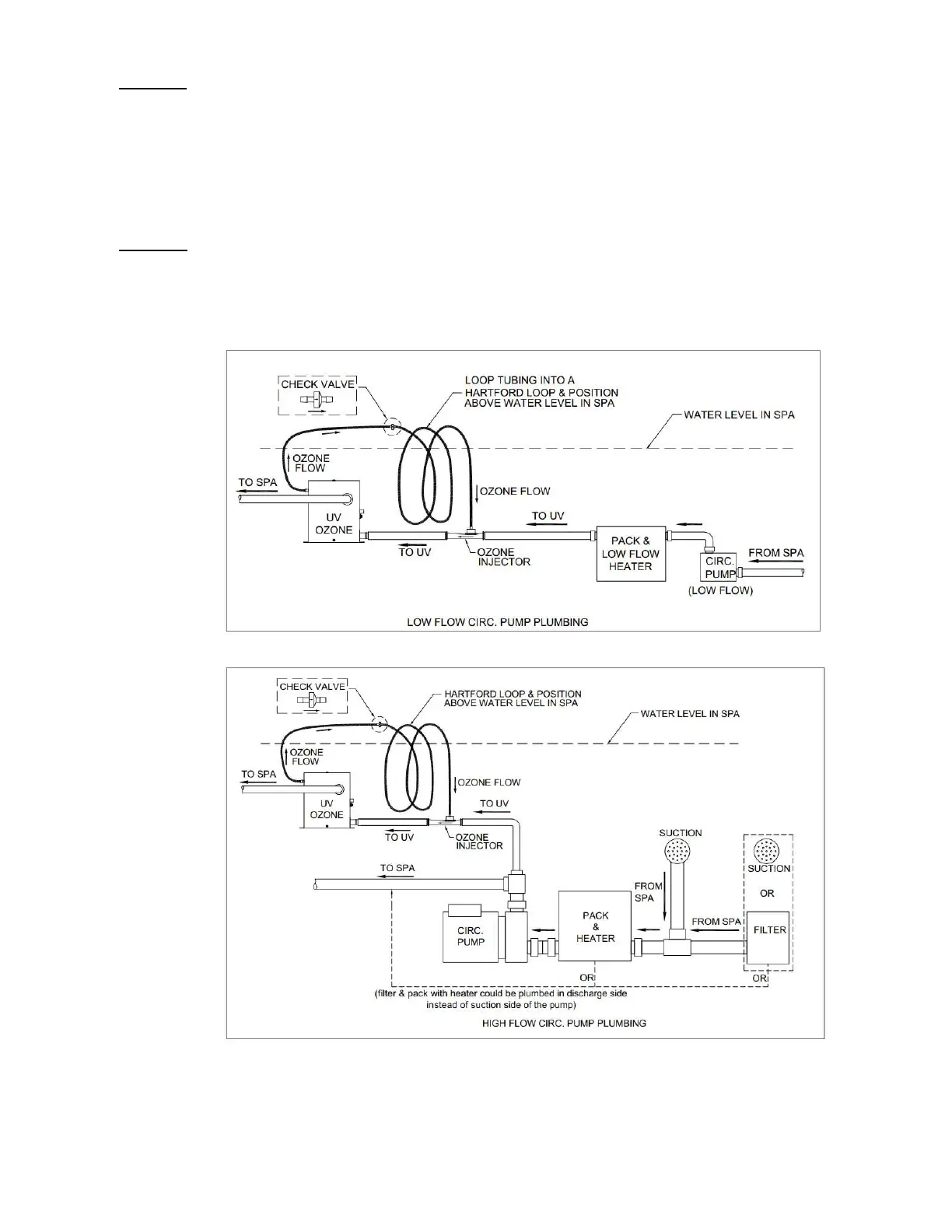

a. Option 1:
b. Option 2
To Next Page
