Vigil 3 Amplifiers
Installation Instructions
6
Vigil 3 Amplifier Installation Manual issue 1
In order to use the Vigil 3 amplifiers with a BVMBC battery
charger module the AUX output connection of up to 5 amplifier
modules must be connected to the BVMBC. For more
information please see the BVMBC installation manual.
2.1 E
XAMPLE
1: A-B D
UAL
C
IRCUIT

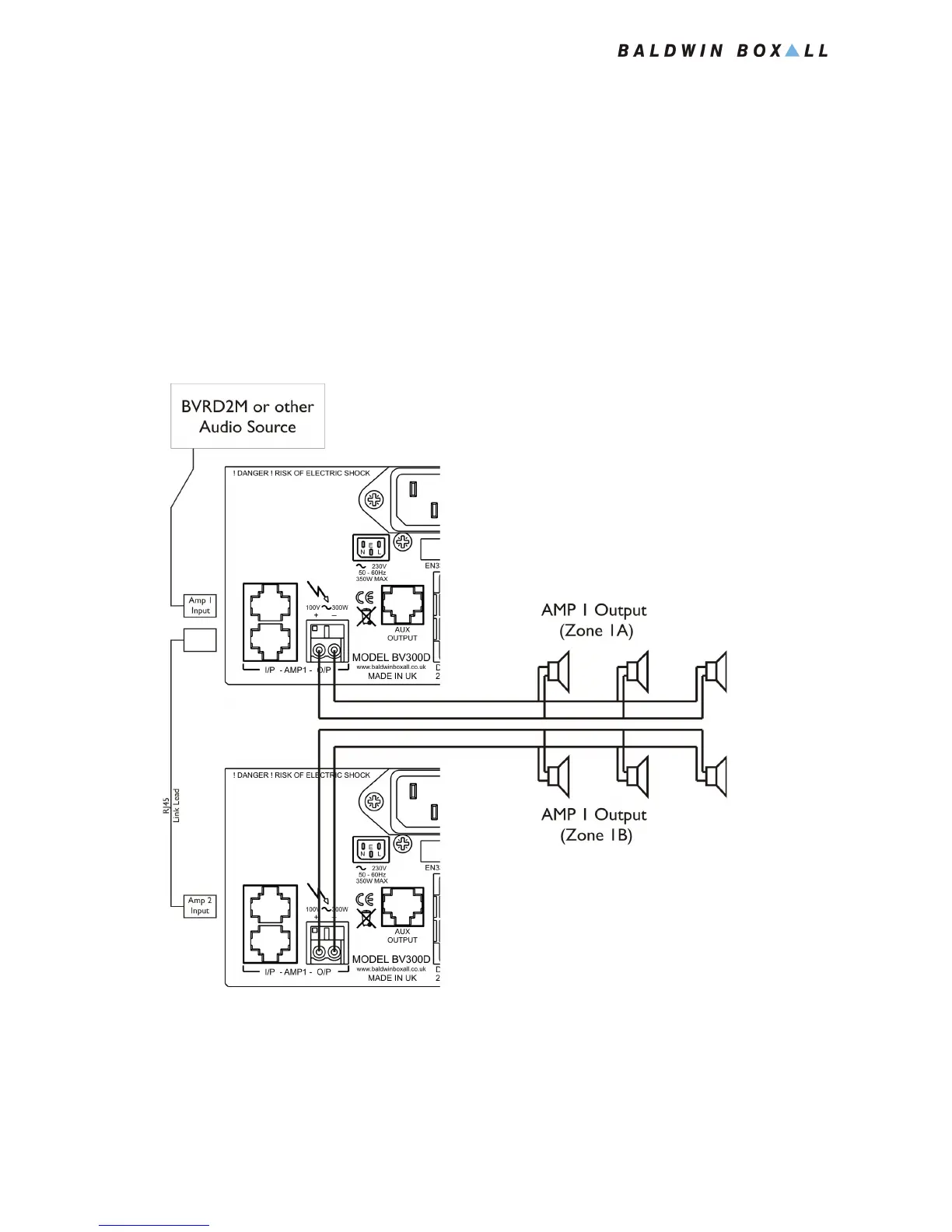

Figure 2.1 — Both Amplifiers use the same Input Signal
To Next Page
