Baldwin GPS2600 - Page 3

3
❏❏
❏❏
❏

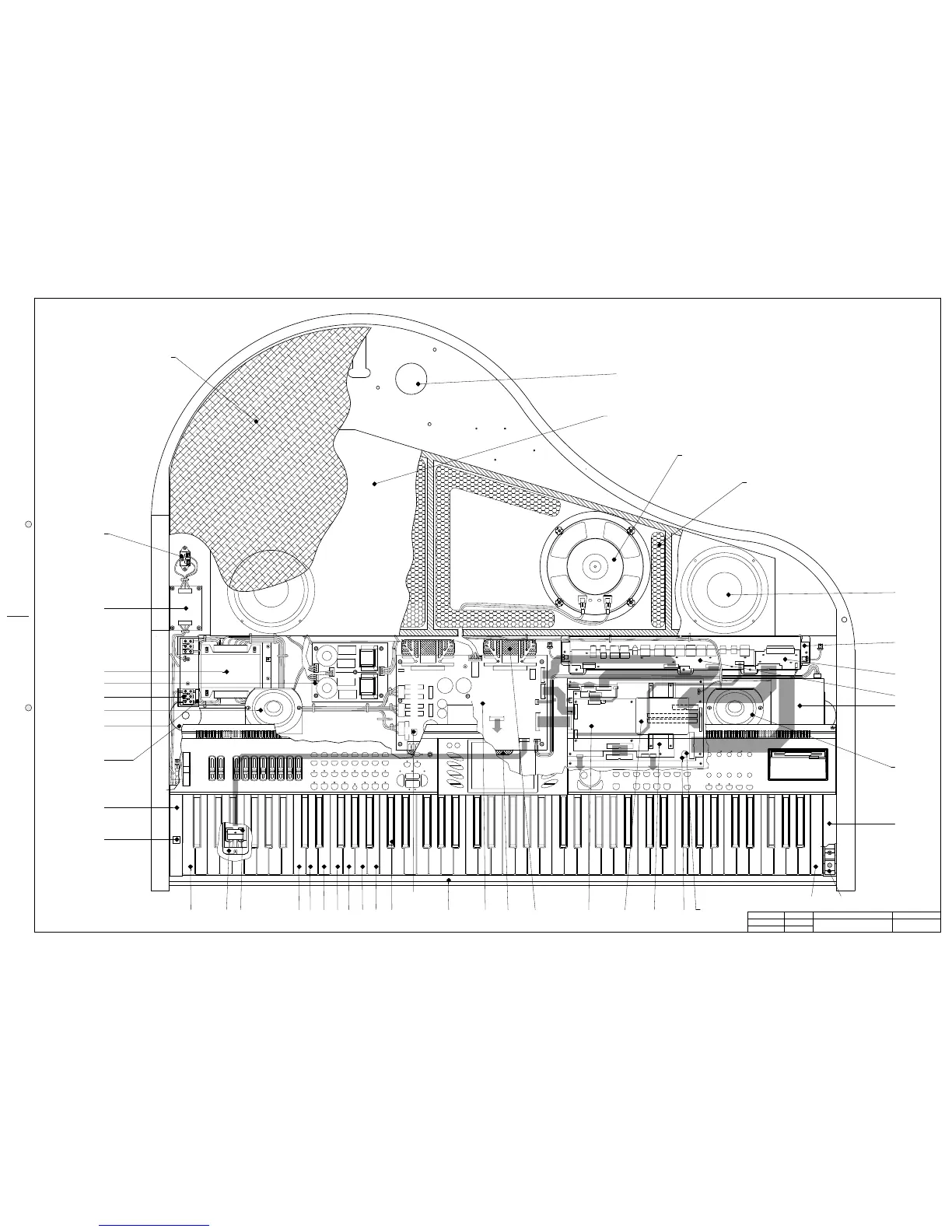

This drawing reproduce GPS2600 assembly only. Most part of GPS3600 model are the same or similar.
Pcb#315102/2
9
12
10/11
8
7
6
3
4
5
2
CN2
1914
13
1615 17 18 20 21 22 23 24
Lcd Contrast
adjust
Pcb#310651
CN3
CN4
CN2
CN3 CN2
VR2
CN1
CN1
CN4
1
CN1
43/44
Pcb#315103/1
APP.
CKD
DRW
REV:
DISK:
DWG#
PRT:
PCB#
GENERALMUSIC S.p.A. ITALY
ALL RIGHTS ARE RESERVED, NO COPIES
WRITTEN CONSENT BY GENERALMUSIC.
OR REPRODUCE THIS DOCUMENT WITHOUT
G.Boccato
I.Battelli
M.Galanti
550199
61/2
04/07/00
PS2600 Internal Assembly
for descriptions and codes see REF column
on Spare Part List further on this manual.
25 26 27
28
Aftertouch
adjust
29 30
CN7
CN6
panel interface
board CN7
to controls
CN5
CN9
CN8
CN13
CN11
to Keyb. Interface Board CN6
Pcb#315092/1
CN4
CN7
CN2
CN6
CN1
CN3
CN5
CN10CN11
to controls CN9
CN2
CN1
to display
CN2
CN4
CN3
CN12
Pcb#315150/1
to Keyb. Int. B. CN7
SIMM17
SIMM18
CN15
CN10
VR1
CN8
CN16
CN3
Pcb#315103/1
CN1
CN4
3332
34
6
35
37
36
38
31
41
40
42
39
