Bally ATTACK FROM MARS - Fuse List and Specifications; Power Driver Board Fuses; Audio Visual and Line Filter Fuses

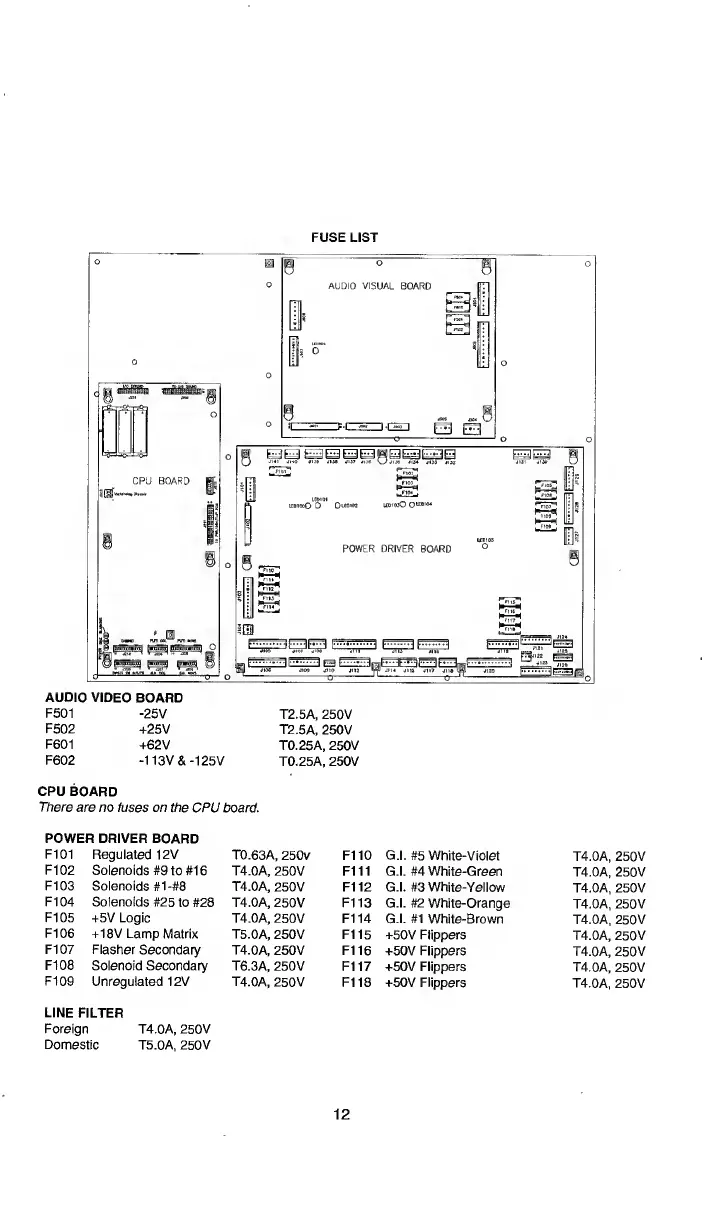

FUSE LIST
AUDIO VIDEO BOARD
F501
-25V
F502
+25V
F601
+62V
F602
-1
13V
&
-125V
T2.5A, 250V
T2.5A,
250V
T0.25A, 250V
T0.25A, 250V
CPU
BOARD
There are
no fuses on the CPU
board.
POWER
DRIVER BOARD
F101
Regulated 12V
T0.63A,
250v
F1 10
G.l. #5 White-Violet
T4.0A, 250V
FI
02
Solenoids #9
to #16
T4.0A,
250V
Fill
G.l. #4 White-Green
T4.0A,
250V
FI
03
Solenoids
#1-#8
T4.0A,
250V
F1 12
G.l. #3 White-Yellow
T4.0A,
250V
FI
04
Solenoids #25
to #28
T4.0A,
250V
F113
G.l. #2 White-Orange
T4.0A.
250V
FI
05
+5V Logic
T4.0A,
250V
F1 14
G.l. #1
White-Brown
T4.0A, 250V
FI 06
+18V Lamp
Matrix
T5.0A,
250V
F1
15
+50V
Flippers
T4.0A. 250V
FI 07
Flasher
Secondary
T4.0A,
250V
F1
16
+50V
Flippers
T4.0A, 250V
FI 08 Solenoid Secondary
T6.3A,
250V F1 17
+50V Flippers
T4.0A,
250V
FI 09 Unregulated 12V
T4.0A,
250V F1 18
+50V Flippers
T4.0A,
250V
LINE
FILTER
Foreign
T4.0A, 250V
Domestic
T5.0A, 250V
12
