MODULARM CORPORATION
61 MALL DRIVE, COMMACK, NY 11725 TEL 631-864-3860 ∙ FAX 631-864-3863
MODEL 75, 75B & 75C INSTALLATION & OPERATING INSTRUCTIONS

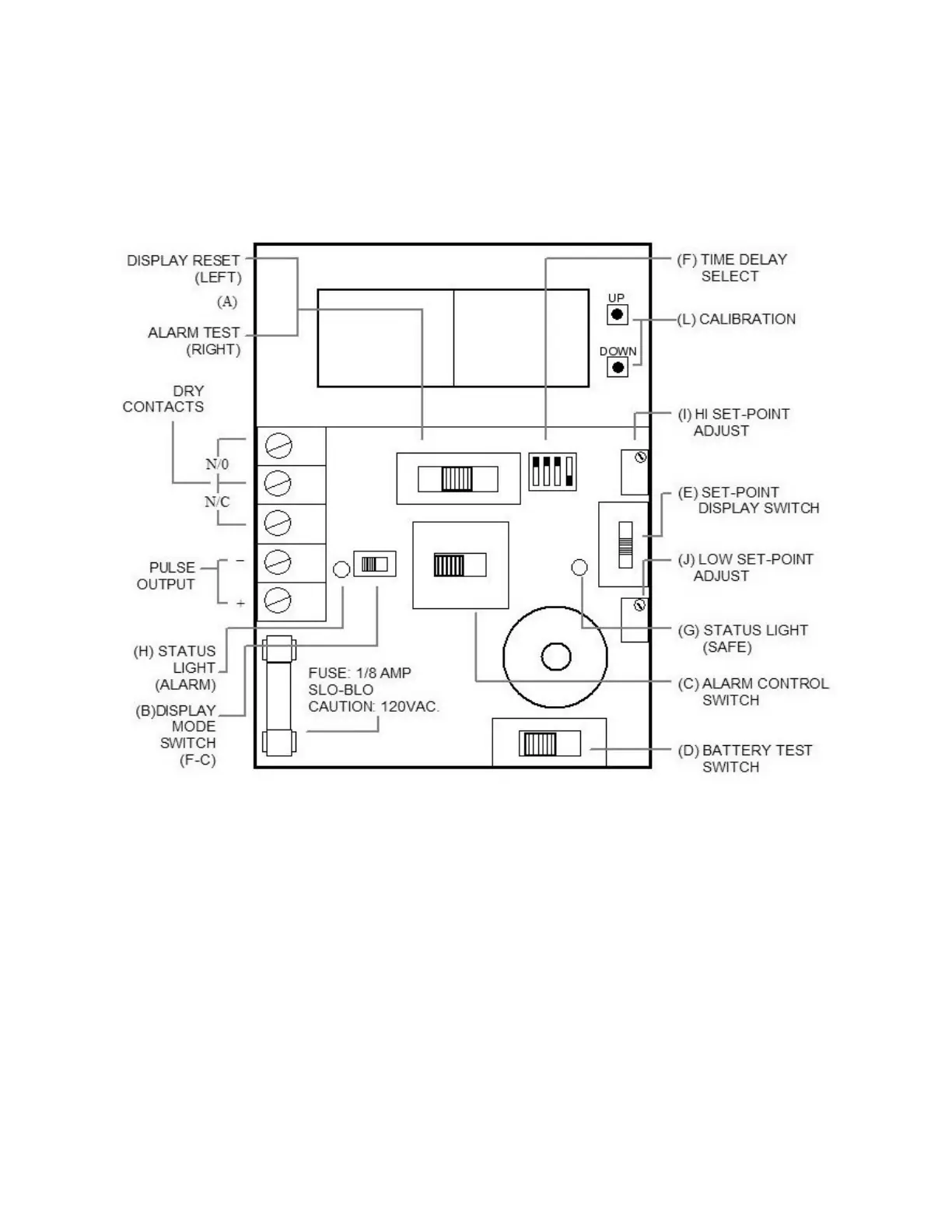

MODULARM MODEL 75 (B)
QUICK SETUP INSTRUCTIONS
1) SLIDE DISPLAY RESET SWITCH (A) TO LEFT TO STOP DISPLAY FROM BLINKING.
2) SELECT FAHRENHEIT OR CENTIGRADE WITH DISPLAY MODE SWITCH (B).
3) SELECT AND ADJUST HIGH AND LOW SETPOINTS WITH SETPOINT DISPLAY SWITCH
(E) AND HIGH AND LOW SETPOINT ADJUSTS (I & J).
4) SELECT TIME DELAY WITH TIME DELAY SELECT SWTICH (F).
5) ALARM CONTROL SWITCH MUST BE IN RIGHT HAND (SAFE) POSITION WHEN
TEMPERATURE IS OKAY FOR NORMAL OPERATION.
