Balt 27614 Beta - Identify and Separate Parts and Hardware; Attach Casters to Base; Secure Pole to Base; Mount Main Platform

3
#27614

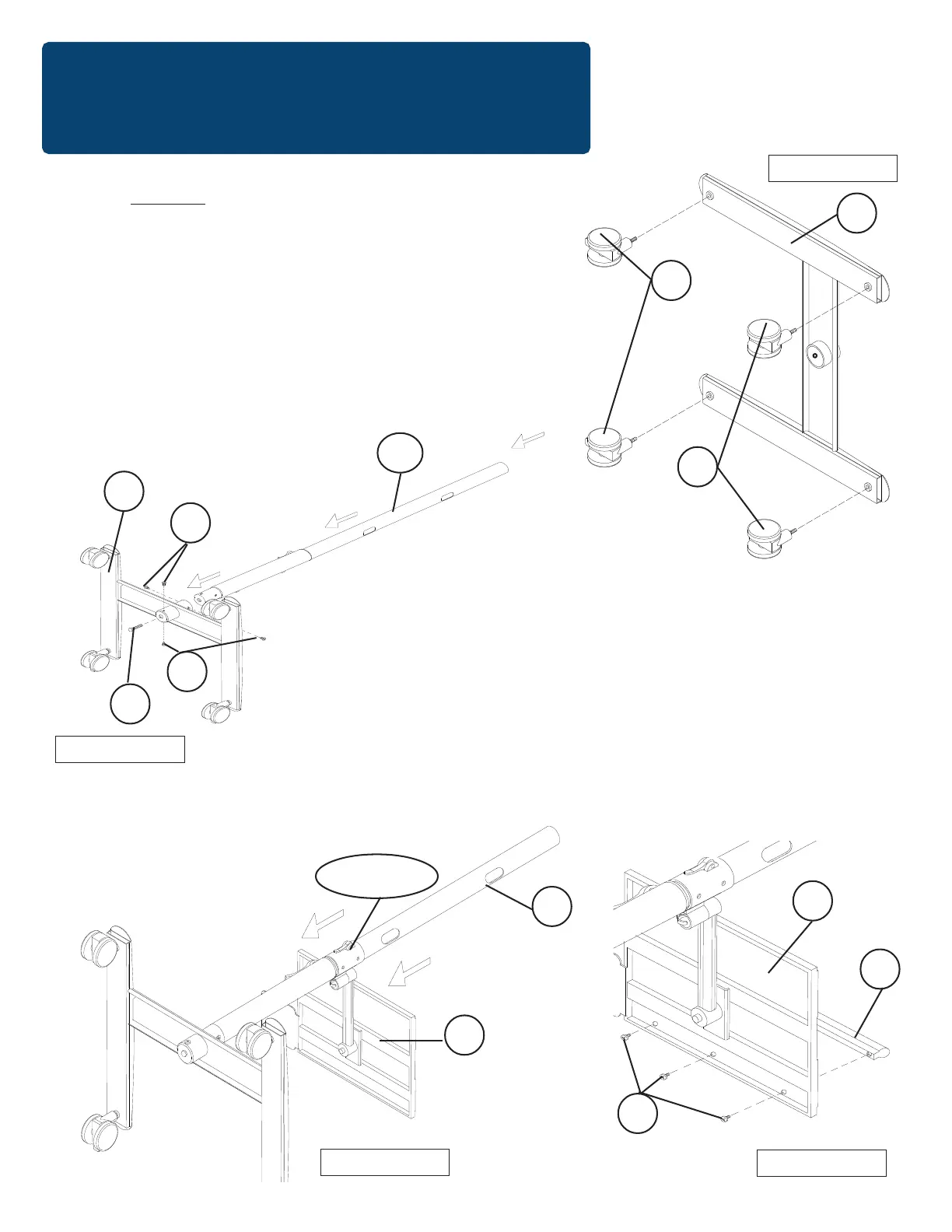

Assembly Diagram
Identify and Separate all the Parts and Hardware.
Illustration # 1
R EAD T HROUGH I NSTRUCTIONS FROM BEGINNING
TO END BEFORE STARTING TO ASSEMBLE UNIT .
1.)
2.)
Insert the Pole (P2) into the Base (P1) and secure to the Base
using one long Bolt (D) and four small Screws (G) as
shown in illustration #2.
4.)
Screw in two Locking Casters (A) into the bottom front of
the Base (P1) and two Non-Locking Casters (B) as shown
in Illustration # 1. Tighten casters with Caster Wrench (F).
3.)
Illustration # 3
P1
A
B
Open the clamp up on the Main Platform (P3) and slide
the assembly down the Pole (P2). Make sure the
friction button inside the clamp is retracted. When the
Main Platform is in position, lock the clamp lever down
to secure it in place as shown in illustration #3.
Attach the Book Stop (L) to the Main Platform (P3) using
three Book Stop Screws (K) as shown in illustration #3a.
P3
Clamp Lever
P2
Illustration # 3a
P3
L
K
Illustration # 2
P1
P2
G
D
G
