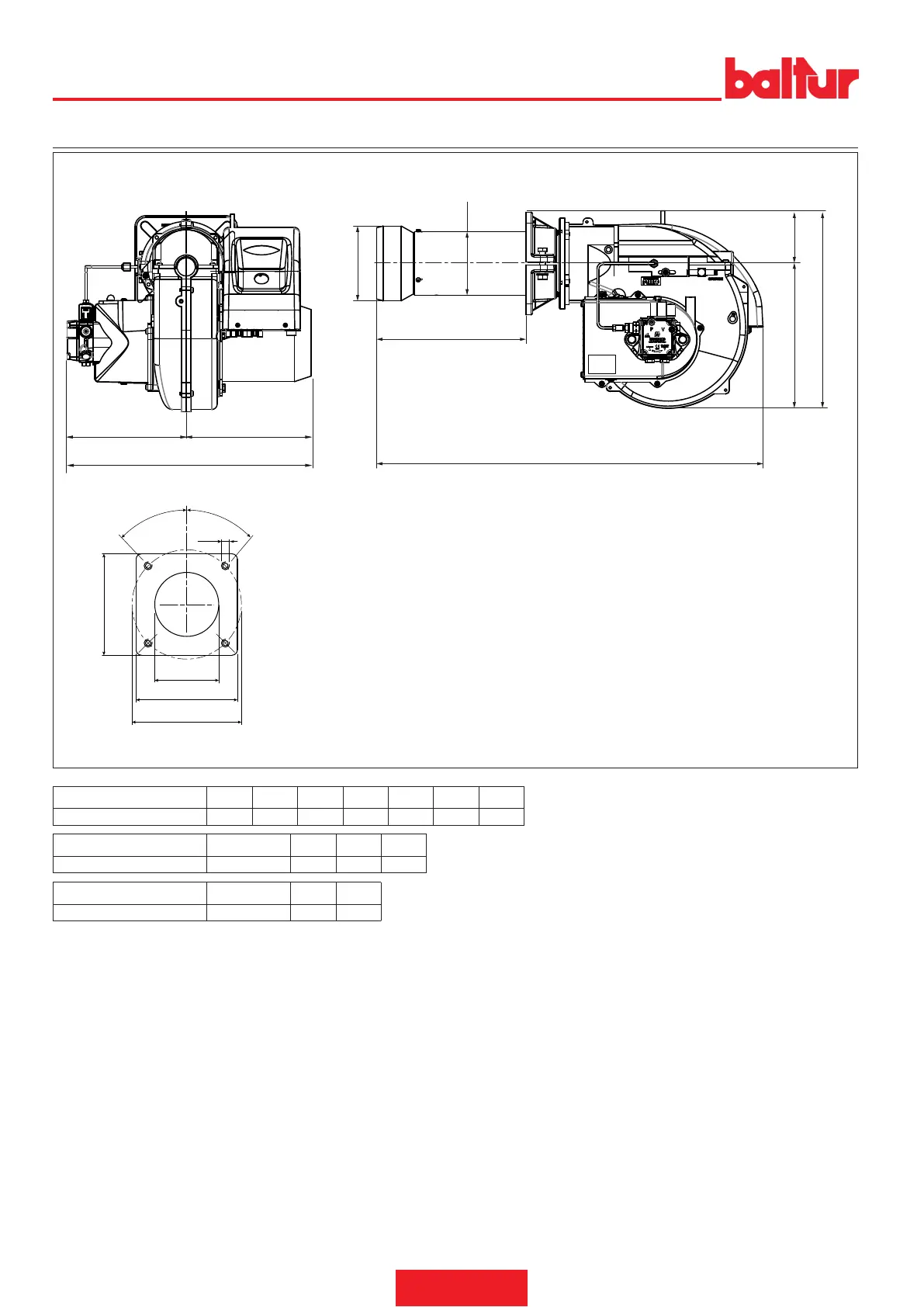

baltur TBL 18 - Page 44


B1
B
B2
Ø E
Ø F
D
C
A1 A2
A
M
45°
45°
I
Ø N
I
Ø L
35680010N2
Model A A1 A2    
TBL 35 440 215 225 365 260 105 805
Model D E Ø F Ø I
TBL 35 120 ÷ 370 150 135 215
Model LØ M N
TBL 35 200 ÷ 245 M12 136
