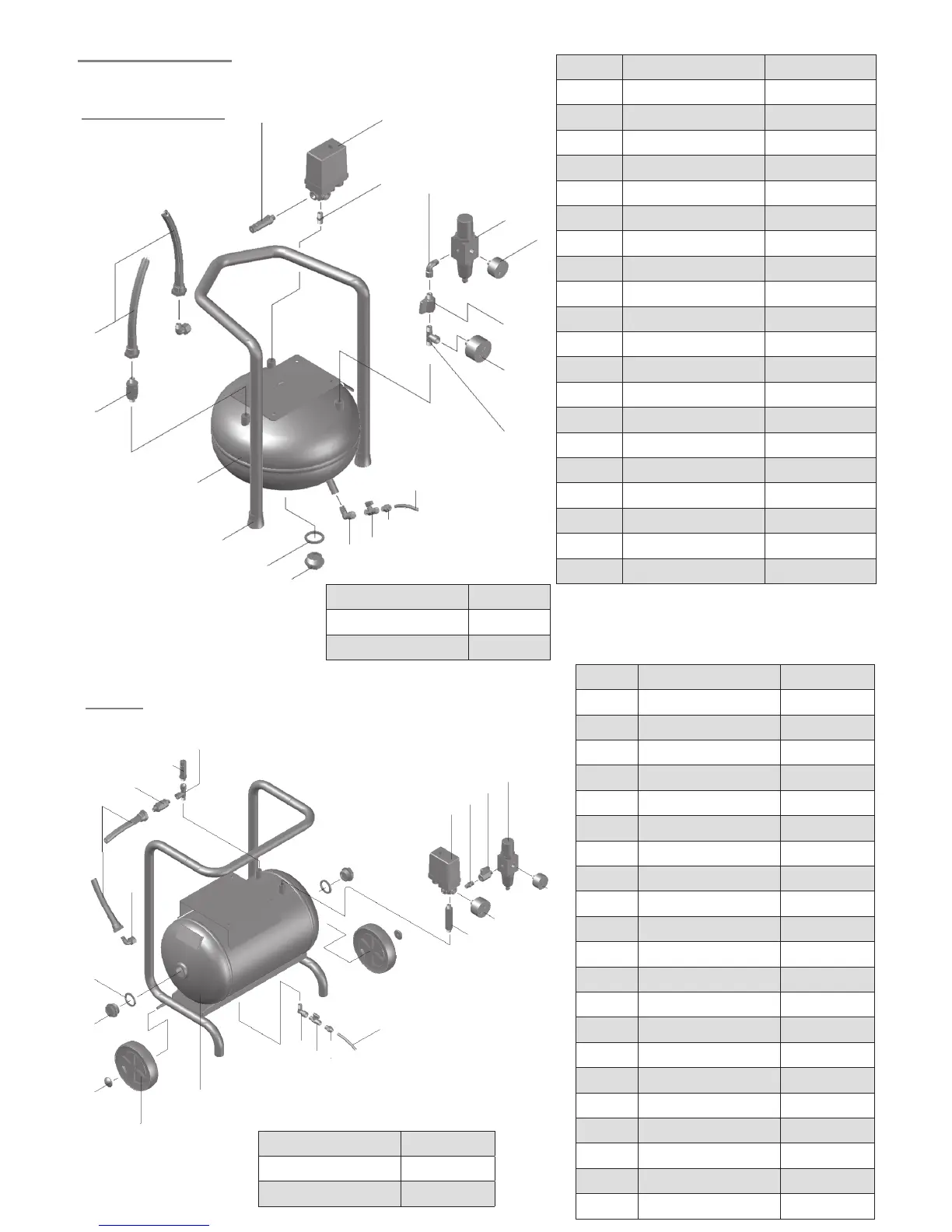

Bambi BB15V - Unit Diagrams

Unit Diagrams
BB8 / BB15V
BB15
RefNo. DescriptionBB8/BB15V Part no.
1 Airreceiver-8/15litre BPB0468/0470
2 Non return valve BPB1086
3 Deliveryhose-200mm BPB1102
4 Reliefvalve BPB1084
5 Pressure switch BPB1074
6a
[BB8] 1/4x1/4connector BPB1284
6b
[BB15V] 1/4x1/4connector BPB1078
7 1/4MFelbow BPB1139
8 Filter regulator unit BPB1080
9
40mmpressuregauge BPB1077
10 On/off valve BPB1079
11 50mm pressure gauge BPB1081
12
1/4MFMTee BPB1095
13 On/off valve BPB0895
14
6mmDraintube BPB0203
15 Inspection plug BPB0243
16 Inspection plug seal BPB0502
17
Rubberfoot BPB0247
18 Outlet elbow BPB1283
19
1/4-6mmadapter BPB0043
RefNo. Description Part no.
1 Airreceiver-15litre BPB0469
2 Wheel BPB1144
3 Wheel cap BPB1108
4 Inspection plug BPB0243
5 Inspection plug seal BPB0502
6
Deliveryhose-300mm BPB1087
7 Non return valve BPB1086
8
Reliefvalve BPB1084
9 1/4tee BPB1109
10 Pressure switch BPB1074
11
1/4x1/4connector BPB1078
12 On/off valve BPB1079
13 Filter regulator unit BPB1080
14
40mmpressuregauge BPB1077
15 50mm pressure gauge BPB1081
16
1/4extensionpiece BPB0152
17 On/off valve BPB0895
18
6mmDraintube BPB0203
19 Outlet elbow BPB1283
20
1/4MFElbow BPB1139
21 1/4-6mmAdapter BPB0043
1
2
3
4
5
6a
6b
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Description Part no.
Pressure switch BPB0550
Unloader valve BPB1205
On machines fitted with an autodrain:
Description Part no.
Pressure switch BPB0550
Unloader valve BPB1205
On machines fitted with an autodrain:
18
19
7
19
2120
