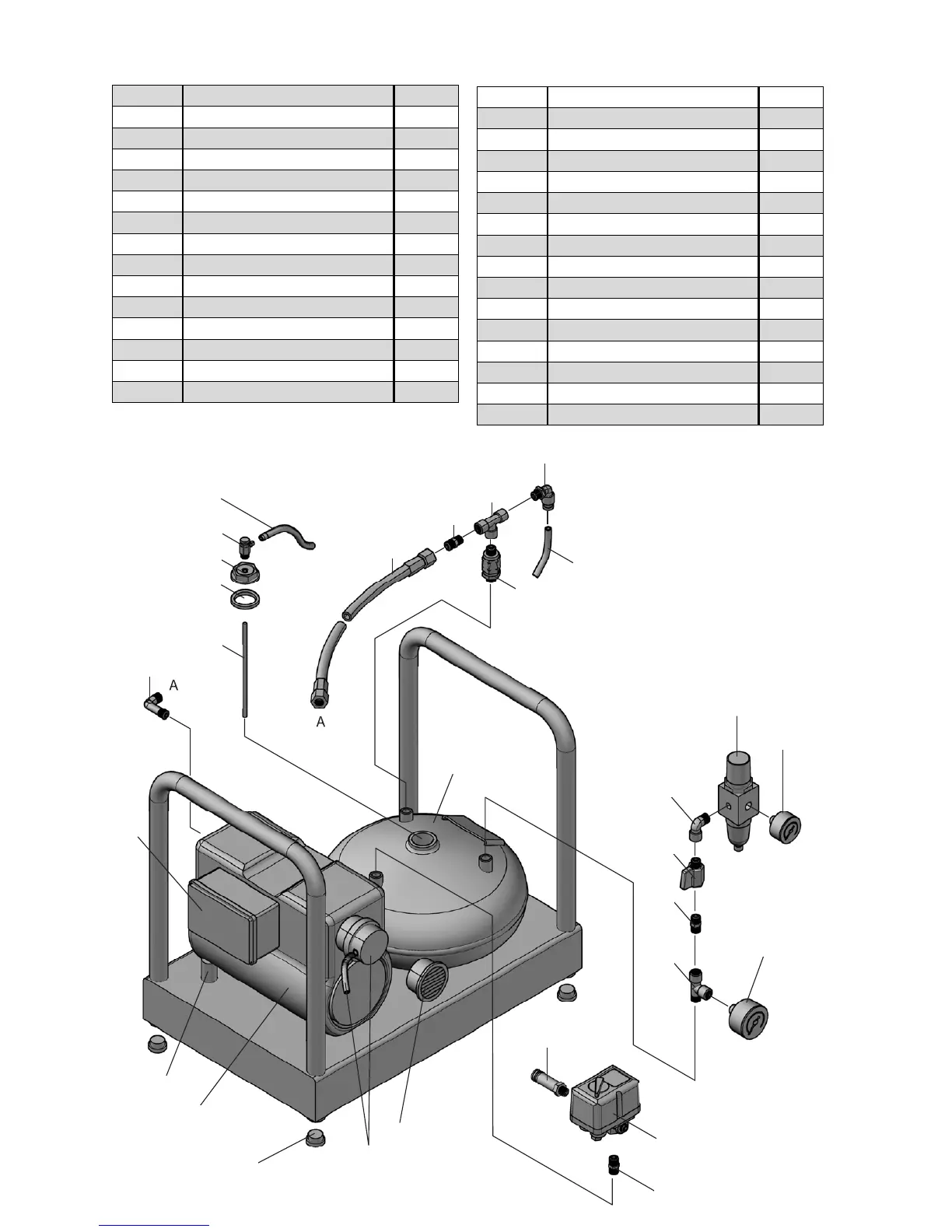

Bambi PT8 - Page 7

PT8
Ref No. Description Part no.
1 Pump motor BPB1238
2 Pump motor filter BPB1259
2a Pump motor filter element BPB1263
3 Frame BPB1249
4 Motor support BPB1261
5 Insert BPB0078
6 Drain tap BPB0066
7 Drain pipe BPB0414
8 Pressure relief valve BPB1084
9 Pressure switch BPB1074
10 Adapter BPB1078
11 On/off tap BPB1079
12 Regulator BPB1080
13 40mm line pressure gauge BPB1077
14 Elbow M/F BPB1139
15 Tee piece MFF BPB1109
16 Connector BPB0810
17 50mm tank pressure gauge BPB1081
18 Delivery pipe BPB1258
19 Connector BPB1242
20 Tee piece MMM BPB1239
21 Non-return valve BPB1086
22 Elbow for air pipe BPB0043
23 Air pipe BPB0203
24 Elbow BPB1257
25 Inspection plug BPB0255
26 Inspection plug seal BPB0502
27 Siphon tube BPB0028
28 Capacitor box BPB1236
29 Capacitor BPB1260
1
5
3
7
8
9
13
12
14
15
16
17
18
19
2
10
6
4
11
20
21
23
22
24
25
26
27
28/29
2a
5
