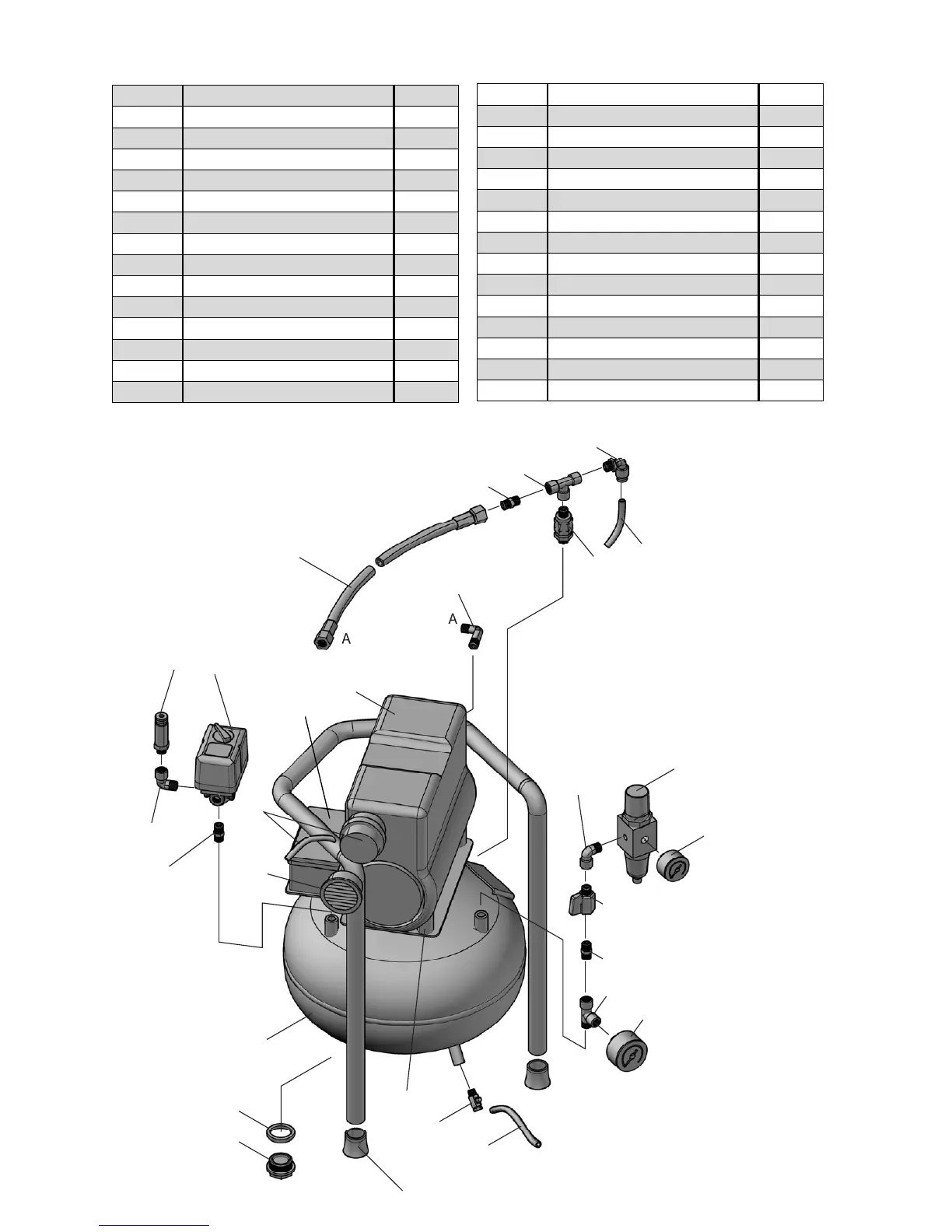

Bambi PT8 - Page 8

PT 15 / 24
1
3
5
7
8 9
13
12
14
15
16
17
18
19
2a
10
6
4
11
20
21
23
22
24
14
25
26/27
2
6
Ref No. Description Part no.
1 Pump motor BPB1238
2 Pump motor filter BPB1259
2a Pump motor filter element BPB1263
3 Tank [PT15] BPB0470
3a Tank [PT24] BPB0472
4 Inspection plug BPB0243
5 Inspection plug seal BPB0502
6 Drain tap BPB0066
7 Drain pipe BPB0414
8 Pressure relief valve BPB1084
9 Pressure switch BPB1074
10 Adapter BPB1078
11 On/off tap BPB1079
12 Regulator BPB1080
13 40mm line pressure gauge BPB1077
14 Elbow M/F BPB1139
15 Elbow BPB1257
16 Connector BPB0810
17 50mm tank pressure gauge BPB1081
18 Delivery pipe BPB1258
19 Connector BPB1242
20 Tee piece MMM BPB1239
21 Non-return valve BPB1086
22 Elbow for air pipe BPB0043
23 Air pipe BPB0203
24 Foot BPB0247
25 Tee piece BPB1109
26 Capacitor box BPB1236
27 Capacitor BPB1260
