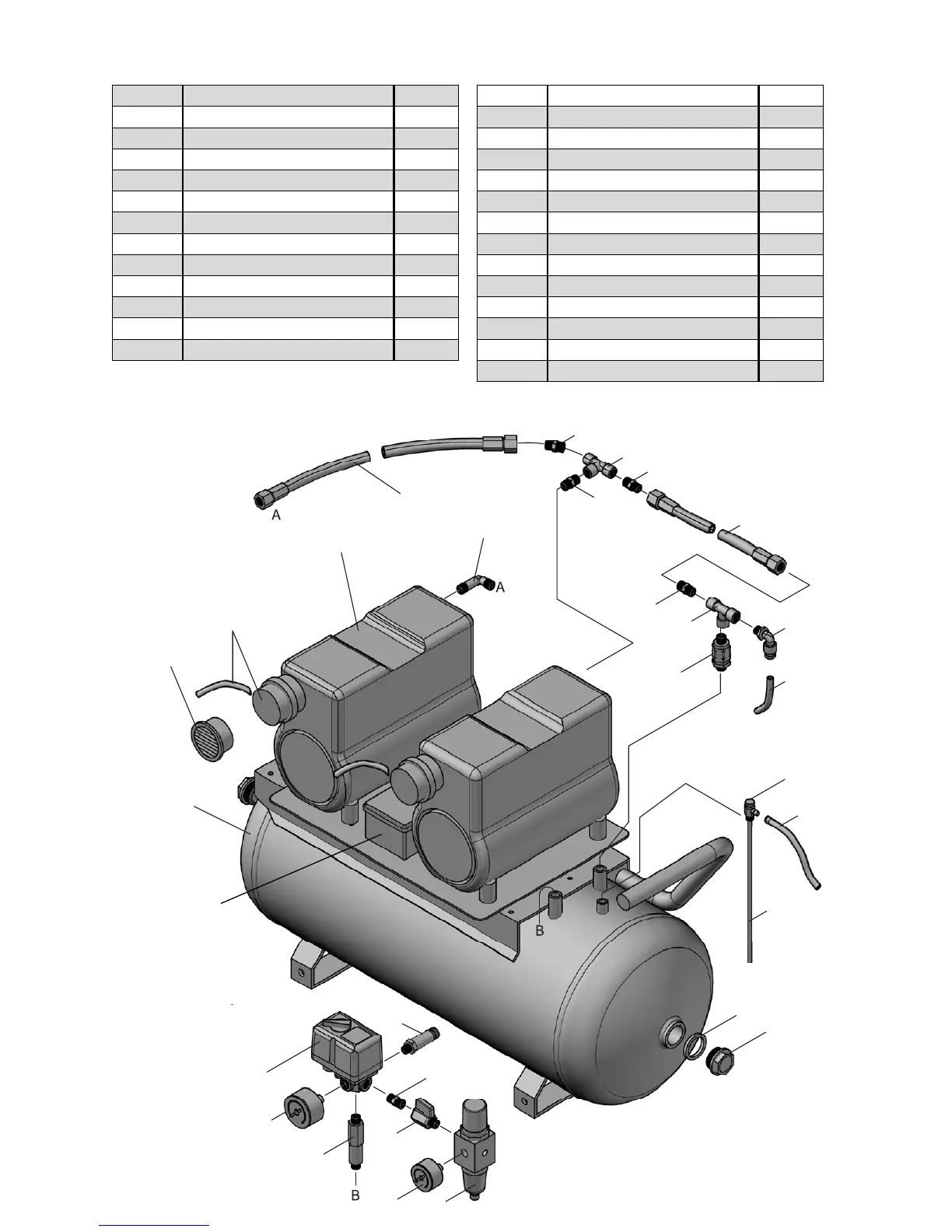

Bambi PT8 - Page 9

PT50D
Ref No. Description Part no.
1 Pump motor BPB1238
2 Pump motor filter BPB1259
2a Pump motor filter element BPB1263
3 Tank BPB0474
4 Inspection plug BPB0243
5 Inspection plug seal BPB0502
6 Drain tap BPB0066
7 Drain pipe BPB0414
8 Pressure relief valve BPB1084
9 Pressure switch BPB1074
10 Adapter BPB1078
11 On/off tap BPB1079
12 Regulator BPB1080
13 40mm line pressure gauge BPB1077
14 Siphon tube BPB0028
15 Connector BPB0152
16 50mm tank pressure gauge BPB1081
17 Delivery pipe BPB1258
18 Connector BPB1242
19 Tee piece MMM BPB1239
20 Non-return valve BPB1086
21 Elbow for air pipe BPB0043
22 Air pipe BPB0203
23 Elbow BPB1257
24 Capacitor box BPB1236
25 Capacitor BPB1260
