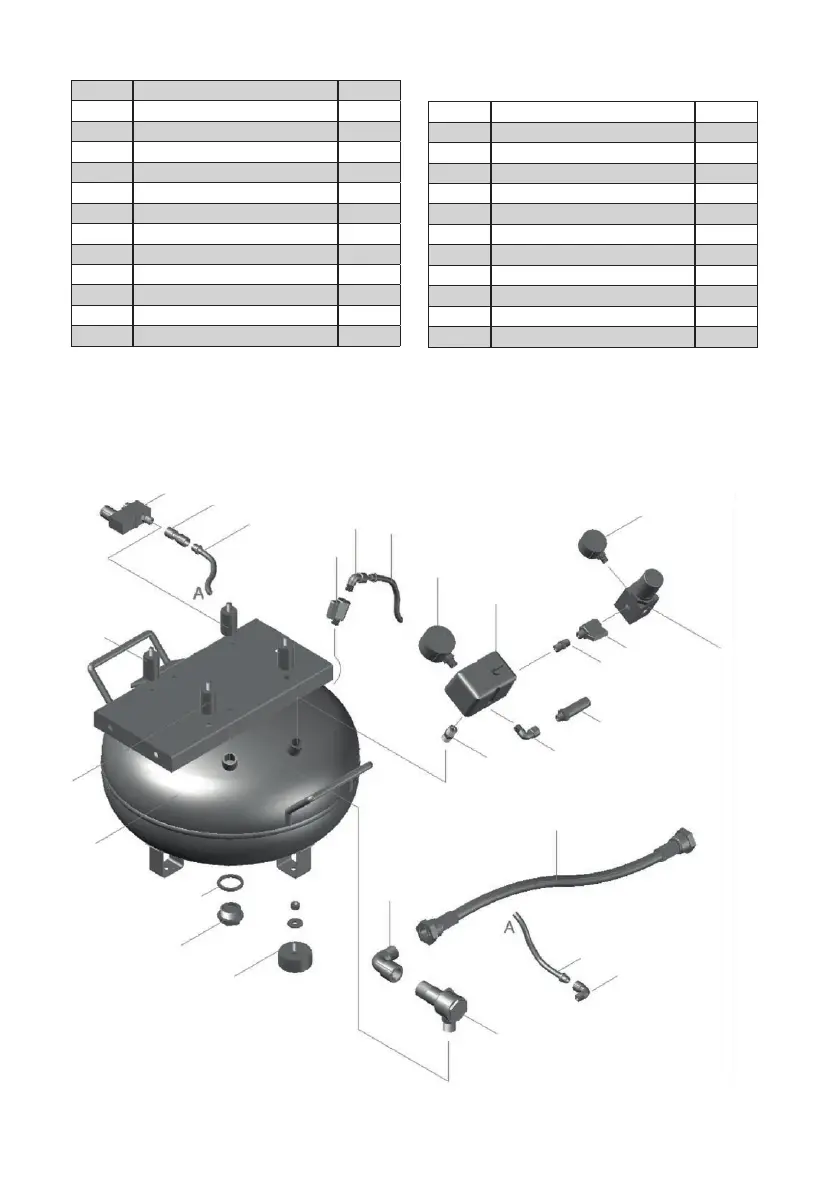

VT75
Ref No. Description Part no.
1 Rubber foot BPB0601
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 24 litre tank BPB0260
5 30mm rubber mounting BPB1296
6 Solenoid c/w cable BPB0545
7 1/8 x 6mm push fitting BPB0154
8 6mm black nylon tube BPB0203
9 Drain valve tap BPB0281
10 3/8 x 10mm tube elbow BPB0277
11 Red nylon drain tube BPB0284
12 50mm tank pressure gauge BPB0658
13 Pressure switch BPB0550
14 40mm line pressure gauge BPB0657
15 Pressure regulator BPB0510
16
18 Safety valve BPB1084
19 1/4 M/F elbow BPB1139
20 3/8 adaptor BPB0283
21 Delivery pipe BPB0508
22 1/8 x 6mm elbow push fitting BPB0044
23 3/8 Elbow BPB0282
24 Non-return valve BPB0656
1
3
5
7
8
9
10
11
13
12
14
15
16
18
19
20
21
22
23
24
2
4
5
8
6
1/4 x 1/4 adaptor BPB1078
