Operating
Manual

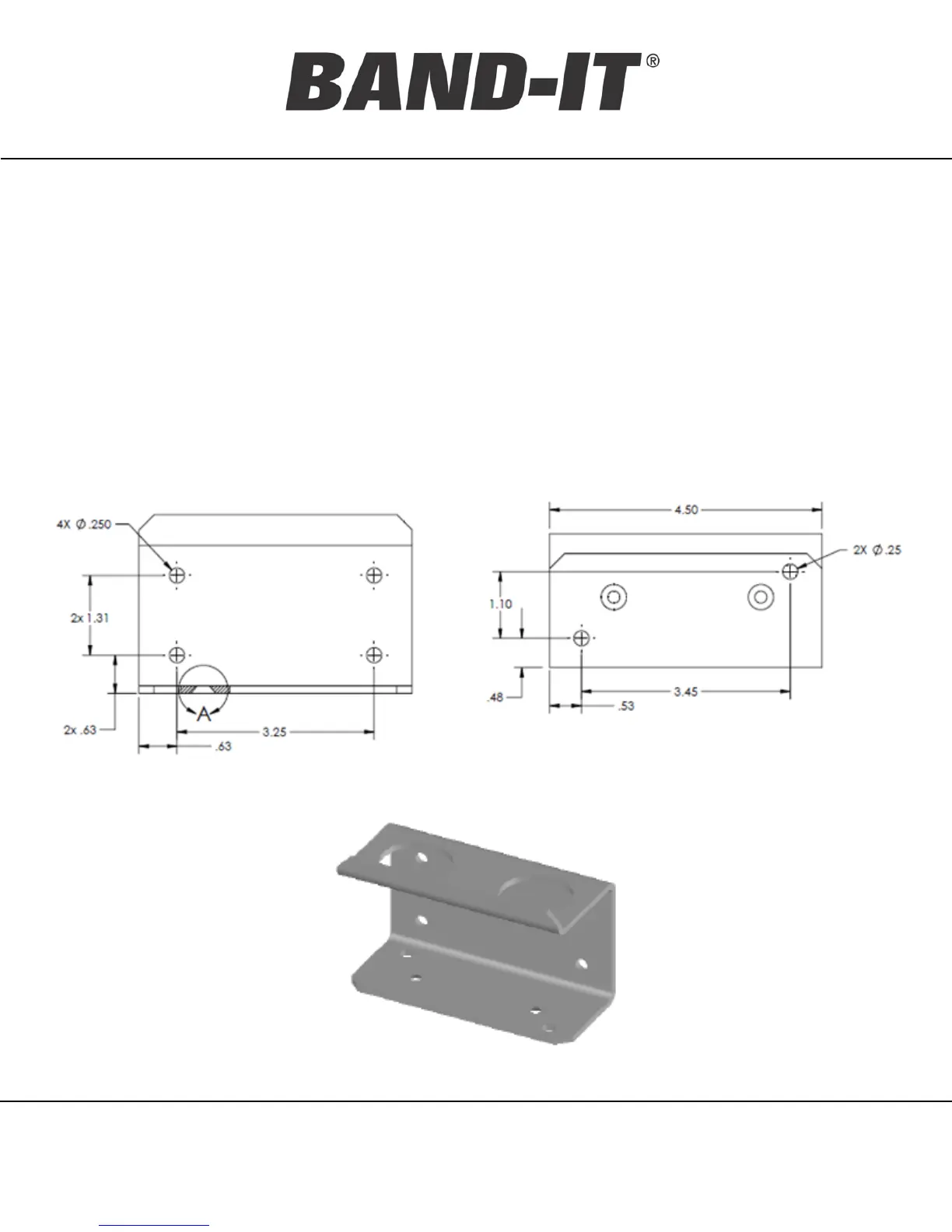

Hole layout for mounting to a wall
Regulator Mounting Holes
Hole layout for mounting to a bench
For proper performance the air control module must be mounted and operated in a horizontal
position as shown on the previous page. Below is the layout for the mounting hole locations
dimensioned in inches.
