Maintenance: Cutter Blade Inspection & Replacement
Removal & Installation:
1) Remove the four M4 screws with a 3mm hex
key. This can occur with the tool fully
assembled.
2) Pull the cutter blade off of the two alignment pins
in the tool head.
3) Inspect cutter blade for chips and excessive
wear on cutting edge. Replace if blade is
causing unacceptable clamp cut-off. Clean any
shavings or debris that have built up on cutter
blade.
4) Remove all accumulated shavings and debris
from inside the front gripper where the ball
bearing is inserted. The part can be pulled back
and out of the tool head slot.
5) Lubricate ball bearing after cleaning.
6) To re-install cutter blade, use alignment pins and
install the four M4 screws with blue Loctite.

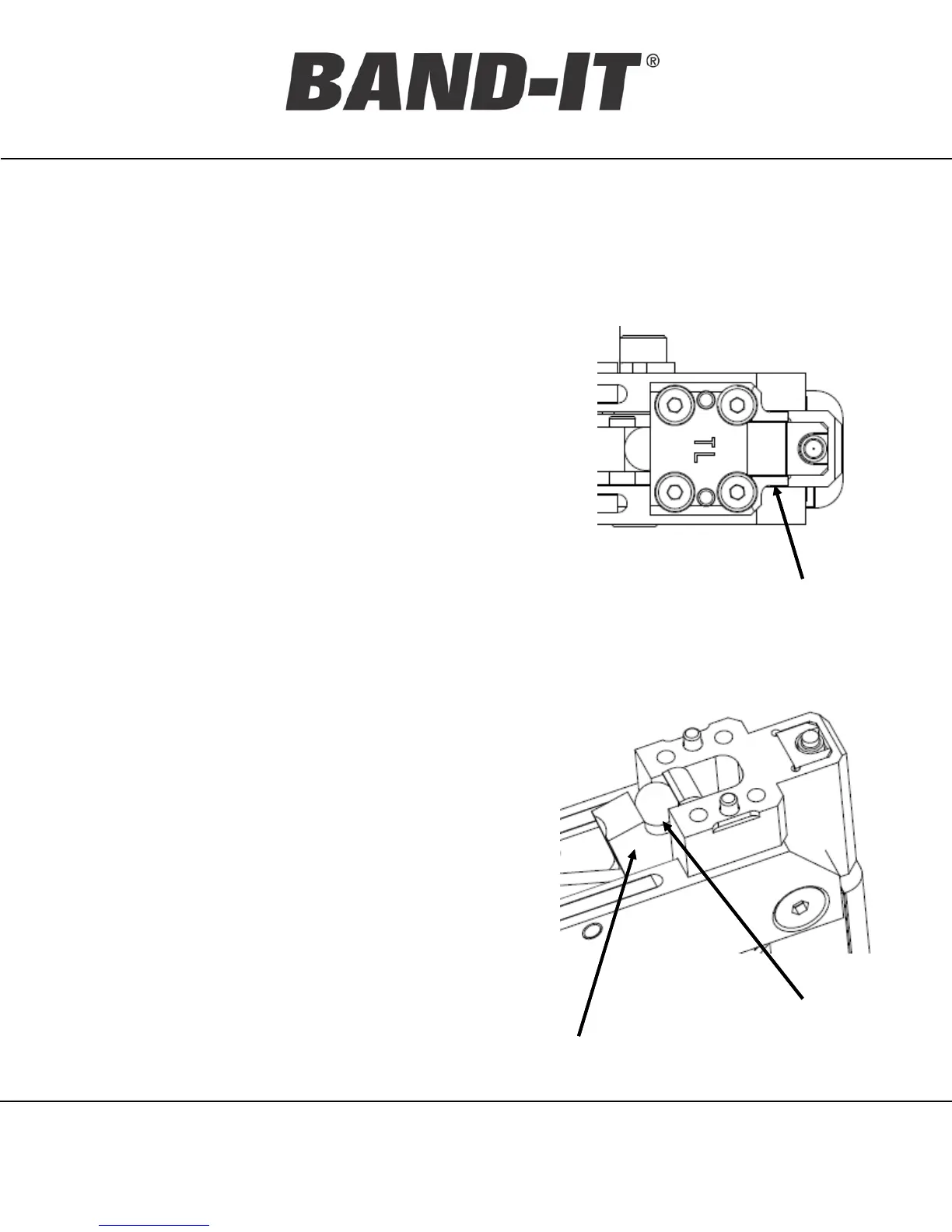

Cutter Blade
Front Gripper
Ball
Bearing
