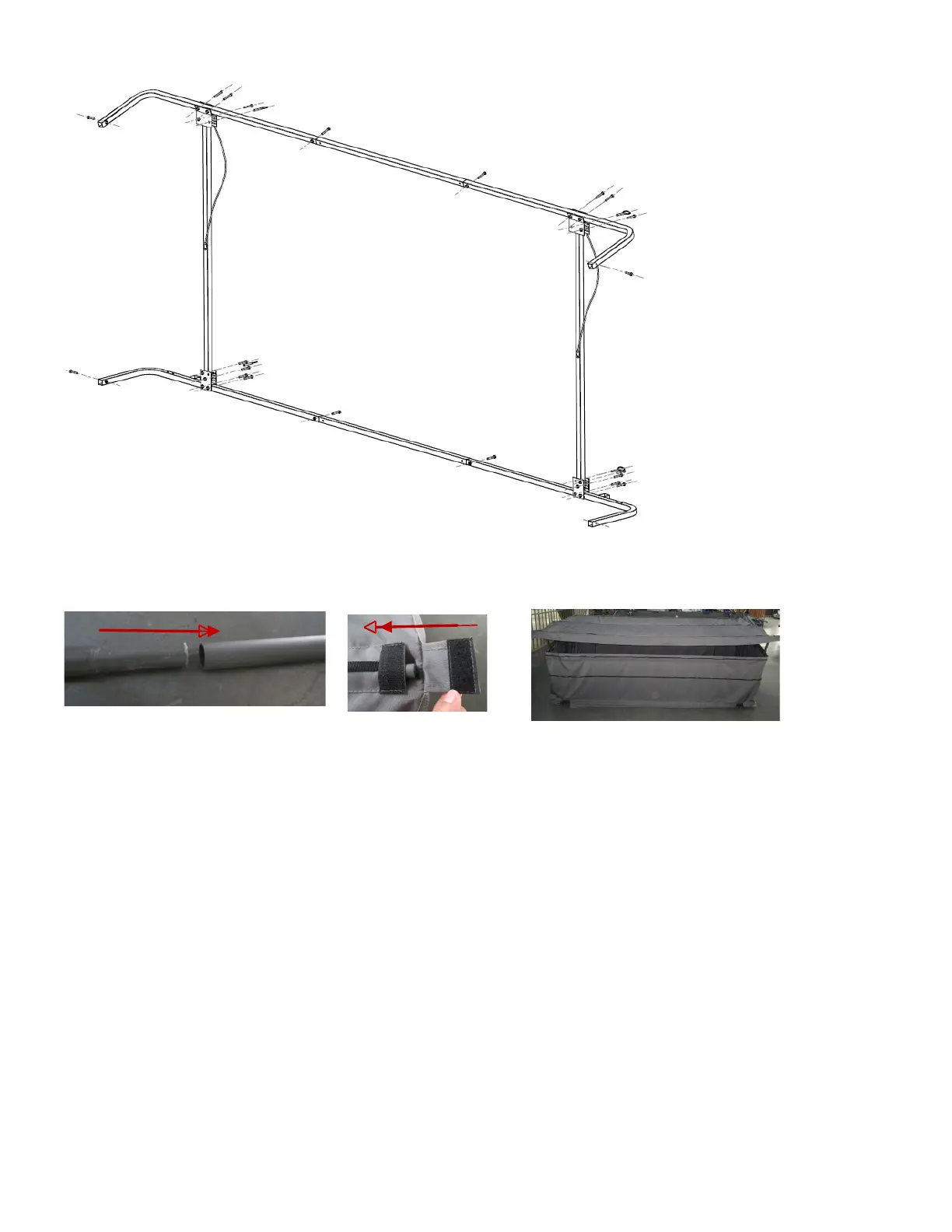

Step 12
Install Roof Round Connect Frame(K) to Roof Round Frame(J) on both side with push buttons, slide the Roof frame
section to the Sleeve of the Main Cover(M) and cover the sleeve with Velcro. Repeat and install with another section.
Step 13
Congratulations, your Axe Combo Blind is now assembled and ready to hunt – as a superior boat blind or an
unparalleled shore blind.
If you intend to use your blind primarily on a boat, Banded recommends you secure it to your boat with the provided
threaded rivnut, and bolts. Securing your boat this way will afford safe transport and will significantly improve the
function of your blind, especially when “popping it up and down” from hunting mode to transport mode and vice-versa.
To secure the blind to a boat with the provided threaded rivnut, simply:
1) Place the fully assembled blind in the boat and situate it however you desire. In a typical “jon-boat”, the blind
will span the distance from the front deck of the boat to the back bench.
2) After positioning the blind where desired, choose at least three points (four points are recommended) where
the bottom frame of the blind makes contact with the boat (again, typically this will be two points on the front
deck and two points on the back bench of the boat).
3) At chosen contact points, drill through the bottom frame (this will be easier to accomplish if the blind is “popped
up” in hunting position instead of transport position) with a 11/32” drill bit.
4) Next, remove the Axe Blind from the boat and install the threaded rivnut:
a. Place a threaded rivnut onto the setting tool bolt.
b. Insert the threaded rivnut into a 11/32” hole.
