A (4pcs) - Bottom Corner Frames (With welded ground stake bracket)
B (4pcs) – Front and Back Connect Frames
C (4pcs) - Top Corner Frames
D (2pcs) - Bottom Side Connect Frames
E (2pcs) - Top Side Connect Frames
F (2sets) - Back Vertical Frame Kits (Include bungee code, Aluminum hinges, Steel sleeve and Quick
Pin sets)
G (2sets) - Front Vertical Frame Kits (Include bungee code, Aluminum hinges, Steel sleeve and Quick
Pin sets)
H (2pcs) - Roof Frame Kits (Screwed with "U" hinge on one end)
I (2pcs) - Roof Support Frame Kits (Screwed with "U" hinge on each end)
J (4pcs) - Roof Round Frames (* for EXL version is 6pcs)
K (2pcs) - Roof Round Connect Frames (* for EXL version is 2pcs)
L (1set) - Hardware Package (Include (16) M6x30mm bolt sets, (4) Boat mounting screw set, (28) M6x37mm bolt sets,
(1) Open-end wrench, (1) Allen wrench)
M (1pc) - Olive Blind Cover
N (1pc) - Olive Front Panel

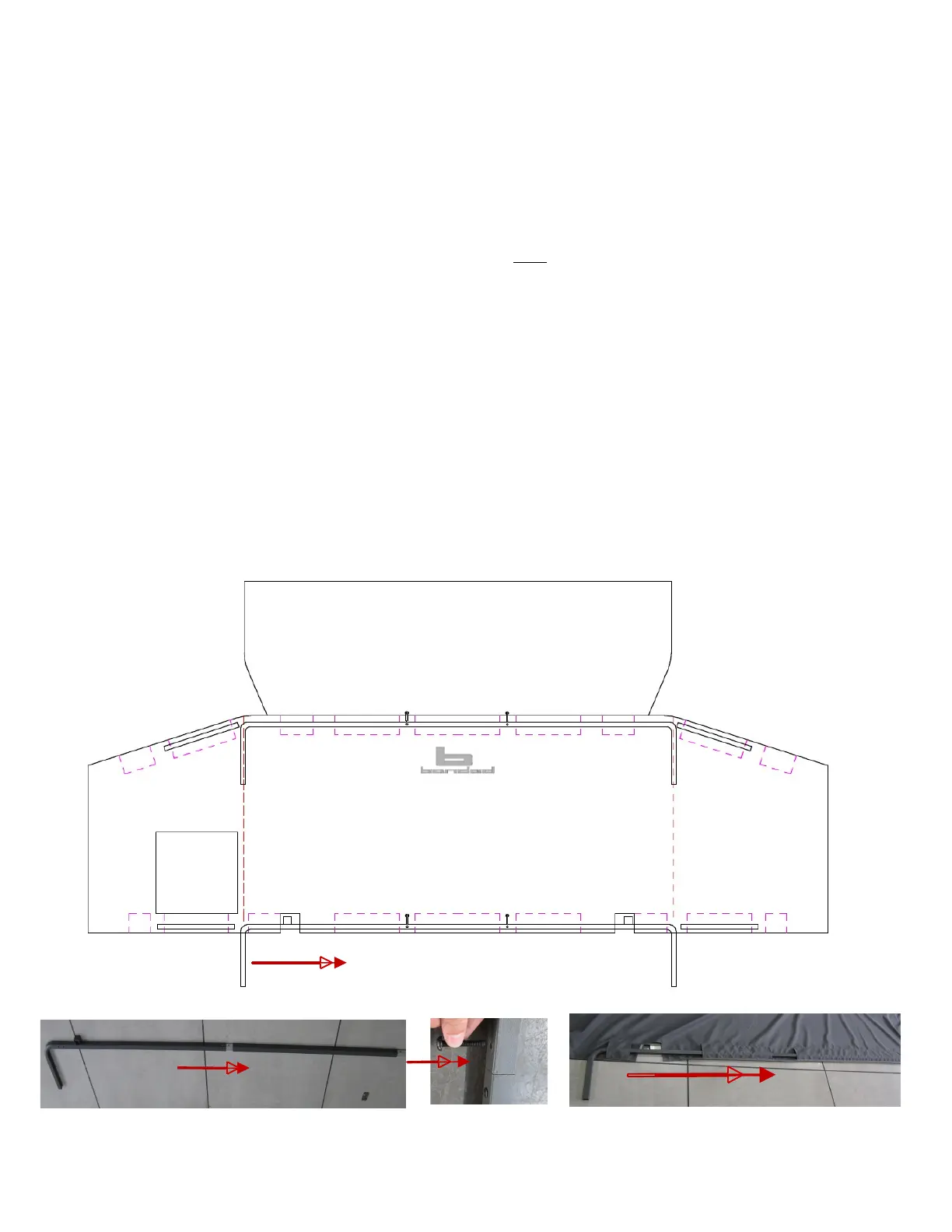

Step1: Layout the blind cover as drawing N (Front Panel) and M (Blind Main Cover).
Step 2
Connect Bottom Corner Frame(A) to Connect Frame(B) and screw with 1 Bolt Set(M6x30mm). Slide into the bottom
of Main Cover(M) from the left side.
Important: All bolts facing inward so that all nuts are inside of frame.
