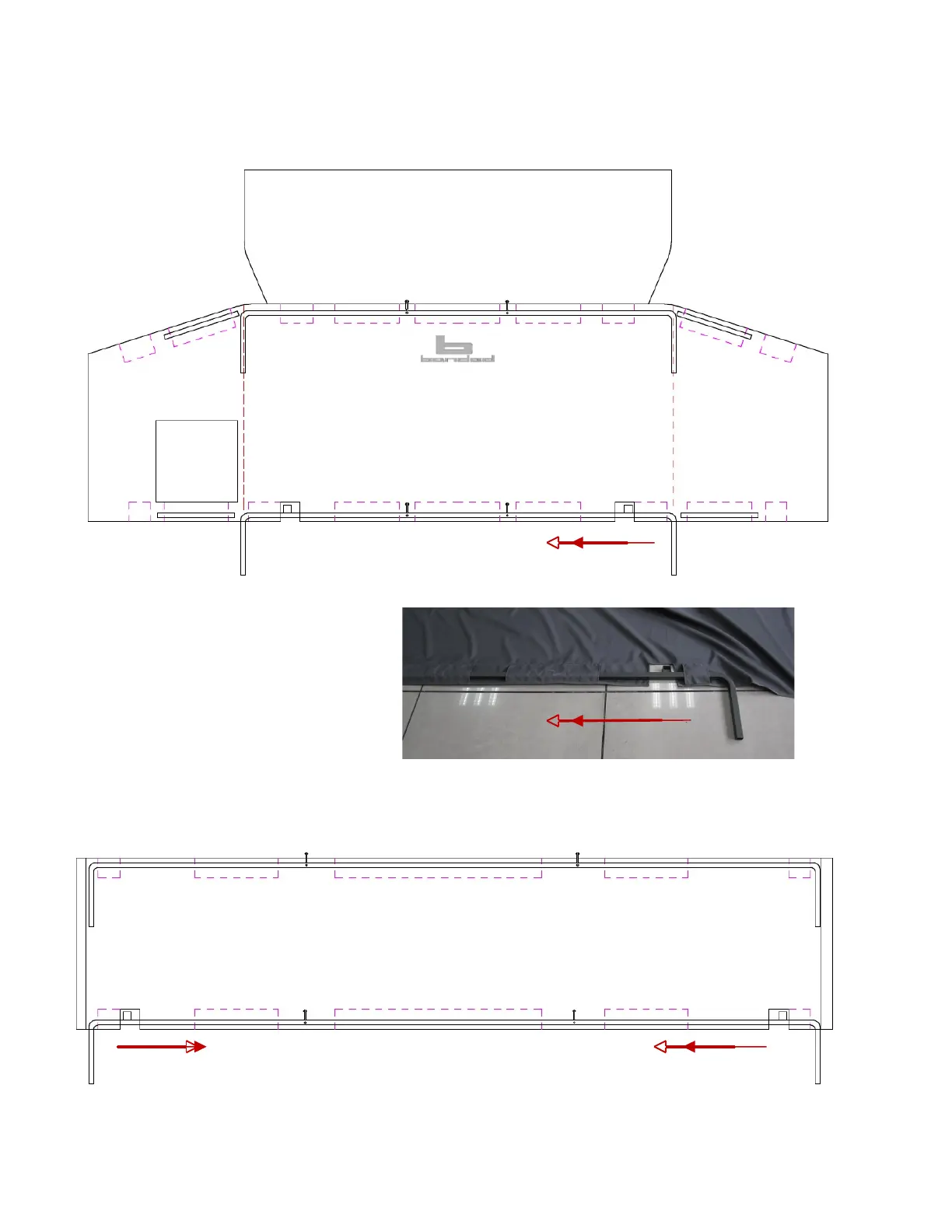

Step 3

Slide Bottom Corner Frame(A) into the bottom of Main Cover(M) from the right side and screw it to Connect

Frame(B) with 1 Bolt Set (M6x30mm).

Step 4

Repeat Step 2&3 to install the Bottom Corner Frame(A) & Connect Frame(B) to the bottom of the Front Panel(N)
