Fasten connector
to a fixed point
EXTERNAL MIC
(L - R)
WARNING!
Gently handle the wires during the installation; pressing or forced bending of the wires can cause
internal damage and subsequent malfunction.
Avoid placing the wires near from noise sources such as alternators, high tension wires, etc.
If there are any cables left disconnected, insulate them with tape; disconnected cables making an
undesired contact can cause malfunction.
Do not manipulate the loudspeaker terminals.
Red
Black
White
EXTERNAL
LOUDSPEAKER
BATTERY
+ 12 V
INTERNAL SPEAKER
(L - R)
DIGITAL
KEYBOARD

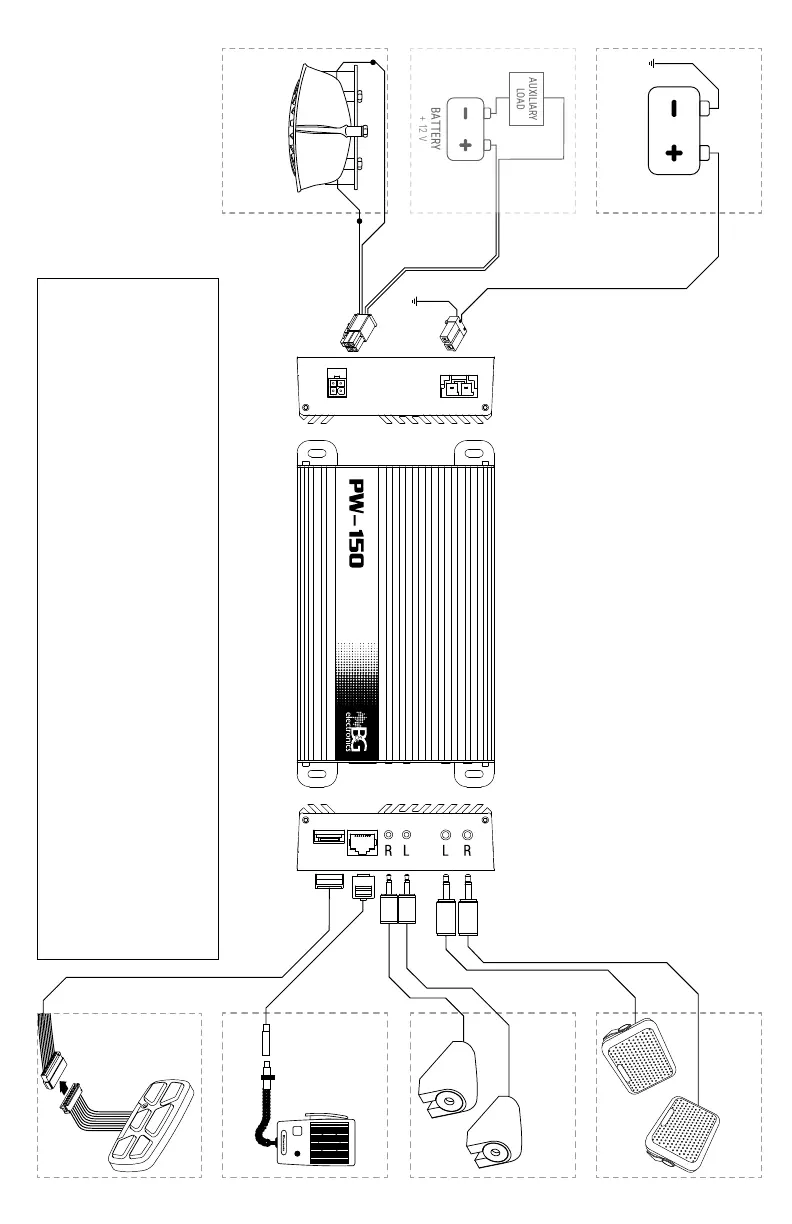

WIRING DIAGRAM
PW-150
HANDHELD MIC
(OPTIONAL)
1
Splice and tape the loudspeaker wires to the output wires (they have no polarity).
AUXILIARY
LOAD
BATTERY
+ 12 V
Grey
1
1
Blue
Brown
Grey
