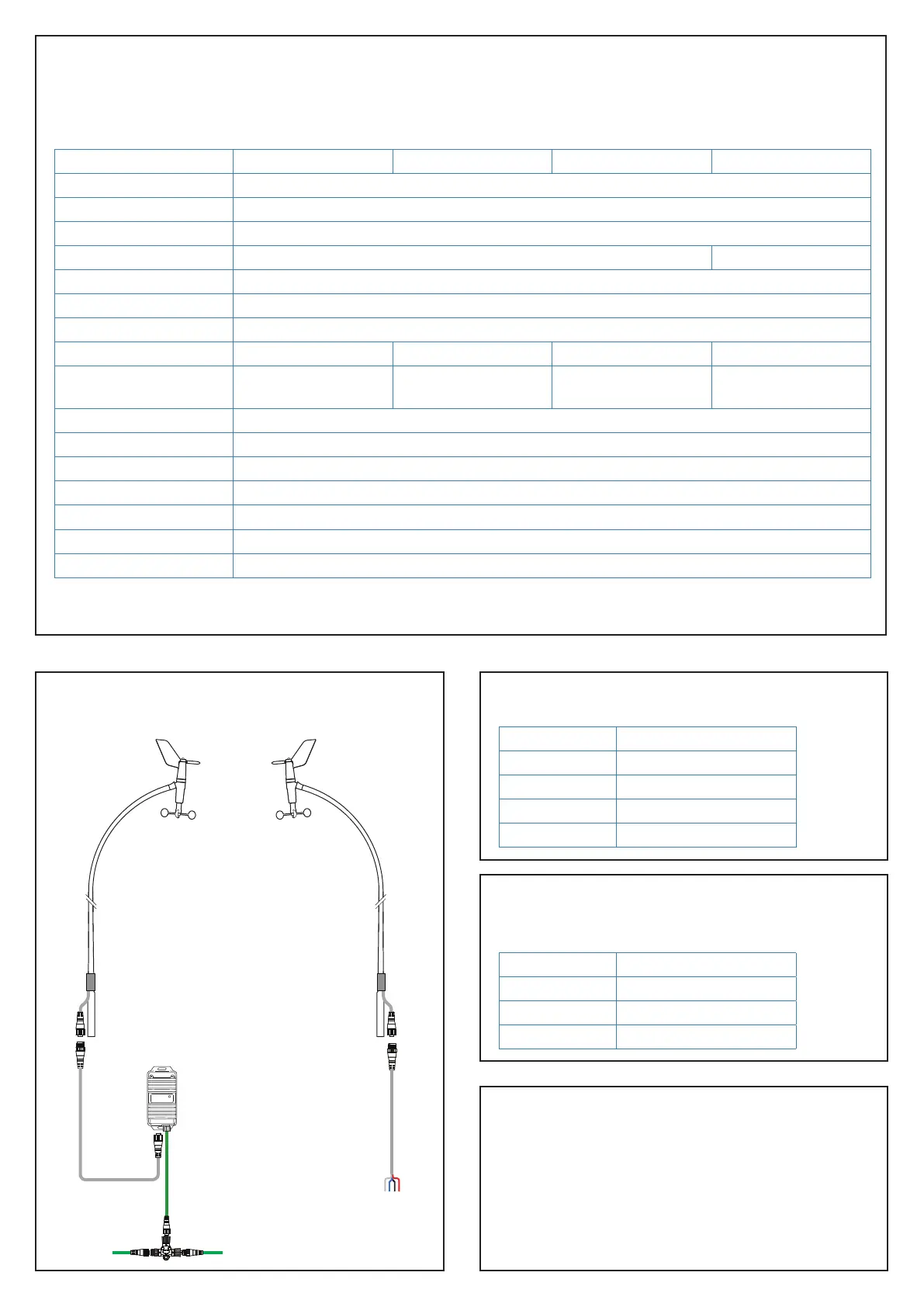

B&G WS700 - Technical Specifications; Performance Specs; Environmental and Electrical; Connectivity and Output

A AB
C
D
Cable color Function
Red + 12 V DC (9 – 16 V DC)
Black DC negative
Blue TX_B
White TX_A
Baud Rate 38400
Data Bits 8
Parity None
Stop Bits 1
Cable details
Serial port setup
Compliance
Wiring examples
A. Mast cable
B. Network interface
C. Micro-C T-Joiner
D. Micro-C backbone
Warning: The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This product complies with:
• The requirements of level 2 devices of the Radiocommunications
(Electromagnetic Compatibility) standard 2017.
• CE under EMC Directive 2014/30/EU
WS710 WS720/720S WS730/730S WS740S
Wind range 0.5-90 knots
Wind speed accuracy +/- 0.2 knots (from 2-80 knots), 0.1 knot resolution
Wind angle accuracy +/- 0.5°
Mounting options Mast top or Mast face bracket (optional) * Custom bracket
Cable options 20, 35, 50 or 80 m (66, 115, 164, 262’)
Supply voltage 12 V DC nominal (via interface or separate supply)
Power consumption 15 mA at 12 V DC / <0.2 W
Weight (without cable) 0.3 kg (0.7 lbs)
0.4 kg (0.9 lbs) /
0.5 kg (1.1 lbs)
0.5 kg (1.1 lbs) 0.6 kg (1.3 lbs)
Water resistance IPx6
Temperature
Operating -15°C to +55°C (5° F to 131° F)
Storage -20°C to +60°C (4°F to 140°F)
Connectivity
NMEA 2000 Via interface (optional)
NMEA 0183 Sensor output: NMEA0183 MWV,R at 10Hz
Technical specications
* The optional Mast face bracket is not suitable for S (Ocean Spec sensor) versions. These require custom bracket.
¼ Note: For the latest updated technical specifications and declarations, refer to the product website on www.bandg.com.
To
NMEA 0183
device
Receiving serial port setup:
